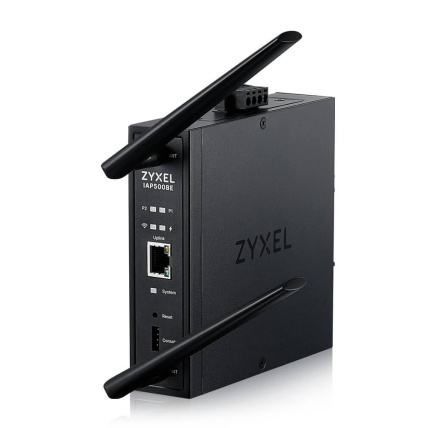

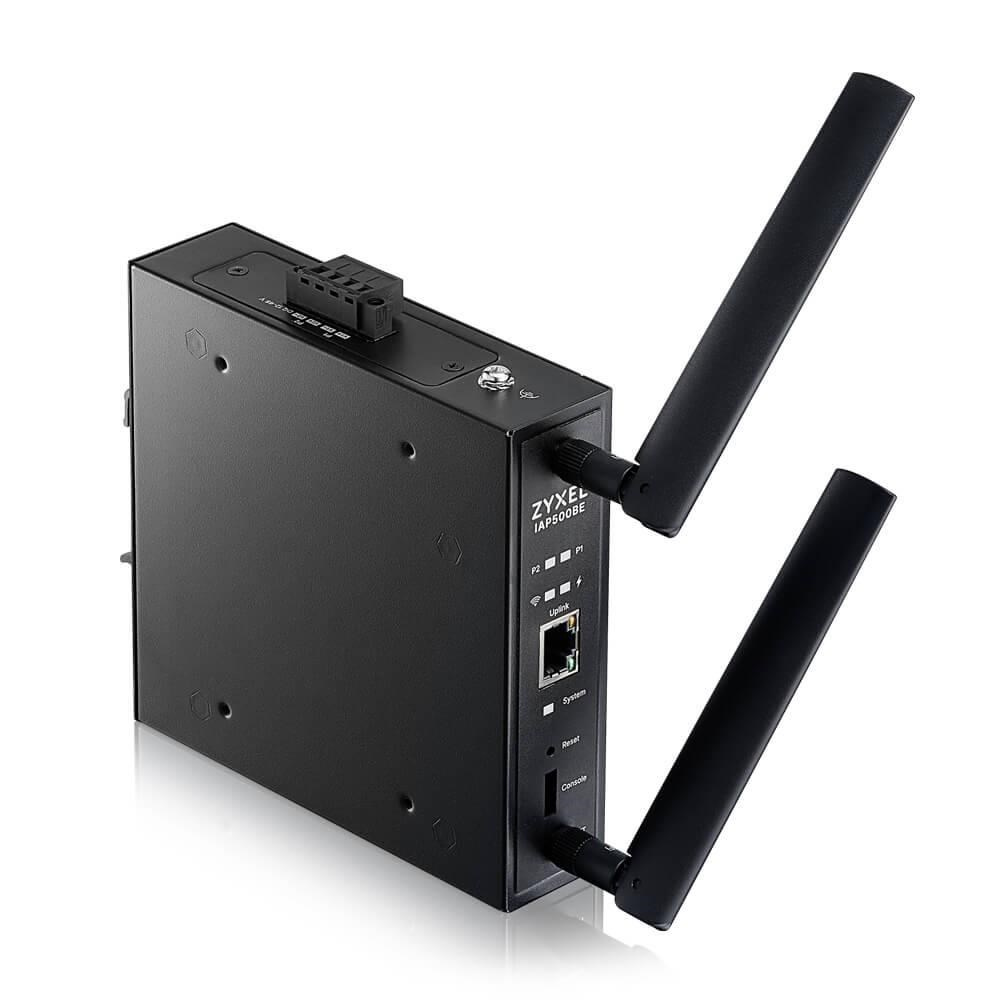

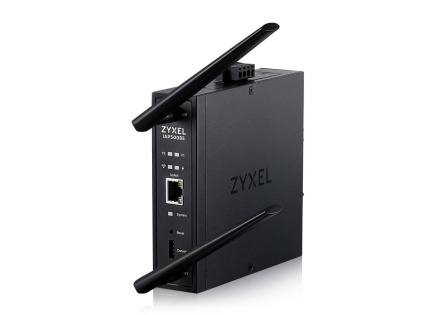

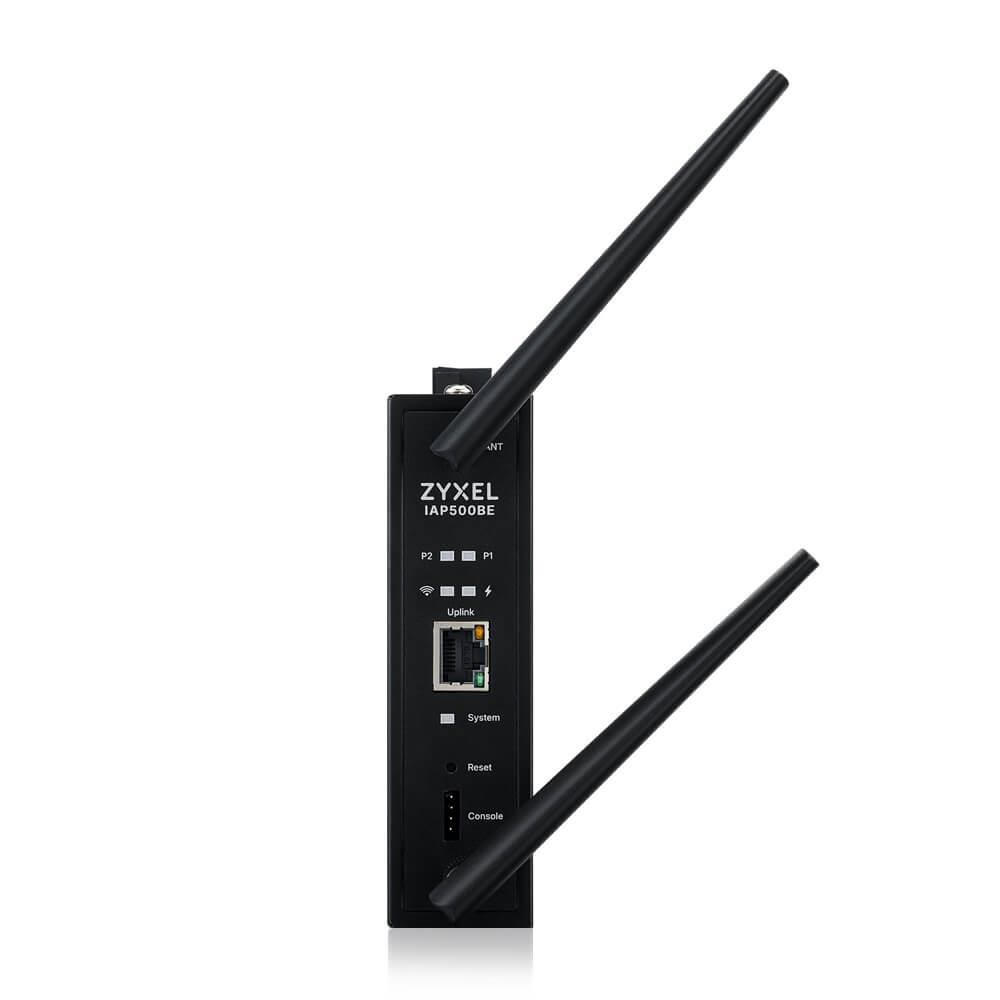

Zyxel IAP500BE, BE5000, Dual Radio 2x2 MU-MIMO, PoE+ (802.3at), Industrial AP, DIN Rail mounted Standalone/Nebula Cloud Managed, DC Power Wireless ________________________________________ Standard IEEE802.11 be/ax/ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4GHz: 688Mbps 5GHz: 4324Mbps Frequency band 2.4GHz: USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5GHz: USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Bandwidth 20-, 40- ,80-, 160- and 240-MHz Conducted typical transmit output power*1 US (2.4GHz/5GHz): 25/26dBm EU (2.4GHz/5GHz): 16/26dBm RF Design ________________________________________ Antenna type External Antenna Antenna gain 2.4GHz: 2 dBi, 2x2:2SS 5GHz: 3 dBi, 2x2:2SS Minimum receive sensitivity Min. Rx sensitivity up to -99 dBm WLAN Features ________________________________________ Band steering Yes WDS/Smart Mesh*2 Yes Wireless Bridge Yes Fast roaming Pre-authentication, PMK caching and 802.11r/k/v DCS Yes Load balancing Yes Advanced cellular coexistence Yes Security ________________________________________ Encryption WEP WPA WPA2 WPA3 Authentication IEEE 802.1X/ RADIUS authentication Access management L2-isolation MAC filtering Rogue AP detection Networking ________________________________________ IPv6 Yes VLANs Yes WMM Yes U-APSD Yes Management ________________________________________ Operating mode Nebula cloud-managed Controller-managed Standalone Web UI/CLI Yes SNMP Yes Physical Specifications ________________________________________ Item Dimensions (WxDxH)(mm/in.) 125 x 130 x 35 / 4.92 x 5.12 x 1.38 (without Antenna) Weight (g/lb.) 646 / 1.42 Packing Dimensions (WxDxH)(mm/in.) 160 x 180 x 50 / 6.30 x 7.09 x 1.96 Weight (g/lb.) 864 / 1.90 Included accessories Din rail mount Two 2.4GHz/5GHz detachable antennas MTBF (hr) 631,165 Physical Interfaces ________________________________________ Ethernet port 1 x 1/2.5GbE LAN Power PoE (802.3at): power draw 24W DC input: 12V-48V redundant dual input PoE modes IEEE 802.3af: Not supported IEEE 802.3at: Unrestricted IEEE 802.3bt: Unrestricted Environmental Specifications ________________________________________ Operating Temperature -25°C to 65°C/-13°F to 149°F Humidity 10% to 90% (non-condensing) Storage Temperature -40°C to 70°C / -40°F to 158°F Humidity 10% to 90% (non-condensing) Certifications ________________________________________ Radio FCC Part 15C FCC Part 15E FCC Part 2.1091 ETSI EN 300 328 EN 301 893 Draft EN 303 687 EN 50385 EN 50665 EN IEC 62311 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55032 EN55035 EN61000-3-2/-3 EN60601-1-2 BSMI CNS15936 Safety EN 62368-1 IEC 62368-1 BSMI CNS15598-1.
