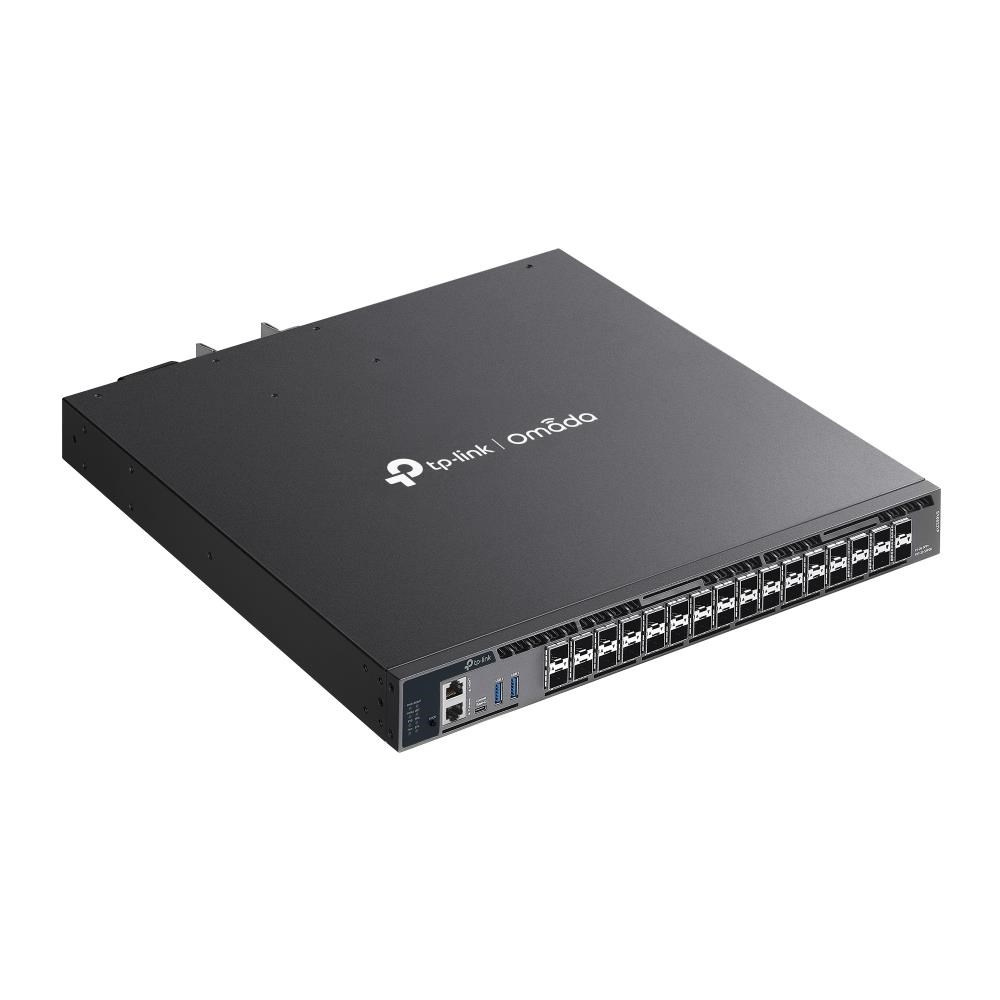

TP-Link OMADA switch SX6632YF

26portový 10G stohovatelný L3 řízený agregační switch se 6x 25G sloty

• 26× 10G SFP+ sloty a 6× 25G SFP28 sloty
• Přepínací kapacita 820 Gbps
• Fyzické stohování pro vestavěnou redundanci a výkon
• Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Bezpečnostní strategie: ACL, Port Security, DoS Defend, 802.1X
• Vysoce dostupné se dvěma napájecími zdroji*, VRRP a ERPS
• Centralizovaná správa cloudu prostřednictvím řadiče Omada SDN
• Samostatná správa přes web, CLI, SNMP a RMON

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/managed-switch/sx6632yf/#specifications

Technické specifikace

*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
• Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

HARDWARE FEATURES
Interface	• 6× 10/25G SFP28 Slots • 26× 10G SFP+ Slots • 2× USB 3.0 Ports • 1× RJ45 Console Port • 1× USB Type C Console Port • 1× RJ45 Management Port
Fan Quantity	Four field-replaceable and hot-swappable fans
Physical Security Lock	?
Power Supply	Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)
Power Consumption	86.7 W (110 V/60 Hz)
Dimensions ( W x D x H )	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting	Rack Mountable
Max Heat Dissipation	295.85 BTU/hr (110 V/60 Hz)
PERFORMANCE
Switching Capacity	820 Gbps
Stacking	• Stacking Number: 8 • Stacking Port: 25G SFP28 • Stack Bandwidth: Up to 300 Gbps (6 stack ports)
Packet Forwarding Rate	610.1 Mpps
MAC Address Table	128 K
Packet Buffer Memory	8 MB
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Strom Control • Voice VLAN • User-Defined OUI
L3 Features	• Routing IP Interfaces - Static Routing - Host Route Table - RIP v1/v2 - RIPng - OSPFv2/v3 - VRRP - ECMP - ARP Proxy • DHCP - DHCP Server - DHCP Relay - DHCPv6 Relay - DHCP Snooping - DHCPv6 Snooping • Multicast - Multicast Table - IGMP v1/v2/v3 - Static Multicast Routing
L2 and L2+ Features	• Switching - Port Mirroring(SPAN) - RSPAN - Loopback Detection - Traffic Monitor • Trunking - Static LAG - LACP 802.3ad • Mac Address - MAC Address Table - Static MAC - Dynamic MAC Address - Filtering MAC Address - MAC Flapping • STP - STP 802.1d - RSTP 802.1w - MSTP 802.1s - Loop/Root/TC Protect - BPDU Protect/Filtering • ERPS • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast IP - Multicast Filtering
Advanced Features	• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†
VLAN	• IEEE 802.1q Tag VLAN • MAC VLAN • Protocol VLAN • VLAN VPN(QinQ) • Private VLAN • GARP/GVRP • Voice VLAN • Multicast VLAN • Management VLAN
Security	• Access Security - Port/MAC/IP-based Access Control - SSL - SSH • Port Security • Port Isolation • CPU-Deffend • Time Range - Time Range Defination - Periodic Time Range - Absolute Time Range - Time Holiday • ACL - Entries - L2/L3/L4 ACL - ACL Action - ACL over VLAN - ACL over Port • IP-MAC Binding - IP+MAC+PORT+VID Binding - Manual Binding - ARP Scanning - DHCP Filter - DHCPv6 Filter - DHCP Option 82 • ARP Inspection (Dynamic ARP Inspection) • IP Source Guard • IPv6 Source Guard • ND Neighbor Discovery/ ND Snooping/ ND Filtering • DoS Defend • Authentication, Authorization & Accounting (AAA) - 802.1X Port Authentication - RADIUS Authentication - RADIUS Accounting - TACACS+ Authentication
MANAGEMENT
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log
OTHERS
Package Contents	• SX6632YF Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

.
