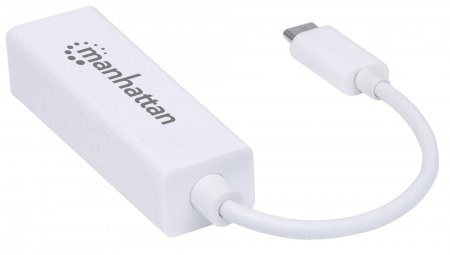

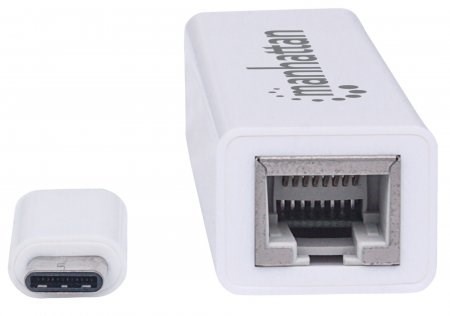

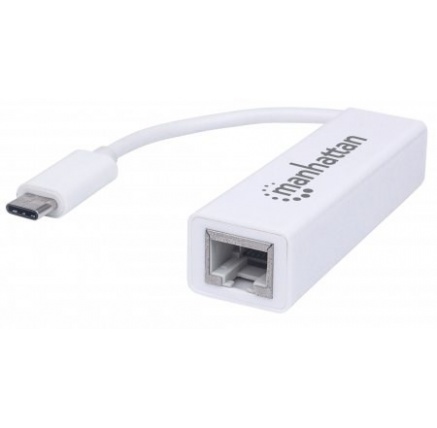

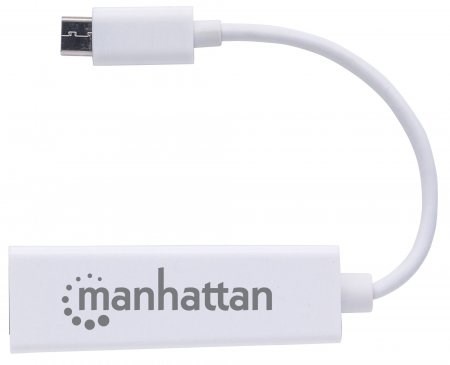

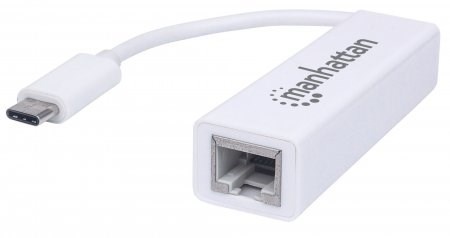

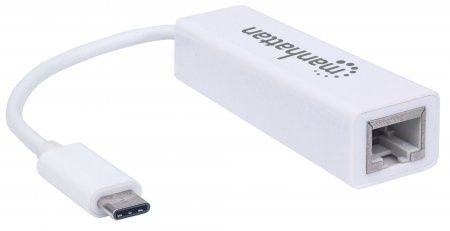

Type-C to Gigabit Network Adapter

SuperSpeed USB 3.1 Gen 1 (5 Gbps); 10/100/1000 Mbps Gigabit Ethernet

Model Number: 507585

The Manhattan USB-C to Gigabit Network Adapter is a compact, high-performance network adapter that allows you to upgrade your desktop or notebook computer to operate at 10/100/1000 Mbps speeds on the LAN.

Type-C Connectivity
USB Type-C, the new, tiny physical connector, is already widely used in new Ultrabooks, Chromebooks and the 2015 Apple MacBook. It's projected to push full force into the mainstream in 2017. Its biggest advantage is the reversible design. Plug in the connector with either side facing up and you will never risk damaging the USB port again. USB Type-C is here to stay, and the Manhattan Type-C to Gigabit Network Adapter is the perfect companion for your Type-C-enabled devices.

Fast and Frugal
The Manhattan USB-C to Gigabit Network Adapter is equipped with a fully auto-sensing Gigabit LAN port capable of delivering a peak performance of 2 Gbps in full-duplex mode. It delivers exceptional performance for everyone who requires an ultra-fast and solid network connection. The latest in power-saving technology ensures the hub does not drain the battery of your computer in the process.

Auto-Negotiation
The USB-C Gigabit Adapter will automatically detect the network speed that the LAN switch port is set to and run at the same speed. The adapter supports 10Base-T Ethernet, 100Base-TX and 1000Base-T Gigabit Ethernet.

Full Duplex
When running in full duplex mode, the USB-C to Gigabit Ethernet Adapter connects at the following link speeds: 20 Mbps (10Base-T Ethernet), 200 Mbps (100Base-TX Fast Ethernet) and 2 Gbps (1000Base-T Gigabit Ethernet).

Portable Design
The Manhattan USB-C to Gigabit Network Adapter is compact and can be easily used from one computer to another or transferred in your notebook case as you travel. It doesnt take up a lot of space or add clutter to your work area.

Your device has a Type-C port? Then the Manhattan USB-C to Gigabit Network Adapter is for you!
From Windows®-based Ultrabooks (like the Dell XPS or Acer® Aspire series) to Chromebooks, and Apple Macbooks® to laptops and desktop PCs, as long as your device features a standard USB Type-C connector, you are good to go.

Features:

Adds a high-speed Gigabit network connection for notebooks, MacBook® and Chromebook Pixel with a USB Type-C connector
One Gigabit Ethernet port (RJ45) supports up to 2 Gbps full-duplex transfer speed
Upgrade your notebook or desktop computer to full gigabit speeds
Works with Ultrabooks, laptops and PCs running Windows 7, Windows 8, Windows 8.1 or Windows 10
Compatible with Apple MacBook with USB-C port (driver download available)
Energy-saving Energy Efficient Ethernet (IEEE 802.3az) technology
One 1000Base-T RJ45 Gigabit Ethernet port with Auto MDI-X (auto uplink) support
Supports jumbo frames up to 4 kBytes
Wake-On-LAN (WOL) support
Compliant with the USB 3.1 Gen 1 specification and backward compatible to USB 2.0 and USB 1.1 devices
Three-Year Warranty

Specifications:

Standards
USB Specification version 3.1 Gen 1 (5 Gbps)
USB Specification version 3.0
USB Specification version 2.0
USB Specification version 1.1
USB Specification version 1.0
IEEE 802.1p (Traffic Prioritization)
IEEE 802.1q (VLAN Tagging)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3az (Energy Efficient Ethernet EEE)
IEEE 802.3u (100Base-TX Fast Ethernet)

General
USB Type-C connector
RJ45 connector
Cable length: 13 cm (5.1 in.)
Certifications: FCC Class B, CE, RoHS

Power
USB bus powered
Operating mode: 420 mA
Suspend mode : 38 mA

Environmental
Dimensions: 68 (L) x 22 (W) x 16 (H) [mm] / 2.68 (L) x 0.87 (W) x 0.63 (H) [in]
Weight: 145 g (5.11 oz.)
Operating temperature: 0 - 70°C
Storage temperature: -10 - 80°C
Storage humidity: 5 - 90%, non-condensing

System Requirements
Available USB-C or Thunderbolt 3 port
Supported Operating Systems:
- Windows XP, Windows Vista, Windows 7, Windows 8/8.1 and Windows 10
- Apple Mac OS 10.6 - 10.12
- Google Chrome OS
- No support for Windows RT

Package Contents
Type-C to Gigabit Ethernet Network Adapter
Setup CD
Instructions
