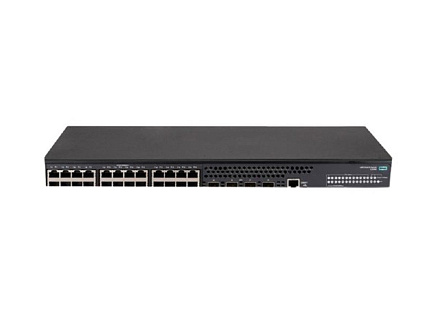

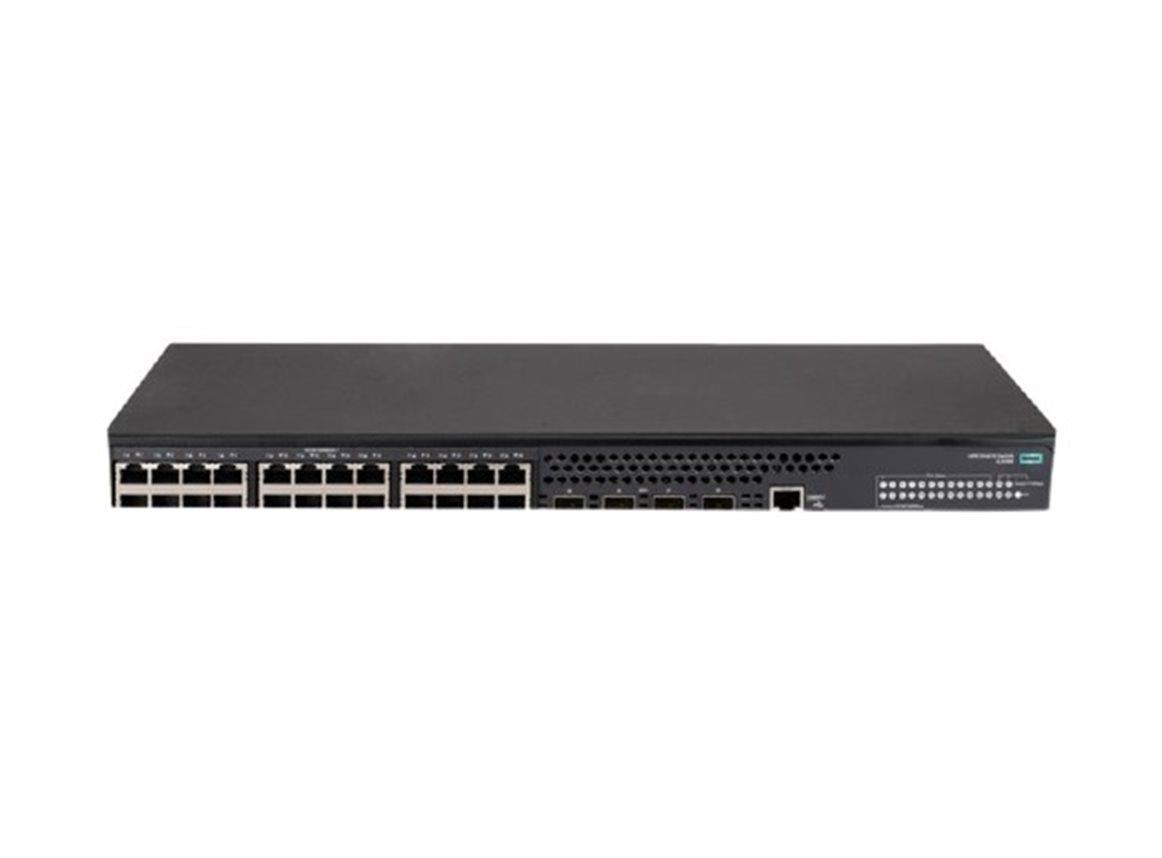

HPE FlexNetwork 5140 24G 4SFP+ EI Switch (JL828A)

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 6.3(d) x 1.72(h) in (44 x 16 x 4.36 cm) (1U height)

Weight

5.5 lb (2.5 kg)

Memory and processor

512 MB SDRAM, 256 MB flash

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)

Performance

IPv6 Ready Certified

1000 Mb Latency

< 5 µs

10 Gbps Latency

< 3 µs

Throughput

95 Mpps

Routing/Switching capacity

128 Gbps

Routing table size

1024 entries

MAC address table size

16384 entries

Environment

Operating temperature

23°F to 113°F (-5°C to 45°C)

Operating relative humidity

10% to 90%, noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

5% to 95%, noncondensing

Acoustic

High-speed fan: 36.8 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

64/88 BTU/hr (67.52/92.84 kJ/hr)

Voltage

100 - 240 VAC, rated

Current

2 A

Maximum power rating

24 W

Idle power

19 W

Notes:

- Idle power is the actual power consumption of the device with no ports connected.

- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance

Emissions

FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993

Immunity

Generic

EN 55024

ESD

EN300 386

Management

IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
