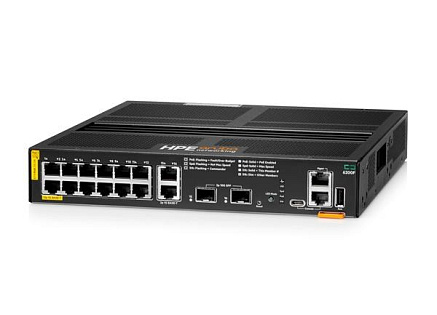

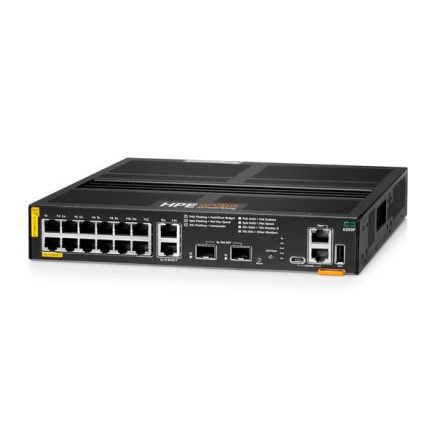

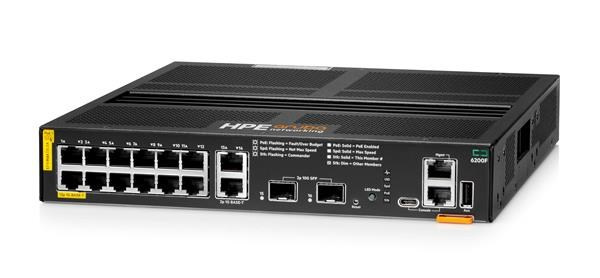

HPE Aruba Networking 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch (R8Q72A)

Description

12x ports

10/100/1000BASE-T Class 4

PoE Ports, supporting up to

30W per port

2x 100M/1G ports

2x 1G/10G SFP ports; PHYless

Supports PoE Standards

IEEE 802.3af, 802.3at

1x RJ-45 Console Port

1x USB-C Console Port

1x OOBM

1x USB Type-A Host port

Power supplies

Fixed power supply - Up to 139W of Class 4 PoE power

Fans

Fanless

Physical characteristics

Dimensions

(H) 4.39 cm x

(W) 25.4 cm x

(D) 30.5 cm

(1.73"" x 10.0"" x 12.0"")

Weight

3.24 kg (7.14 lbs)

CPU

Quad Core ARM Cortex^TM A72 @ 1.2 GHz

Memory and Flash

8 GB DDR4

16 GB eMMC

Packet buffer

6 MB packet buffer memory

Performance

Model switching capacity

68 Gbps

Model throughput capacity

Up to 45.1 Mpps

Average latency (LIFO-64-bytes packets)

1 Gbps: 5.9 µSec

10 Gbps: 4.2 µSec

Stack size

8 members (with other

12p 6200F switches only;

No stacking support with

24/48p 6200F or 6200M

switches)

Max. stacking distance

Up to 10 kms with long range transceivers

Stacking Bandwidth

Up to 20Gbps

Switched virtual interfaces (dual stack)

128

IPv4 host table (ARP)

8,192

IPv6 host table (ND)

8,192

IPv4 unicast routes

2,048

IPv6 unicast routes

1,024

MAC table capacity

32,768

IGMP groups

768

MLD groups

768

IPv4/IPv6/MAC ACL entries (ingress)

5,120/1280/5,120

IPv4/IPv6/MAC ACL entries (egress)

2,048/512/2,048

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

up to 5,000 ft; derate 1°C

for every 1,000 ft from

5,000 ft to 10,000 ft.

Operating relative humidity

5% to 95% @ 104°F (40°C) non-condensing

Non-operating temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Non-operating relative humidity

5% to 95% @ 149°F (65°C) non-condensing

Max operating altitude

10,000 feet (3.048 km) Max

Max non-operating altitude

15,000 feet (4.6 km) Max

Acoustics

Sound Power, LWAd = 5.0 Sound Pressure, LpAm (Bystander) = 32.8

Primary airflow

-

Electrical characteristics

Frequency

50Hz/60Hz

AC voltage

90 - 264 VAC, rated

Current

2.6A/1.3A

80plus.org

Certification

-

Maximum heat

dissipation BTU/hr

and kJ/hr

96 BTU/hr

101 kj/hr

Power consumption (230 VAC)

Idle: 23W

100% Traffic Rate: 28W

Lasers

EN 60825-1:2014 / IEC

60825-1:2014 Class 1

Class 1 Laser Products /Laser Klasse 1

(Applicable for accessories -Optical Transceivers only)

Immunity

Generic

CISPR 35: 2016

EN

EN 55035:2017 / A11:2020

ESD

EN 61000-4-2

Radiated

EN 61000-4-3

EFT/Burst

EN 61000-4-4

Surge

EN 61000-4-5

Conducted

EN 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

EN 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

RoHS

EN 63000:2018 / IEC 63000:2018

Mounting and Enclosure

Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. (rackmounting kit included);

horizontal surface mounting; wall mounting Kensington Security Slot
