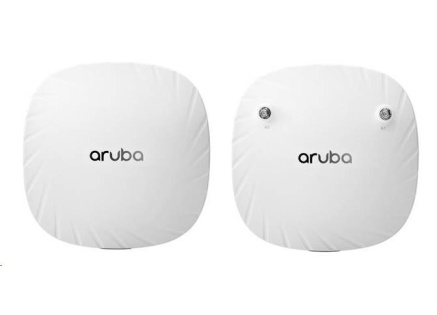

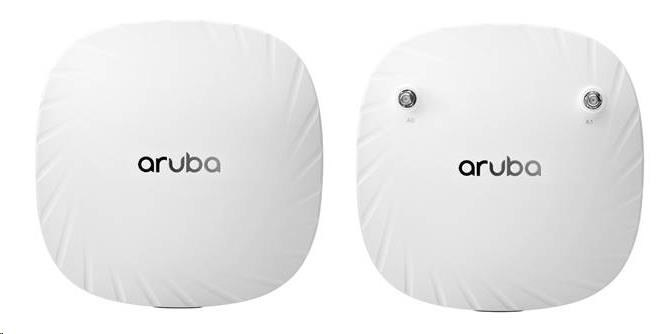

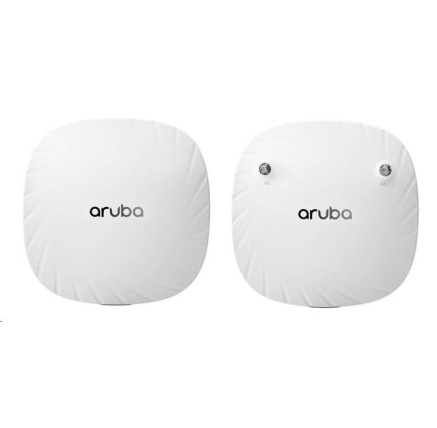

Aruba AP-504 (RW) Dual Radio 2x2:2 802.11ax External Antennas Unified Campus AP

• 1,77 Gbps maximální propustnost
• Zabezpečení WPA3 a rozšířené otevřené zabezpečení
• Vestavěná technologie, která řeší problematické problémy klientů zařízení Wi-Fi 6 a Wi-Fi 5
• OFDMA a MU-MIMO pro zvýšení efektivity pro více uživatelů
• Podpora Bluetooth 5 a Zigbee s podporou IoT

Technické parametry

• Standard: 802.11a/n/ac/ax
• Rychlost: 1774 Mb/s
• Porty: 1 x 10/100/1000 BASE-T
• Použití: Uvnitř
• Antény: Externí
• Odpojitelná anténa: Ano

Odkaz na web výrobce: https://www.arubanetworks.com/assets/ds/DS_AP500Series.pdf

The Aruba 500 series access points, with Wi-Fi 6 (802.11ax) technology and Aruba’s intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.

The 500 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.

The 500 Series also provides differentiated capabilities that include AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.

Additionally, Green AP energy savings are available when Aruba’s AI/ML capabilities are enabled.

Models:AP-504AP-505AP type:Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO5GHz radio:Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously2.4GHz radio:Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with individual 2SS HE40 802.11ax client devices or with two 1SS HE40 802.11ax MU-MIMO capable client devices simultaneouslyMaximum number of associated client devices:Up to 256 associated client devices per radioMaximum number of BSSIDs:16 BSSIDs per radioSupported frequency bands (country-specific restrictions apply):

• 2.400 to 2.4835GHz
• 5.150 to 5.250GHz
• 5.250 to 5.350GHz
• 5.470 to 5.725GHz
• 5.725 to 5.850GHz

Available channels:Dependent on configured regulatory domainSupported radio technologies:

• 802.11b: Direct-sequence spread-spectrum (DSSS)
• 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
• 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units

Supported modulation types:

• 802.11b: BPSK, QPSK, CCK
• 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
• 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
• 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

802.11n high-throughput (HT) support:HT20/40802.11ac very high throughput (VHT) support:VHT20/40/80802.11ax high efficiency (HE) support:HE20/40/80Supported data rates (Mbps):

• 802.11b: 1, 2, 5.5, 11
• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
• 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
• 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
• 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
• 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

802.11n/ac packet aggregation:A-MPDU, A-MSDUTransmit power:Configurable in increments of 0.5 dBmMaximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):2.4 GHz band: +21 dBm (18dBm per chain)5 GHz band: +21 dBm (18 dBm per chain)
