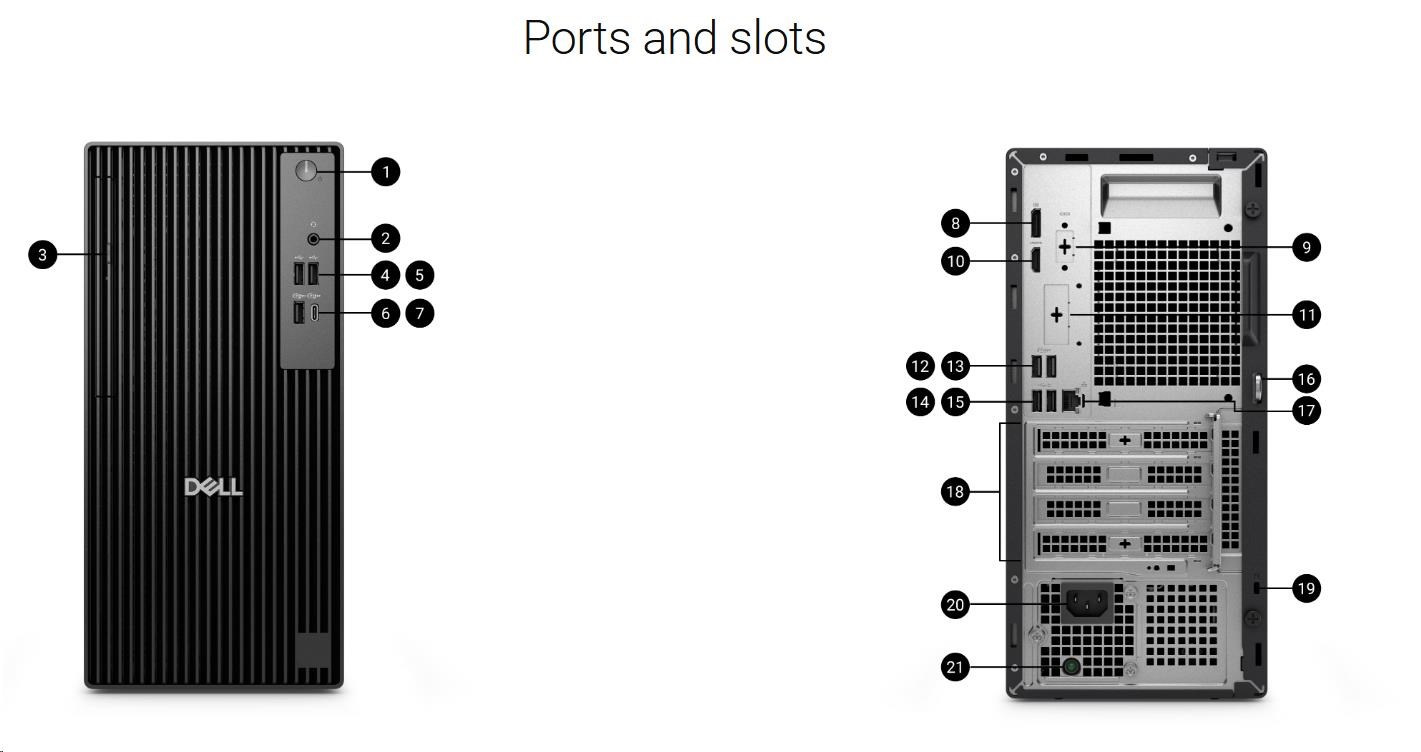

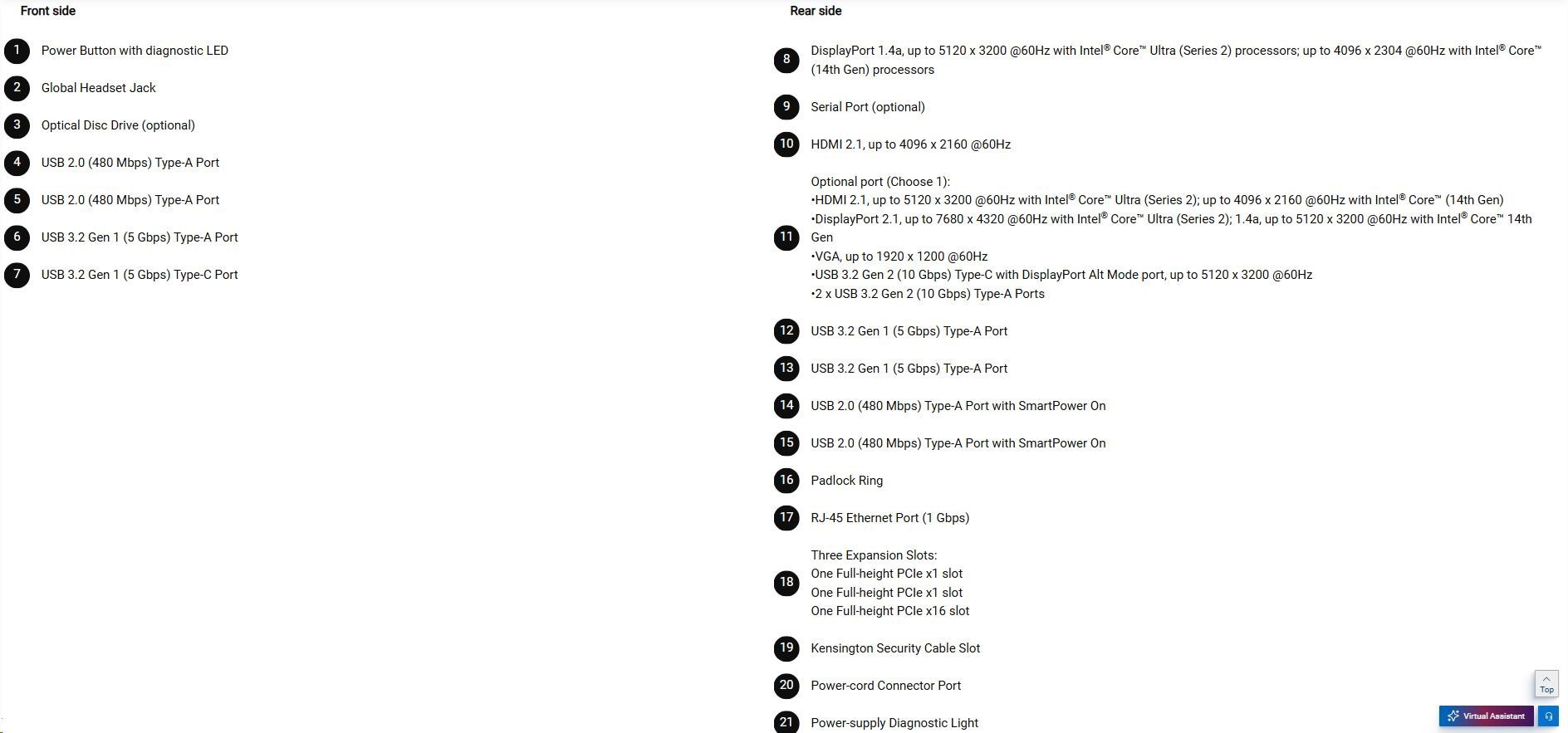

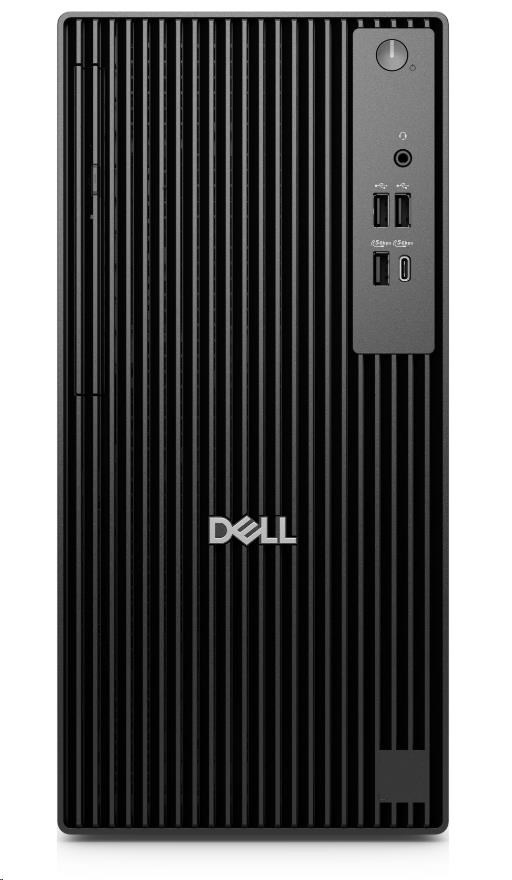

Front side

• Power Button with diagnostic LED
• Global Headset Jack
• Optical Disc Drive (optional)
• USB 2.0 (480 Mbps) Type-A Port
• USB 2.0 (480 Mbps) Type-A Port
• USB 3.2 Gen 1 (5 Gbps) Type-A Port
• USB 3.2 Gen 1 (5 Gbps) Type-C Port

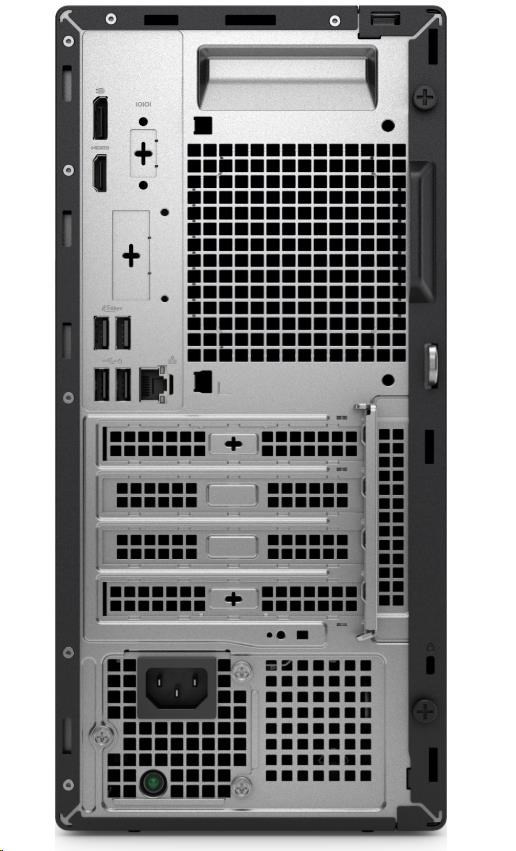

Rear side

• DisplayPort 1.4a, up to 5120 x 3200 @60Hz with Intel^®Core™ Ultra (Series 2)processors; up to 4096 x 2304 @60Hz with Intel^®Core™ (14th Gen)processors
• Serial Port (optional)
• HDMI 2.1, up to 4096 x 2160 @60Hz
• Optional port (Choose 1):
  •HDMI 2.1, up to 5120 x 3200 @60Hz with Intel^®Core™ Ultra (Series 2); up to 4096 x 2160 @60Hz with Intel^®Core™ (14th Gen) •DisplayPort 2.1, up to 7680 x 4320 @60Hz with Intel^®Core™ Ultra (Series 2); 1.4a, up to 5120 x 3200 @60Hz with Intel^®Core™ 14th Gen •VGA, up to 1920 x 1200 @60Hz •USB 3.2 Gen 2 (10 Gbps) Type-C with DisplayPort Alt Mode port, up to 5120 x 3200 @60Hz •2 x USB 3.2 Gen 2 (10 Gbps) Type-A Ports
• USB 3.2 Gen 1 (5 Gbps) Type-A Port
• USB 3.2 Gen 1 (5 Gbps) Type-A Port
• USB 2.0 (480 Mbps) Type-A Port with SmartPower On
• USB 2.0 (480 Mbps) Type-A Port with SmartPower On
• Padlock Ring
• RJ-45 Ethernet Port (1 Gbps)
• Three Expansion Slots:
  One Full-height PCIe x1 slot
  One Full-height PCIe x1 slot
  One Full-height PCIe x16 slot
• Kensington Security Cable Slot
• Power-cord Connector Port
• Power-supply Diagnostic Light

1. Height: 12.77 in. (324.30 mm)
2. Depth: 11.54 in. (293.00 mm)
3. Width: 6.06 in. (154.00 mm)

Starting weight: 12.00 lb (5.44 kg)
