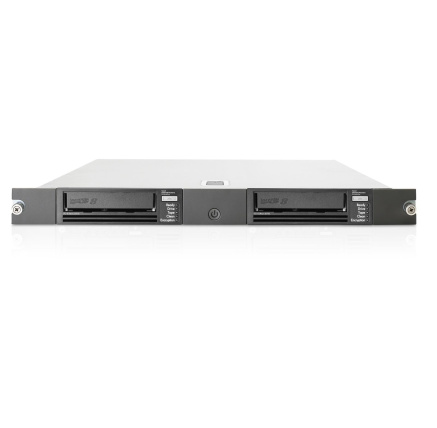

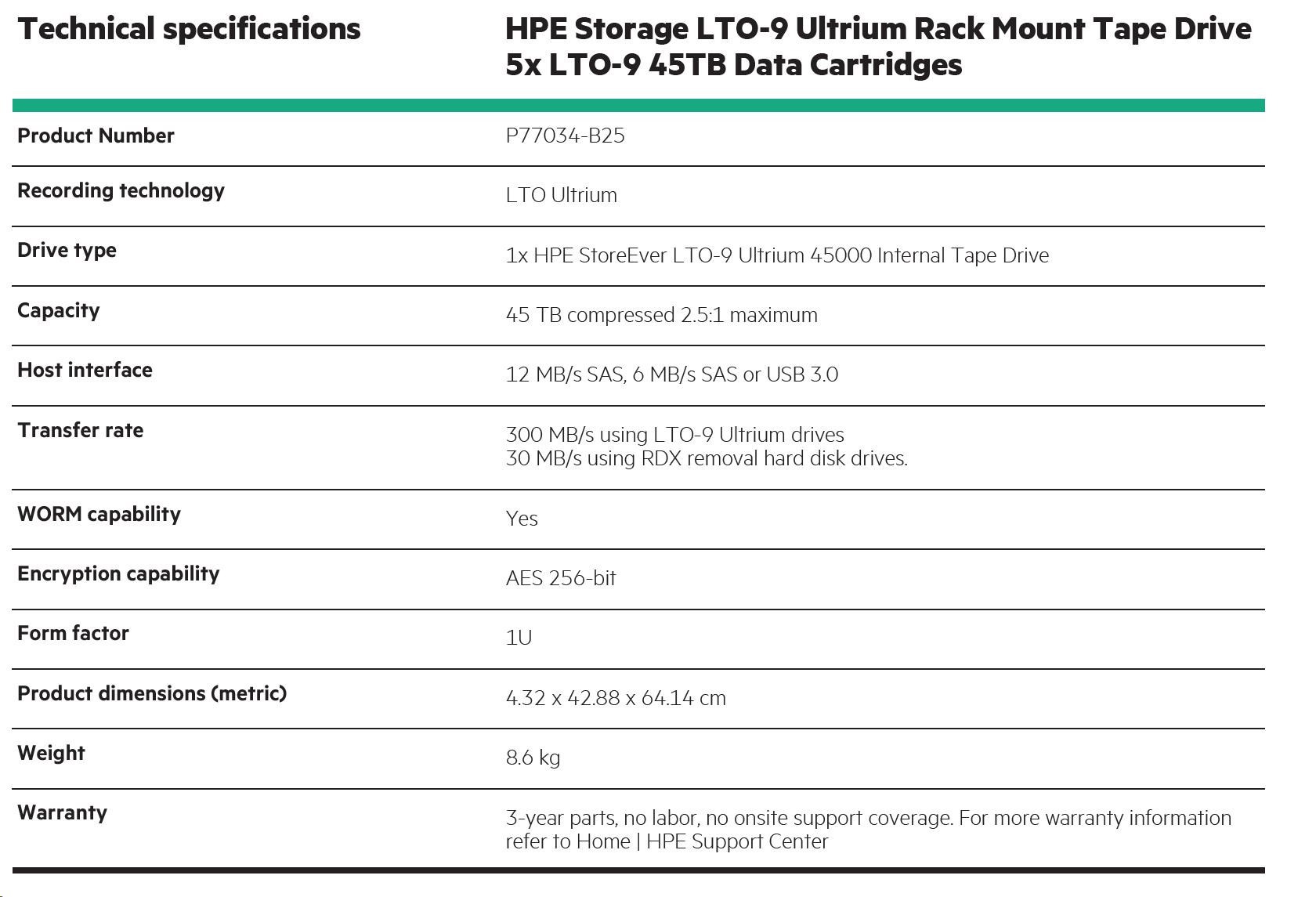

Technical specifications HPE Storage LTO-9 Ultrium Rack Mount Tape Drive 5x LTO-9 45TB Data Cartridges

Product Number P77034-B25

Recording technology LTO Ultrium

Drive type 1x HPE StoreEver LTO-9 Ultrium 45000 Internal Tape Drive

Capacity 45 TB compressed 2.5:1 maximum

Host interface 12 MB/s SAS, 6 MB/s SAS or USB 3.0

Transfer rate 300 MB/s using LTO-9 Ultrium drives 30 MB/s using RDX removal hard disk drives.

WORM capability Yes

Encryption capability AES 256-bit

Form factor 1U

Product dimensions (metric) 4.32 x 42.88 x 64.14 cm Weight 8.6 kg

Warranty 3-year parts, no labor, no onsite support coverage. For more warranty information refer to Home | HPE Support Center

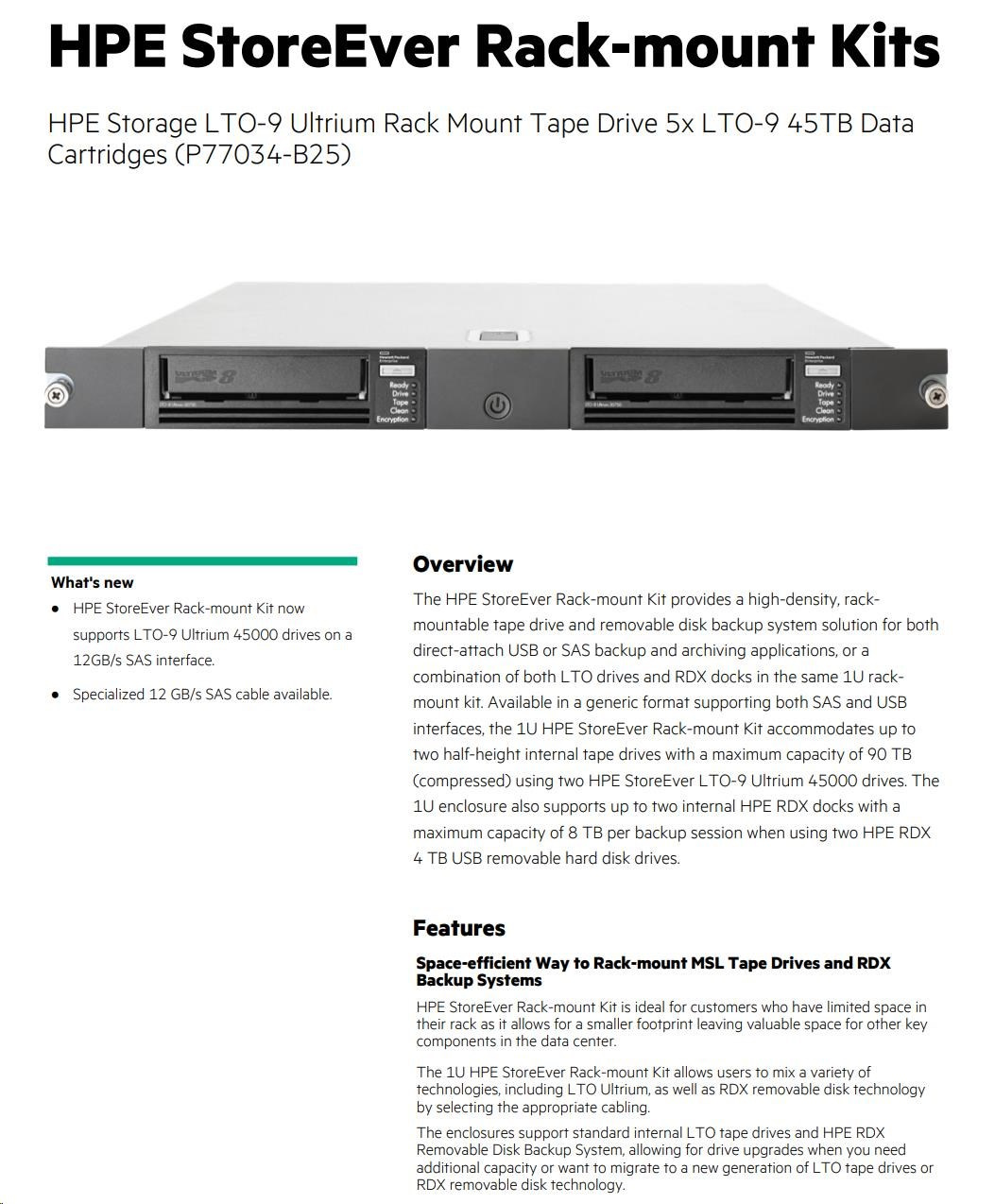

Overview

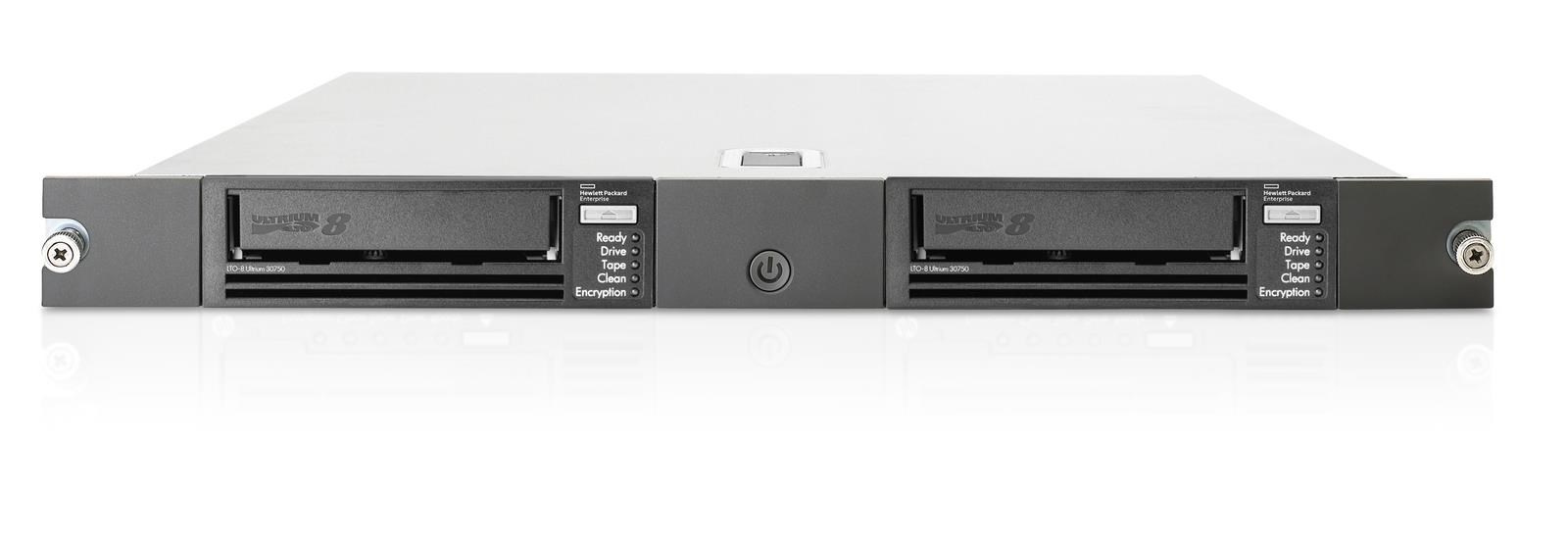

The HPE StoreEver Rack-mount Kit provides a high-density, rackmountable tape drive and removable disk backup system solution for both direct-attach USB or SAS backup and archiving applications, or a combination of both LTO drives and RDX docks in the same 1U rackmount kit. Available in a generic format supporting both SAS and USB interfaces, the 1U HPE StoreEver Rack-mount Kit accommodates up to two half-height internal tape drives with a maximum capacity of 90 TB (compressed) using two HPE StoreEver LTO-9 Ultrium 45000 drives. The 1U enclosure also supports up to two internal HPE RDX docks with a maximum capacity of 8 TB per backup session when using two HPE RDX 4 TB USB removable hard disk drives.

Features

Space-efficient Way to Rack-mount MSL Tape Drives and RDX Backup Systems

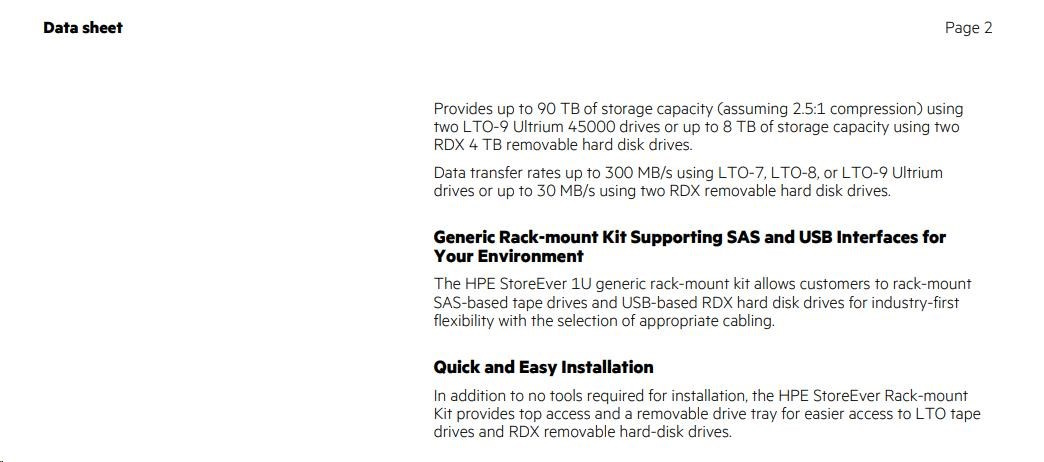

HPE StoreEver Rack-mount Kit is ideal for customers who have limited space in their rack as it allows for a smaller footprint leaving valuable space for other key components in the data center. The 1U HPE StoreEver Rack-mount Kit allows users to mix a variety of technologies, including LTO Ultrium, as well as RDX removable disk technology by selecting the appropriate cabling. The enclosures support standard internal LTO tape drives and HPE RDX Removable Disk Backup System, allowing for drive upgrades when you need additional capacity or want to migrate to a new generation of LTO tape drives or RDX removable disk technology.Data sheet Page 2 Provides up to 90 TB of storage capacity (assuming 2.5:1 compression) using two LTO-9 Ultrium 45000 drives or up to 8 TB of storage capacity using two RDX 4 TB removable hard disk drives. Data transfer rates up to 300 MB/s using LTO-7, LTO-8, or LTO-9 Ultrium drives or up to 30 MB/s using two RDX removable hard disk drives.

Generic Rack-mount Kit

Supporting SAS and USB Interfaces for Your Environment The HPE StoreEver 1U generic rack-mount kit allows customers to rack-mount SAS-based tape drives and USB-based RDX hard disk drives for industry-first flexibility with the selection of appropriate cabling.

Quick and Easy Installation

In addition to no tools required for installation, the HPE StoreEver Rack-mount Kit provides top access and a removable drive tray for easier access to LTO tape drives and RDX removable hard-disk drives.
