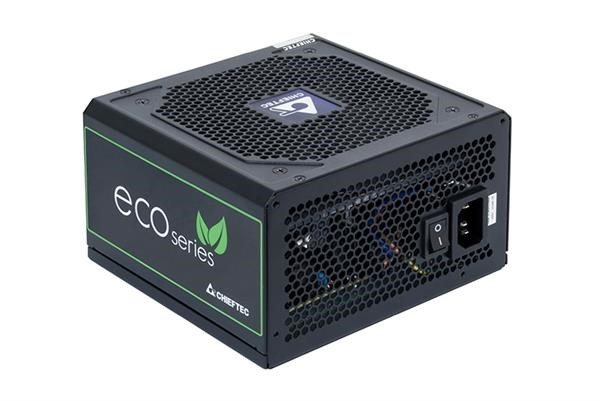

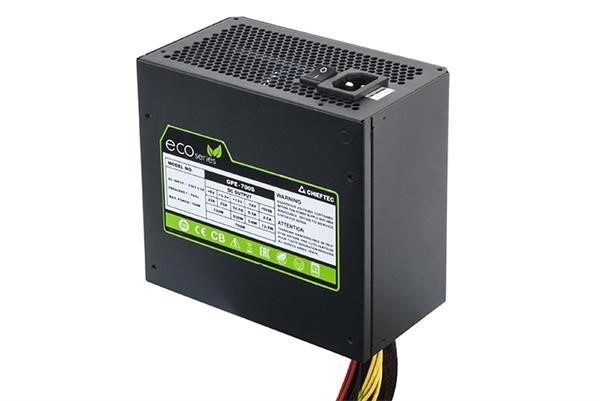

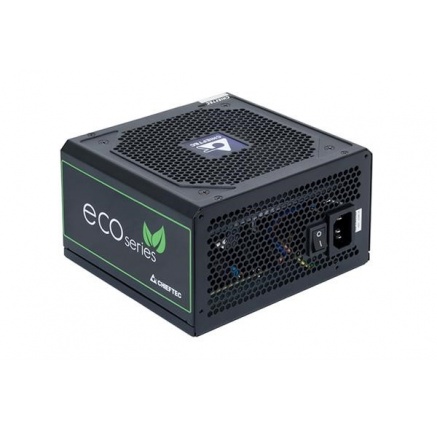

CHIEFTEC zdroj iARENA ECO GPE-700S, 700W, 120mm fan, PFC, účinnost >85%, Bronze, Retail

Kód: 1022473Prodejní číslo: GPE-700S
|
Výrobce: Chieftec
CHIEFTEC zdroj iARENA ECO GPE-700S, 700W, 120mm fan, PFC, účinnost >85%, Bronze, Retail
1 222 Kč
1 009.92 Kč bez DPH
Záruka: 24 měsíců (IČ 24 měsíců)
Zboží není v této chvíli skladem. Na aktuální stav dostupnosti se informujte.Není skladem
Výkon zdroje (ve W):700; Formát zdroje:ATX; Konektory:PCIe 8-pin, SATA 15-pin, Molex; Konektory pro základní desku:ATX 24-pin, EPS 8-pin.
Popis
Detailní popis produktu

The name ECO stands for maximum efficiency, ecological values and a new era of Power Supplies so that while in R & D, all relevant factors were considered accordingly, resulting in an absolute value-added solution for both home and office solutions. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures. The efficiency of the four new power supplies at loads of 20%, 50% and 100% lies by a stable and solid 85%, thereby defining the Power Supply to fulfill all ENERGY STAR 5,0 requirements as stipulated by the EU.

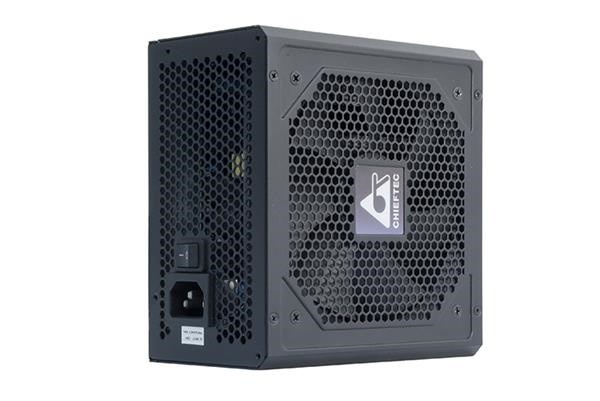

Owing to the future-oriented and effective layout of the PCBs, Green IT projects are realized cost efficiently with ease. The performance scale of the four new ECO power supplies range as follows: 400W (GPE-400S), 500W (GPE-500S), 600W (GPE-600S) and 700W (GPE-700S). All power supplies comply with the latest ATX 12V 2.3 specifications and meet the Haswell requirements. The cable lengths are very generous and a vast amount of connectors are given. The latest “state-of-the-art” +12V single rail technology is implemented which ensures that power hungry components such as multi-GPUs are serviced with a stable power flow. Even under full load, the large 120mm low noise fan rotates at max. 1500RPM and is barely audible.



The ECO series come in an eye-catching retail box including the European power cable.


Connectors:


















24PIN



SATA



MOLEX



4PIN 12V



8PIN EPS (4+4)



6+2 PCIe



GPE-400S



1



4



2



1



x



x



GPE-500S



1



4



2



1



x



1



GPE-600S



1



6



2



x



1



2



GPE-700S



1



6



2



x



1



2





Technical specifications:






























GPE-400S



GPE-500S



GPE-600S



GPE-700S



AC Input:



230V 3A



230V 5A



230V 6,3A



230V 6,3A



Frequency:



50 Hz



50 Hz



50 Hz



50 Hz



+5V:



15A



20A



22A



22A



+3,3V:



21A



21A



22A



22A



+5V & +3,3V combined:



103W



103W



120W



130W



+12V 1:



30A



37,5A



45A



52,5A



P.F.:



>0,9



>0,9



>0,9



>0,9



-12V:



0,3A



0,3A



0,3A



0,3A



+5VSB:



2,5A



2,5A



2,5A



2,5A



Maximum Load:



400W



500W



600W



700W


.
Parametry produktu
Výkon zdroje (ve W)700
Formát zdrojeATX
KonektorySATA 15-pin
Konektory pro základní deskuEPS 8-pin
