ASUS MB Sc sTR5 Pro WS TRX50-SAGE WIFI, AMD TRX50, 4xDDR5, WiFi, CEB

Kód: 1887260Prodejní číslo: 90MB1FZ0-M0EAY0
|
Výrobce: Asus
22 910 Kč
Zboží není v této chvíli skladem. Na aktuální stav dostupnosti se informujte.Není skladem
22 910 Kč
18 934 Kč bez DPH
Záruka: 36 měsíců (IČ 36 měsíců)
Zboží není v této chvíli skladem. Na aktuální stav dostupnosti se informujte.Není skladem
Formát základní desky:CEB; Chipset:AMD TRX50; Socket (patice):Socket TRX5; Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:3; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:5; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s, 10Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:0; VGA:0; DVI:0.
Popis
Parametry
Diskuze
Hodnocení
Detailní popis produktu

ASUS MB Sc sTR5 Pro WS TRX50-SAGE WIFI, AMD TRX50, 4xDDR5, WiFi, CEB

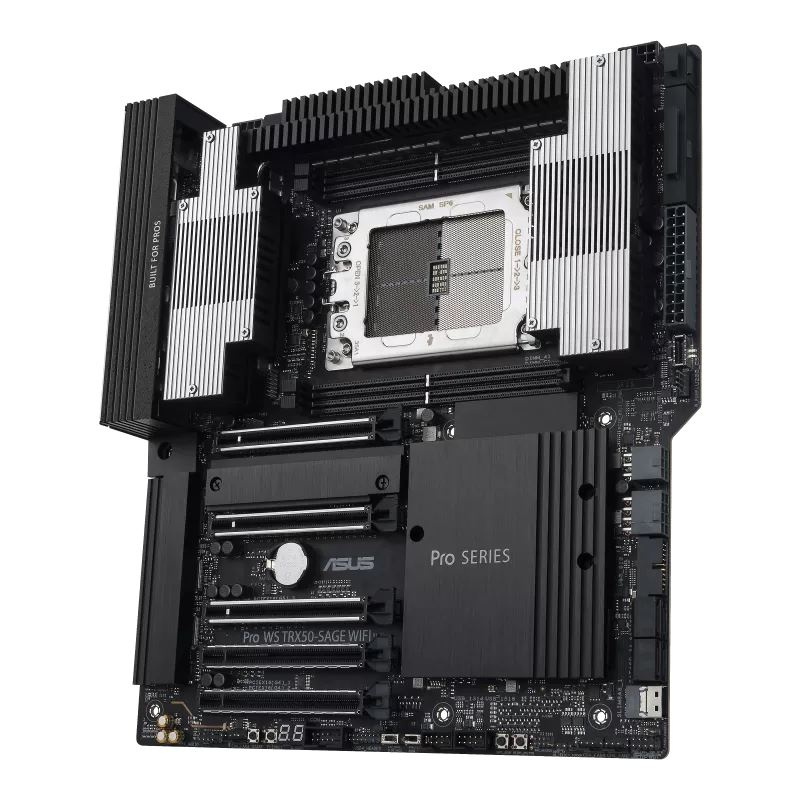

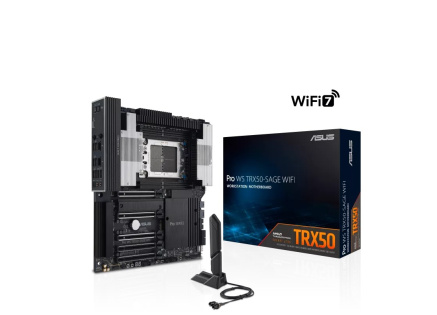

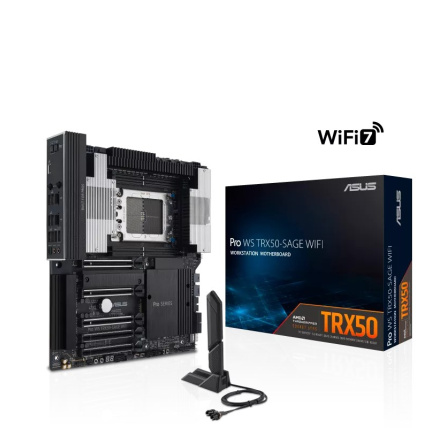

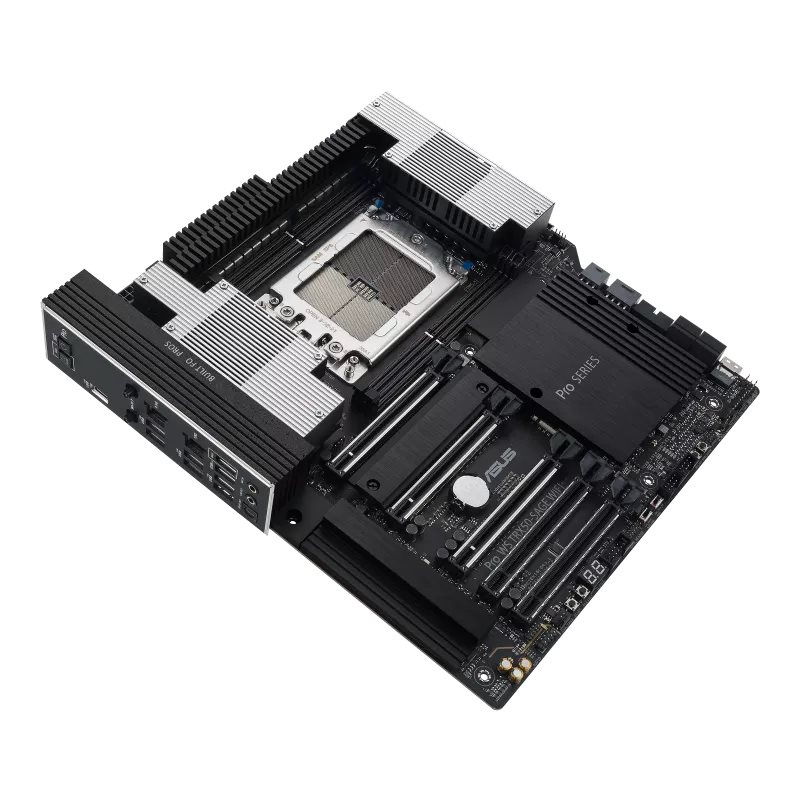

ASUS Pro WS TRX50-SAGE WiFi

AMD TRX50 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support

  • AMD socket sTR5 supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.
  • CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
  • Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.
  • Ultrafast connectivity: three PCIe® 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C® and SlimSAS NVMe support.
  • Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
  • Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation


CPU

AMD Socket sTR5 for RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors *
* Refer to www.asus.com for CPU support list.



Chipset

AMD TRX50 Chipset



Memory

4 x DIMM slots, DDR5, ECC Registered Memory*
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.



Expansion Slots

AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)



Storage

Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports
AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.



LAN

1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® I226-LM 2.5Gb Ethernet



WiFi & Bluetooth

---Místo pro Wifi a BT---



USB

Rear USB (Total 9 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A )
2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports



Audio

"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

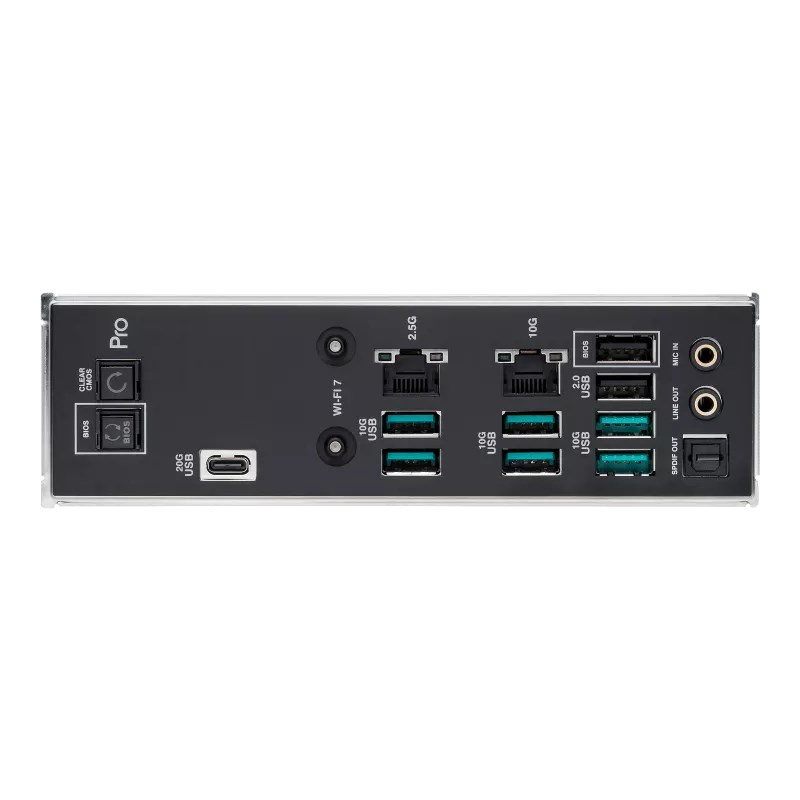

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button



Internal I/O Ports

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x BMC header
1 x COM Port header
1 x USB4 header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor header



Special Features

ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection



Software Features

ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey



BIOS

256 Mb Flash ROM, UEFI AMI BIOS



Manageability

WOL by PME, PXE (UEFI mode)



Accessories

Cables
2 x SATA 6Gb/s cables
1 x CPU 8-pin to PCIe 8-pin adapter cable package
1 x Thermistor cable pack
Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package(2 in 1)
2 x M.2 Rubber Packages
1 x Q-connector
Documentation
1 x ACC Express Activation Key Card
1 x QSG



Operating System

"Windows® 11
Windows® 10 64-bit "



Form Factor

CEB Form Factor
12 inch x 11 inch (30.5 cm x 28.0 cm)


.
Parametry produktu
COM portAno
LPT portNe
Socket (patice)Socket TRX5
Formát základní deskyCEB
ChipsetAMD TRX50
Technologie paměti RAMDDR5
PCI Express x165
Podpora RAID0
Podpora RAID1
Podpora RAID5
Podpora RAID10
3.5mm JackAno
Bezdrátové připojeníWiFi + Bluetooth
Pro procesoryAMD
Počet paměťových slotů4
DisplayPort0
TPMAno
USB 26
USB 38
PCI0
M.2 slot3
SATA 34
VGA0
DVI0
HDMI0
Led HeaderNe
PCI Express x10
USB C2
LAN10Gbit/s
LAN2.5Gbit/s
DisplayPort Type-C0
Počet Thunderbolt0
Více parametrů
Méně parametrů
Parametry produktu
COM portAno
LPT portNe
Socket (patice)Socket TRX5
Formát základní deskyCEB
ChipsetAMD TRX50
Technologie paměti RAMDDR5
PCI Express x165
Podpora RAID0
Podpora RAID1
Podpora RAID5
Podpora RAID10
3.5mm JackAno
Bezdrátové připojeníWiFi + Bluetooth
Pro procesoryAMD
Počet paměťových slotů4
DisplayPort0
TPMAno
USB 26
USB 38
PCI0
M.2 slot3
SATA 34
VGA0
DVI0
HDMI0
Led HeaderNe
PCI Express x10
USB C2
LAN10Gbit/s
LAN2.5Gbit/s
DisplayPort Type-C0
Počet Thunderbolt0
