ASUS MB Sc AM4 PRIME B550M-K, AMD B550, 4xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX
Kód: 431118Prodejní číslo: 90MB14V0-M0EAY0|
Výrobce: Asus
Popis
Parametry
Diskuze
Hodnocení
Detailní popis produktu
ASUS MB Sc AM4 PRIME B550M-K, AMD B550, 4xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX

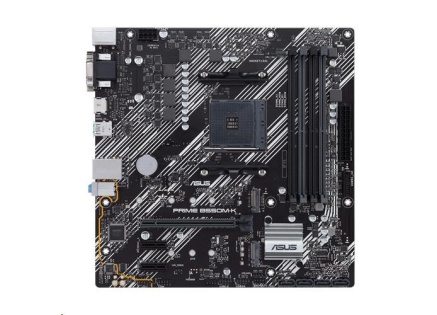

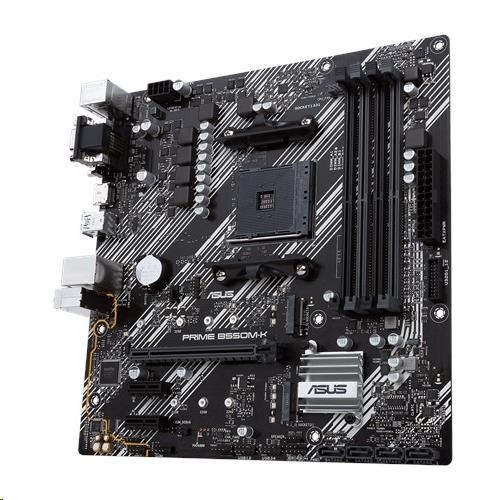

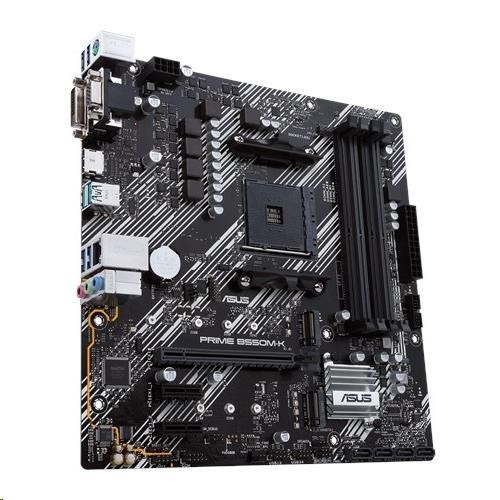

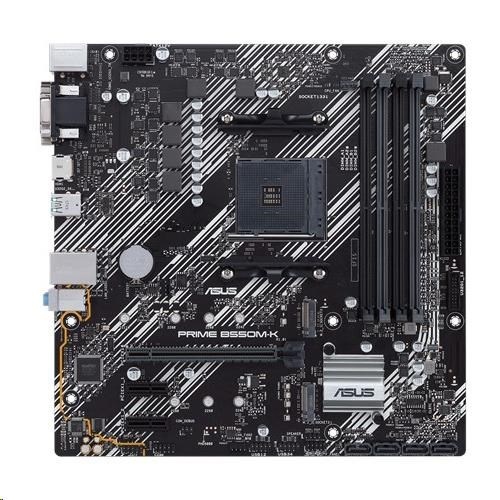

PRIME B550M-K
AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- Comprehensive cooling: PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
- 5X Protection III: Multiple hardware safeguards for all-around system protection
TECHNICAL SPECIFICATIONS
| CPU | Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors * * Refer to www.asus.com for CPU support list |
| Chipset | AMD B550 |
| Memory | 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * |
| 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Graphic | 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types. |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) |
| 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) | |
| AMD B550 Chipset 2 x PCIe 3.0 x1 | |
| Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
| 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support | |
| AMD B550 Chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 | |
| LAN | Realtek RTL8111H 1Gb Ethernet ASUS LANGuard |
| Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC * - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | Rear USB Port (Total 6) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) |
| Front USB Port (Total 6) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) | |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control |

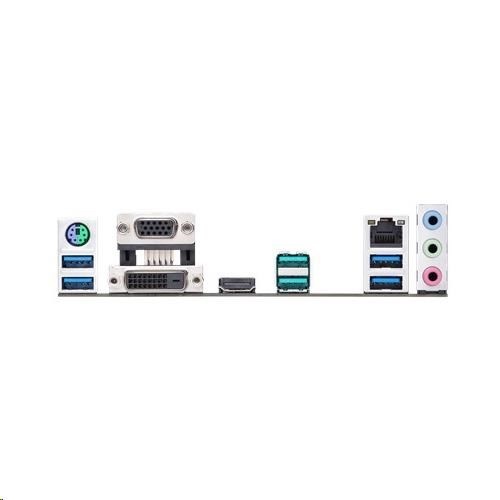

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
.
Parametry produktu
| COM port | Ano |
| LPT port | Ne |
| Socket (patice) | Socket AM4 |
| Formát základní desky | micro ATX |
| Chipset | AMD |
| Chipset | AMD B550 |
| Technologie paměti RAM | DDR4 |
| PCI Express x16 | 1 |
| Podpora RAID | 1 |
| Podpora RAID | 10 |
| 3.5mm Jack | Ano |
| Bezdrátové připojení | bez |
| Pro procesory | AMD |
| Počet paměťových slotů | 4 |
| DisplayPort | 0 |
| TPM | Ano |
| USB 2 | 4 |
| USB 3 | 8 |
| PCI | 0 |
| M.2 slot | 2 |
| SATA 3 | 4 |
| VGA | 1 |
| DVI | 1 |
| HDMI | 1 |
| Led Header | Ne |
| PCI Express x1 | 2 |
| USB C | 0 |
| LAN | 1Gbit/s |
Parametry produktu
| COM port | Ano |
| LPT port | Ne |
| Socket (patice) | Socket AM4 |
| Formát základní desky | micro ATX |
| Chipset | AMD |
| Chipset | AMD B550 |
| Technologie paměti RAM | DDR4 |
| PCI Express x16 | 1 |
| Podpora RAID | 1 |
| Podpora RAID | 10 |
| 3.5mm Jack | Ano |
| Bezdrátové připojení | bez |
| Pro procesory | AMD |
| Počet paměťových slotů | 4 |
| DisplayPort | 0 |
| TPM | Ano |
| USB 2 | 4 |
| USB 3 | 8 |
| PCI | 0 |
| M.2 slot | 2 |
| SATA 3 | 4 |
| VGA | 1 |
| DVI | 1 |
| HDMI | 1 |
| Led Header | Ne |
| PCI Express x1 | 2 |
| USB C | 0 |
| LAN | 1Gbit/s |
Diskuze k produktu ASUS MB Sc AM4 PRIME B550M-K, AMD B550, 4xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX
Máte k produktu dotaz? Zeptejte se nás.Hodnocení produktu ASUS MB Sc AM4 PRIME B550M-K, AMD B550, 4xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX
0
0 hodnocení
Přidat hodnocení k produktu
Naposledy navštívené
ASUS MB Sc AM4 PRIME B550M-K, AMD B550, 4xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATXFormát základní desky:micro ATX; Chipset:AMD B550, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:1, 10; PCI Express x16:1; PCI Express x1:2; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:1; VGA:1; DVI:1; USB 2:4; USB 3:8; USB C:0; COM port.
2 379 Kč
