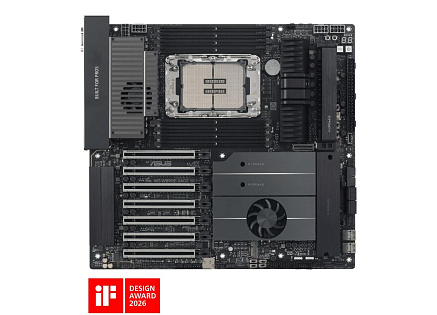

ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB
Kód: 1887869Prodejní číslo: 90MB1LH0-M0EAY0
ASUS MB PRO WS W890E-SAGE SE, Intel W890, 8xDDR5, 1xVGA, 2xUSB4, EEB

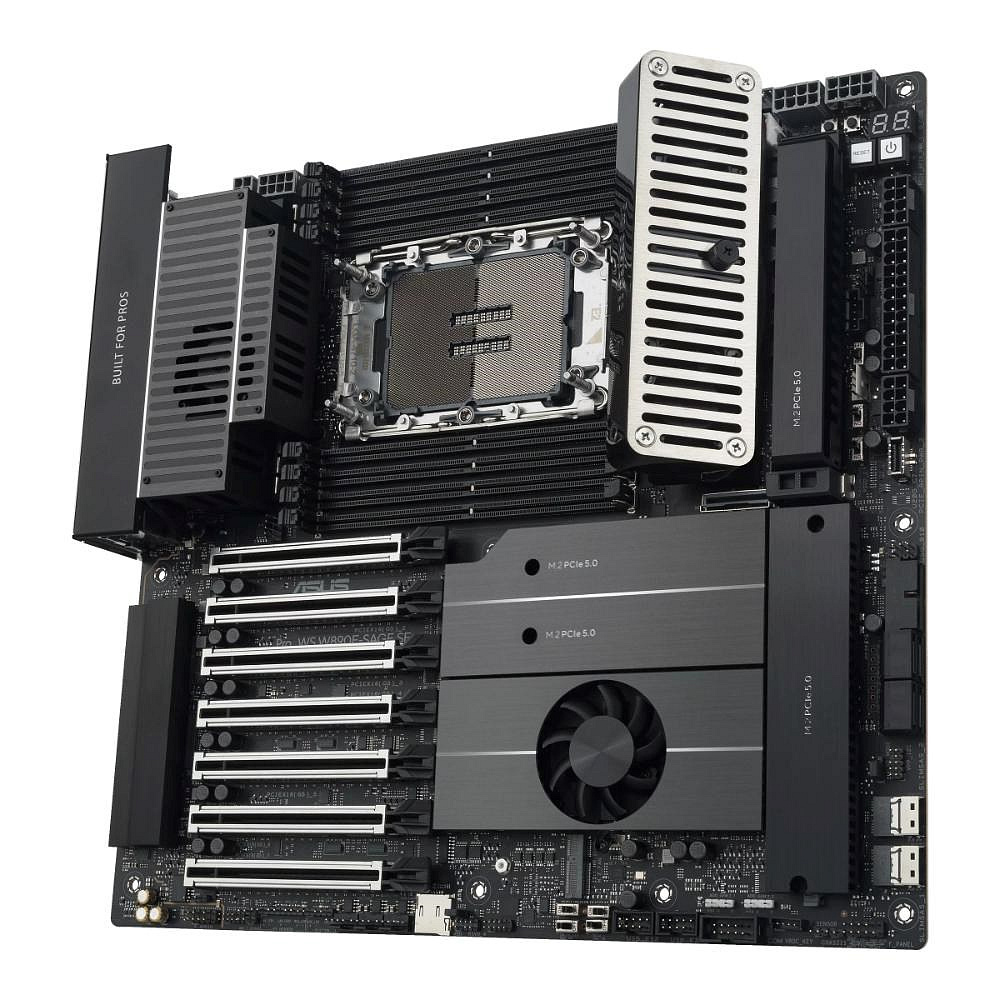

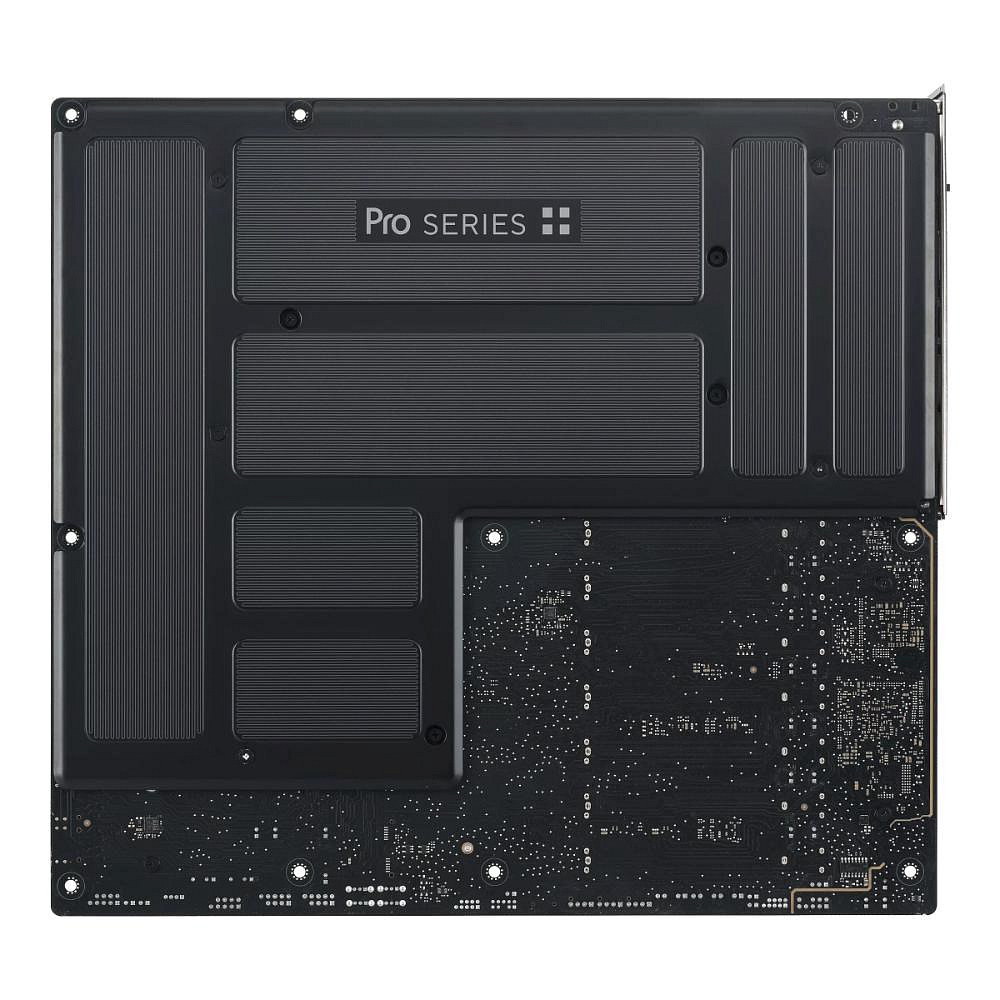

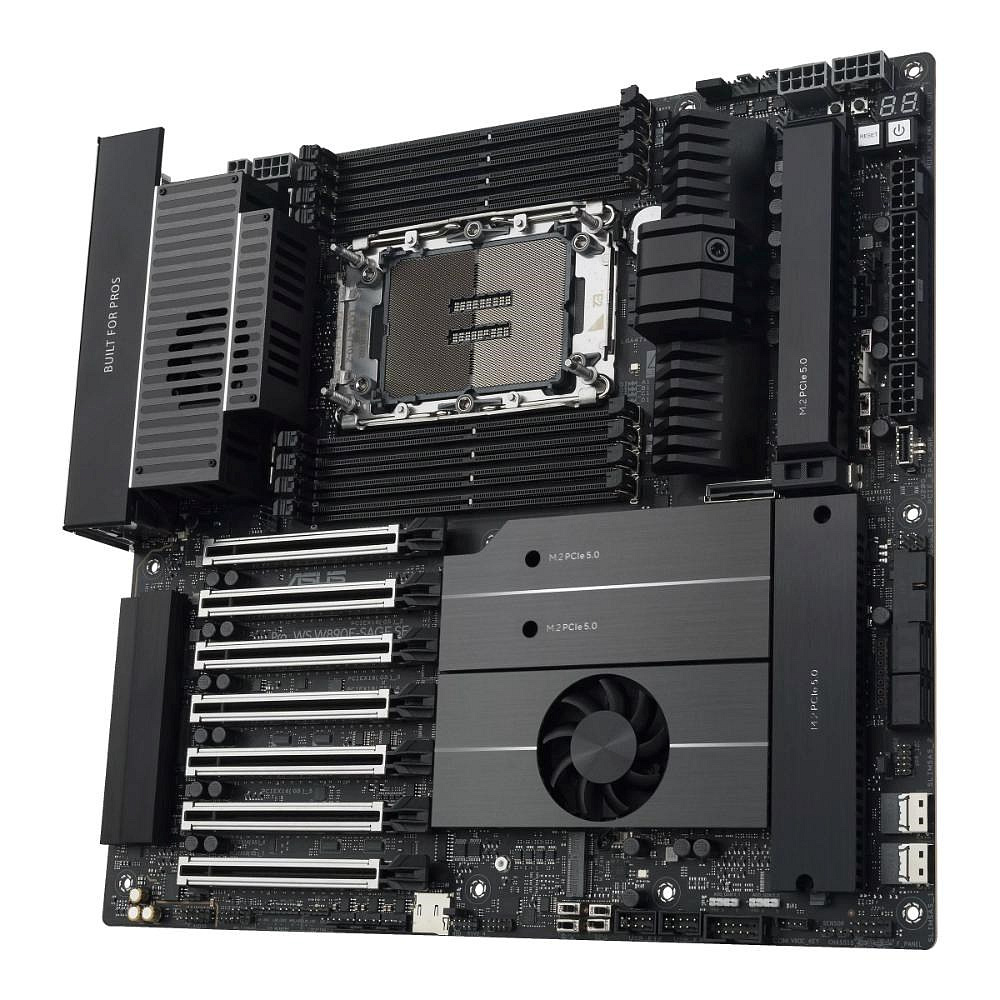

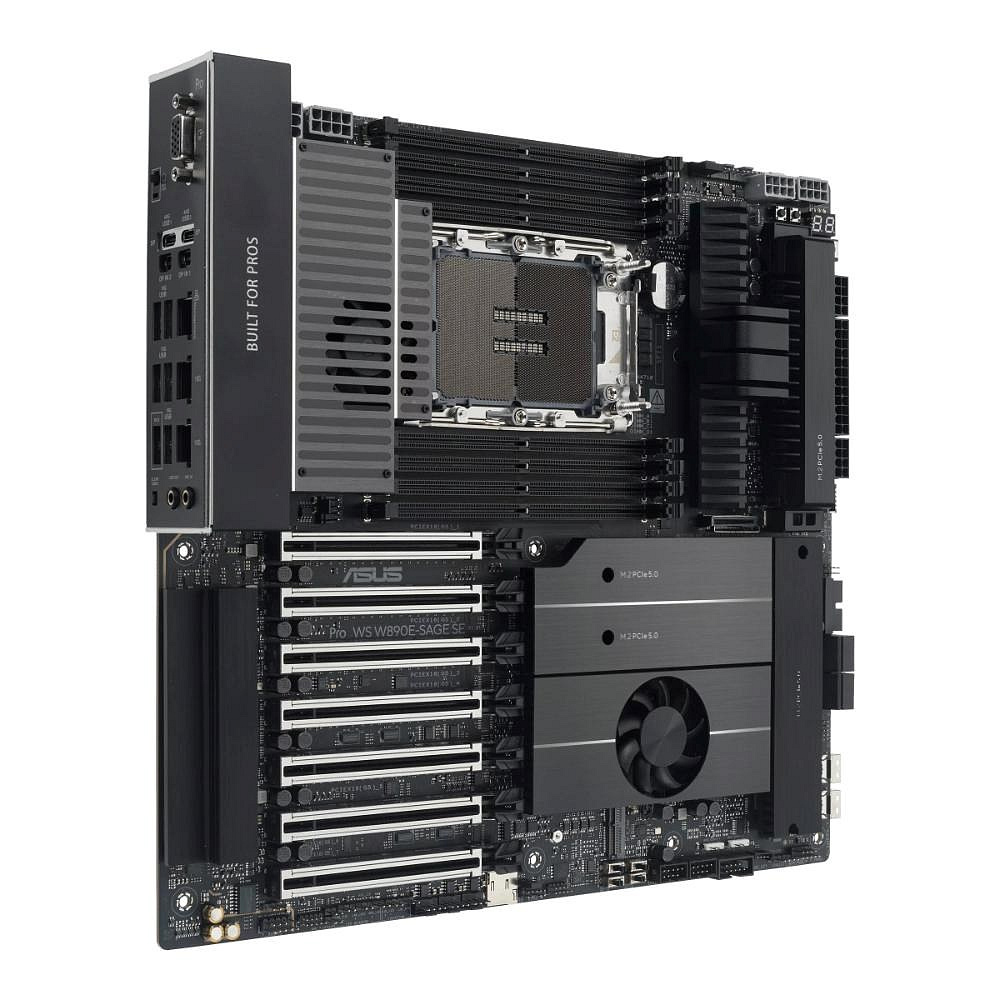

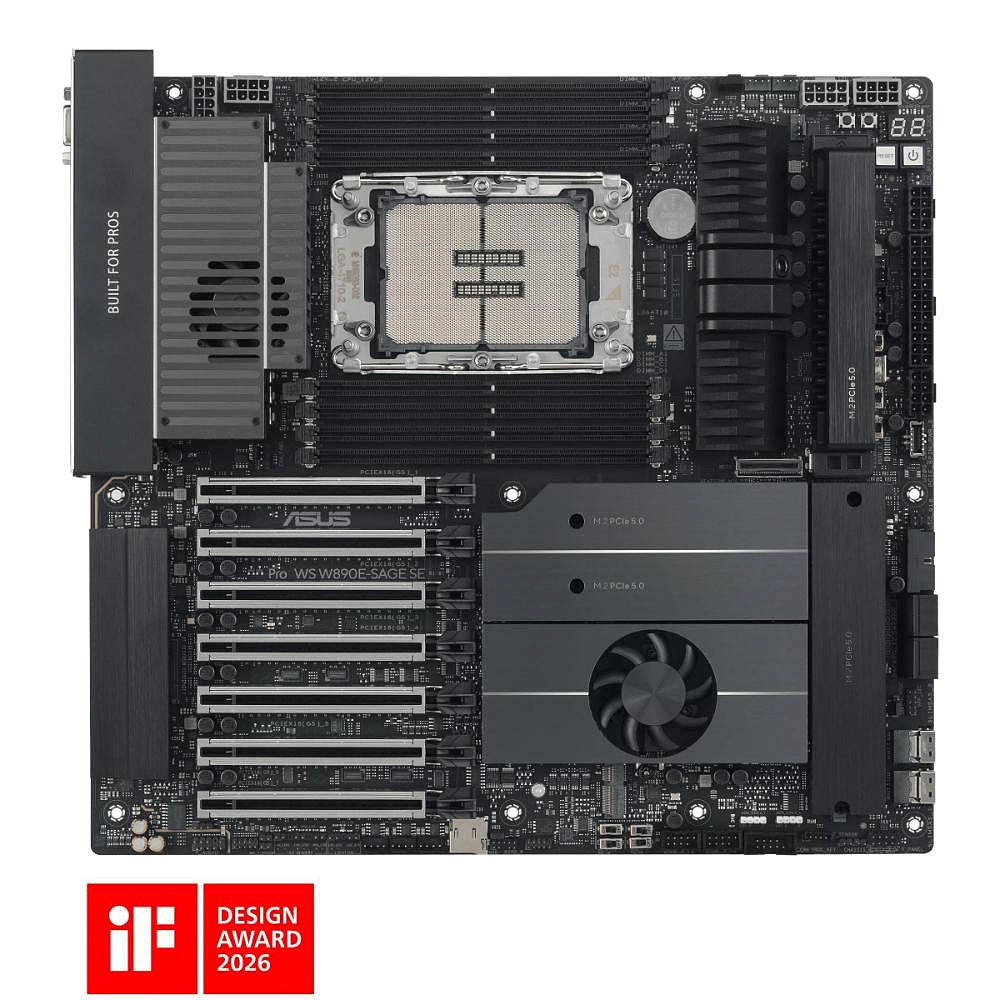

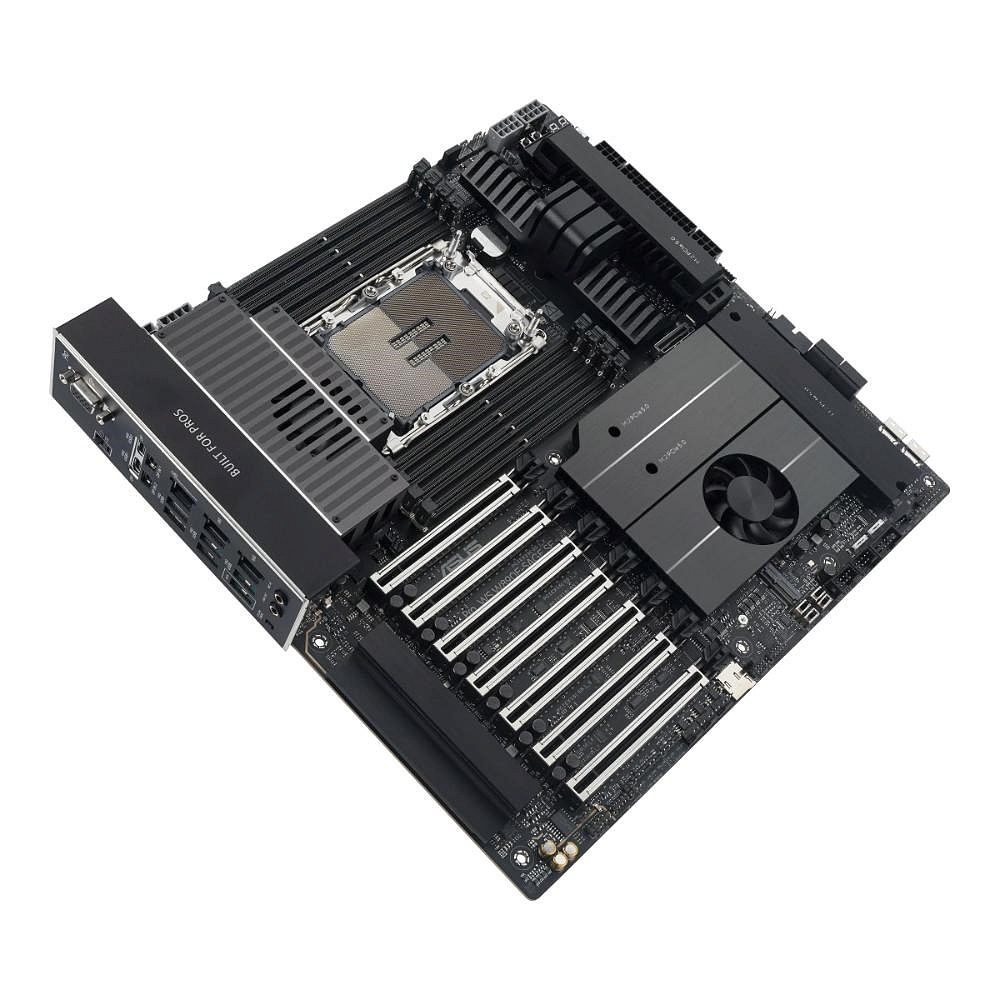

ASUS Pro WS W890E-SAGE SE
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA4710-2 socket supports up to 86-core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.
- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, a MCIO connector, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support.
- CPU and memory overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (1DPC).
- Robust power and thermal design: 16+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with active fans, AngleBoost Fan Kit for DDR5, and M.2 thermal pad.
- Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Model
Pro WS W890E-SAGE SE
News & Updates
LGA4710-2
CPU
Intel® Socket LGA4710-2 for Xeon® 600 Processors for Workstation
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® W890 Chipset
Memory
8 x DIMM slots, DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)*
8-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
* Only channels A, C, E, and G will function when an Intel® Xeon® 630 Series Processor is in use.
** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Graphics
1 x VGA port from AST2600
2 x USB 40Gbps (USB4®) ports support USB Type-C® display outputs*
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Output at USB4® Type-C® ports requires Mini DisplayPort IN to DisplayPort adapter cable.
*** The display function depends on CPU or GPU.
Expansion Slots
Intel® Xeon® 690/670/650 Series Processors*
7 x PCIe 5.0 slot(s)
Intel® Xeon® 630 Series Processor*
7 x PCIe 5.0 slot(s)
* Specifications vary by CPU types.
Storage
Total supports 4 x M.2 slots, 2 x SlimSAS ports, 1 x MCIO connector, and 4 x SATA 6Gb/s ports
M.2 slots support PCIe 5.0
SlimSAS supports PCIe 4.0
Supports Intel® VROC and VMD
Ethernet
1 x Intel® dual 10Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Wi-Fi module sold separately)
USB
Rear USB: 2 x USB4®, 6 x USB 10Gbps
Front USB: USB-C, USB 5Gbps, USB 2.0 headers
Audio
Realtek ALC1220P 7.1 Surround Sound
High quality playback and recording
* 32-Bit/192 kHz not supported for 7.1

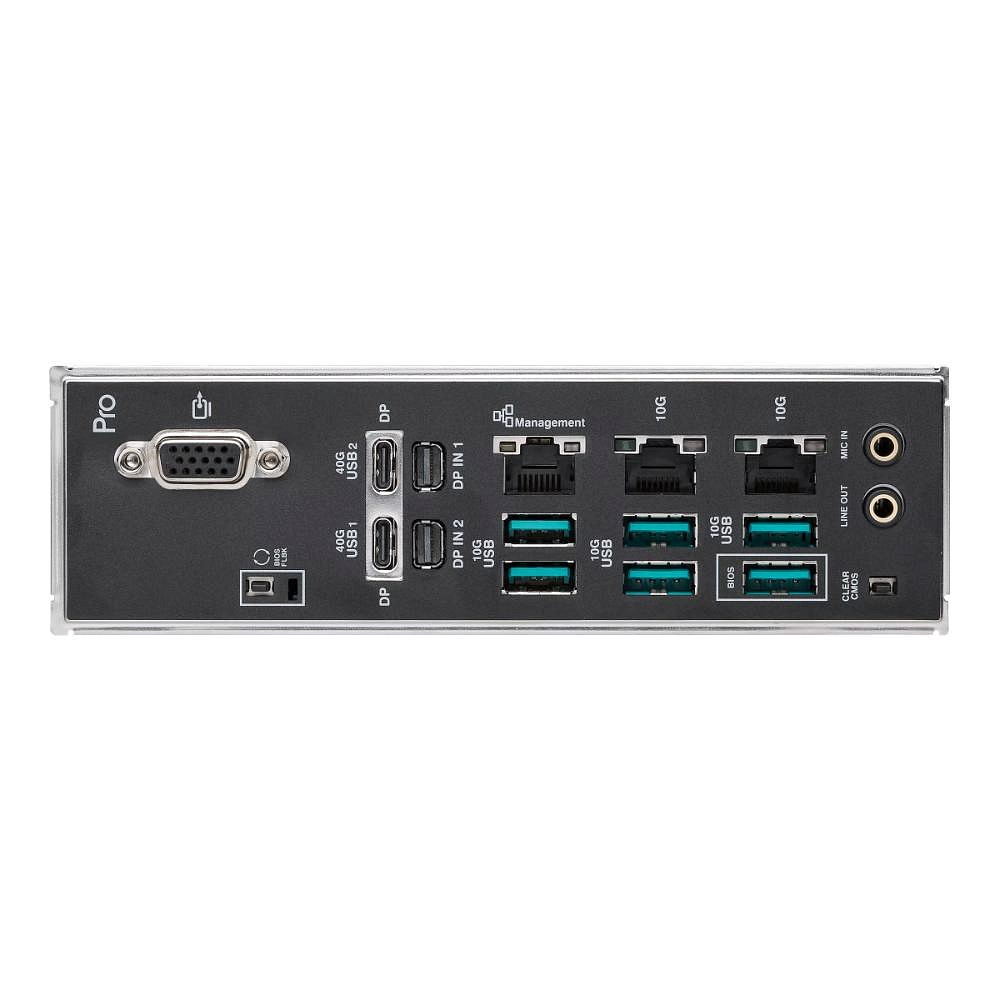

Back Panel I/O Ports
USB4®, USB 10Gbps, VGA, LAN, Audio jacks, BIOS FlashBack™
Internal I/O Connectors
Fan headers, power connectors, storage connectors, USB headers
RGB headers, buttons, sensors
Special Features
ASUS 5X PROTECTION III
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Aura Sync
Software Features
Armoury Crate, ASUS DriverHub, WinRAR, Norton 360
UEFI BIOS utilities
Remote Management Features
ASUS Control Center Express (ACCE)
BMC Related
Switches, LEDs, microSD, monitoring features
BIOS
512Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
SATA cables, thermistor cable, adapters
Operating System
Windows 11
Form Factor
EEB Form Factor
12 inch x 13 inch (30.5 cm x 33 cm)
| COM port | Ano |
| LPT port | Ne |
| Formát základní desky | EEB |
| Technologie paměti RAM | DDR5 |
| PCI Express x16 | 7 |
| Podpora RAID | 1 |
| Podpora RAID | 5 |
| Podpora RAID | 10 |
| 3.5mm Jack | Ano |
| Bezdrátové připojení | bez |
| Pro procesory | Intel |
| Počet paměťových slotů | 8 |
| TPM | Ne |
| USB 2 | 4 |
| USB 3 | 8 |
| M.2 slot | 4 |
| SATA 3 | 4 |
| VGA | 1 |
| Led Header | Ano |
| USB C | 3 |
| LAN | 10Gbit/s |
| LAN | 1Gbit/s |
| COM port | Ano |
| LPT port | Ne |
| Formát základní desky | EEB |
| Technologie paměti RAM | DDR5 |
| PCI Express x16 | 7 |
| Podpora RAID | 1 |
| Podpora RAID | 5 |
| Podpora RAID | 10 |
| 3.5mm Jack | Ano |
| Bezdrátové připojení | bez |
| Pro procesory | Intel |
| Počet paměťových slotů | 8 |
| TPM | Ne |
| USB 2 | 4 |
| USB 3 | 8 |
| M.2 slot | 4 |
| SATA 3 | 4 |
| VGA | 1 |
| Led Header | Ano |
| USB C | 3 |
| LAN | 10Gbit/s |
| LAN | 1Gbit/s |
