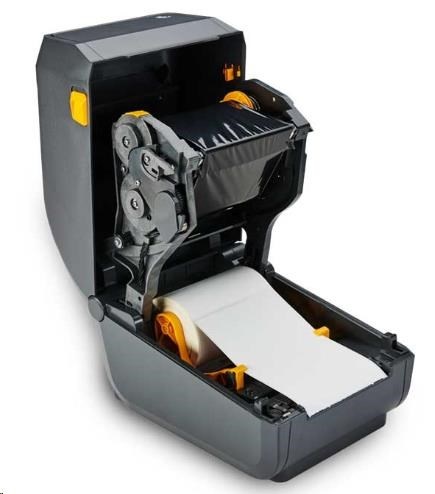

Thermal Transfer or Direct Thermal print method ZPL and EPL programming languages Single LED status indicator Single button for feed/pause USB connectivity OpenACCESS™ for easy media loading Dual-wall frame construction ENERGY STAR qualified

Dimensions

Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H 267 mm L x 197 mm W x 191 mm H Direct Thermal: 8.6 in. L x 6.9 in. W x 5.2 in. H 220 mm L x 176 mm W x 151 mm H

Weight

2.5 lbs./1.1 kg

Resolution*

203 dpi/8 dots per mm

Memory

256 MB Flash; 128 MB SDRAM

Maximum Print Width

4.09 in./104 mm

Maximum Print Speed

4 in./102 mm per second

Media Sensors

• Movable black mark sensor, limited range from centre to left side
• Fixed off-centre gap sensor

Firmware

ZPL II; EPL 2; XML

Maximum Label Length

39.0 in./991 mm

Media Width

1.00 in./25.4 mm to 4.4 in./112 mm

Media Roll Size

5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adaptors

Thickness

0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)

Media Types

Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands

Ribbon Outside Diameter

1.34 in./34 mm (74 m)

Maximum Ribbon Length

244 ft. (74 m)

Ribbon Ratio

1:1 media to ribbon (74 m)

Ribbon Width

1.33 in./33.8 mm ~ 4.3 in./109.2 mm

Ribbon Core I.D.

74 Metre ribbon 0.5 in./12.7 mm

Operating Temp.

40° to 105° F/4.4° to 41° C

Storage Temp.

-40° to 140° F/-40° to 60° C

Operating Humidity

10% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Electrical

Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified

Media Handling

Factory installed peeler (volitelné)

Real Time Clock

None

Bar Code Ratios

2:1 and 3:1

1D Bar Codes

Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code

2D Bar Codes

Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec

Fonts and Graphics

16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing China units include SimSun simplified Chinese font 50 MB user available non-volatile memory, 8 MB user available SDRAM

Keep your Zebra printer up and running with genuine Zebra printer supplies, available directly from Zebra.

• IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus
• CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

Zebra OneCare SV

This printer is supported by a core set of Print DNA applications powered by Link-OS® Basic.

Print DNA features may vary by model and a Support Contract may be required. For more information, please visit www.zebra.com/printdna
