2-way : Paper top-exit and front-exit (IPx1)
Compact cube : 127mm x 127mm x 127mm
Max printing speed : 250mm/sec
Optional 4.3 inch color LCD can be mounted on RP-F10
Easy pairing with a Bluetooth terminal via NFC (Bluetooth Model)
Cutter lock automatic restoration mechanism
Various drivers and wide variety utility software

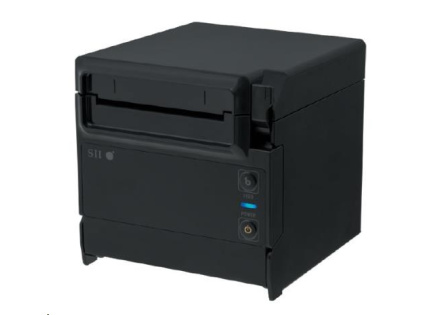

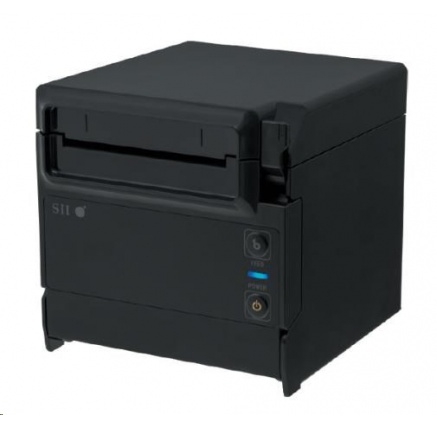

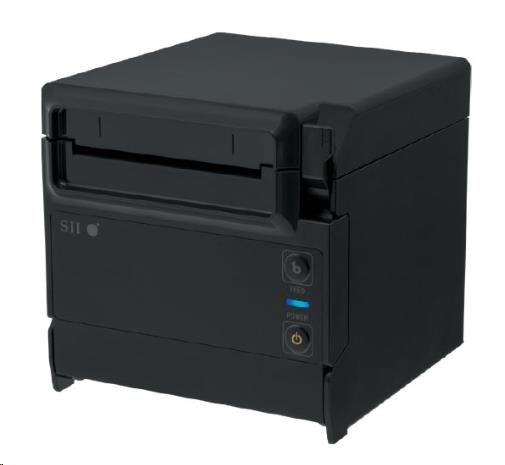

Model		RP-F10
*1 Use recommended thermal papers. *2 Excluding protrusion. ESC/POS™: Registered trademark of SEIKO EPSON CORP. Windows® is the registered trademark of Microsoft Corporation(USA). Android™ is a trademark of Google Inc. This product is under development. The specs are subject to change.
Printing	Method	Thermal line dot printing
	Resolution (dpi)	203 (8dots/mm)
	Paper width (mm)	58 / 80
	Printing width (mm)	54 / 72
	Speed (mm/sec) max	250
	Outside diameter of paper roll (mm) max	? 83
	Character matrix (H × W dots)	24 × 12, 24 × 24, 16 × 8, 16 × 16
	Character size (H × W mm)	3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0
Type of Paper		Roll paper
Character type		Code page(14pages), International character, Optional font, Downloaded character, JIS 1&2 Level Kanji Special character, User-defined character
Bar code		UPC-A/E, JAN(EAN)8/13, ITF, CODABAR, Code39, Code93, Code128, QR, PDF417, GS1 Databar
Power supply		Specified AC adapter, External power (DC24±10%)
Communication interface		USB+USB-host
Input buffer		4K bytes
Command		ESC/POS™ conformity
Cutting	Method	Slide type
	Cutting type	Full cut, Partial cut (Leave center point)
Operating temperature (°C)		5 to 45
Service life	Abrasion resistance (km)	150*1
	Paper cutting (cut)	1,500,000*1
Dimensions (W×D×H mm)		127.0 × 127.0 × 127.0*2
Mass (g)		Approx. 840
Standard		FCC, CE, VCCI
Option		Wall mounting Kit, Buzzer, LCD (4.3inch color)
Cash drawer		2 drivers (24V / 1A)
Body color		2 colors: White / Black
Software		Windows® : Printer Driver, Virtual COM Driver, OPOS Driver, POS for .Net Driver / SDK / Utility Linux® : CUPS Filter (Driver) / Communication Library (SDK) Android™ : SDK / Utility, iOS:SDK/Utility
