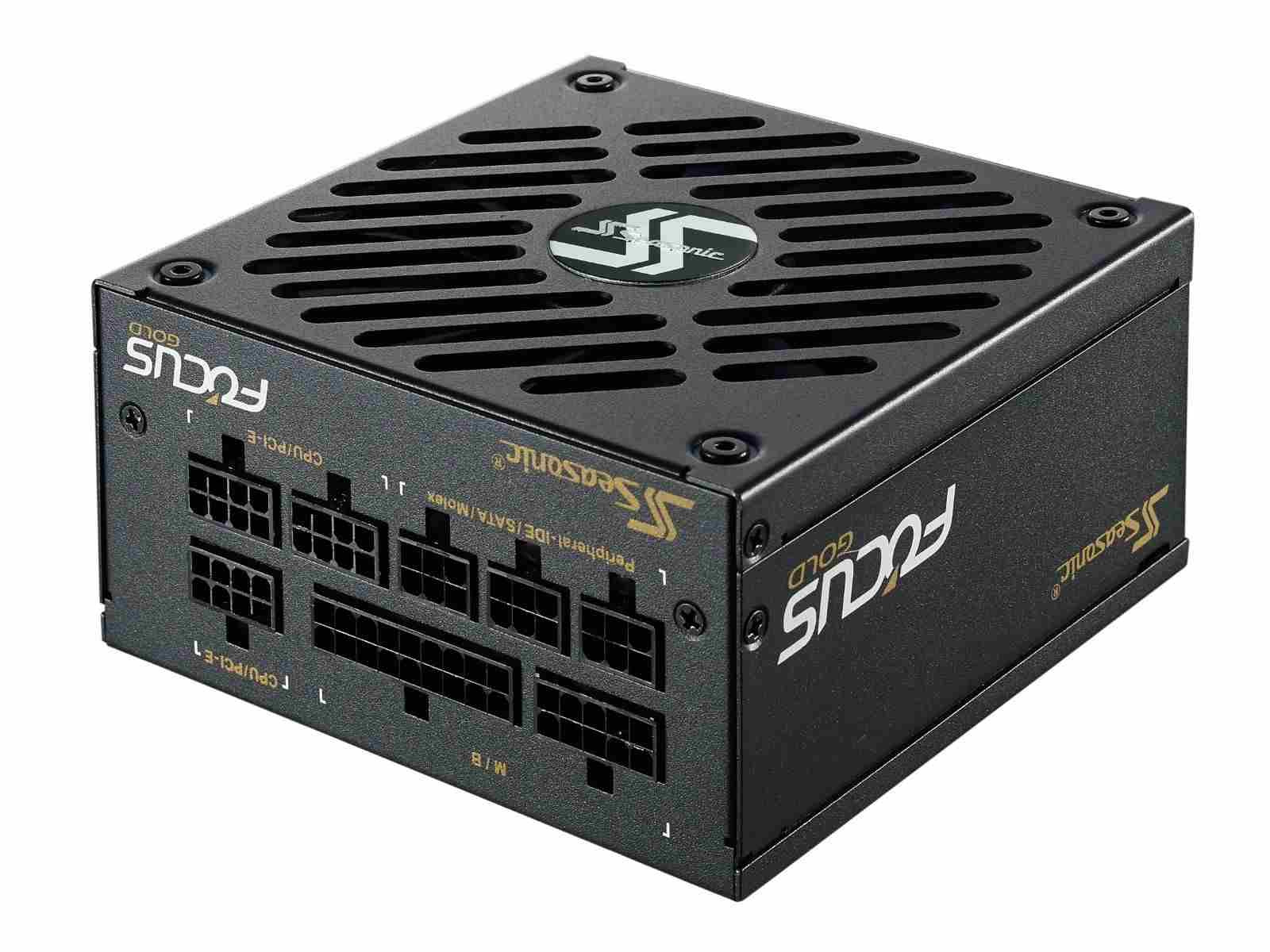

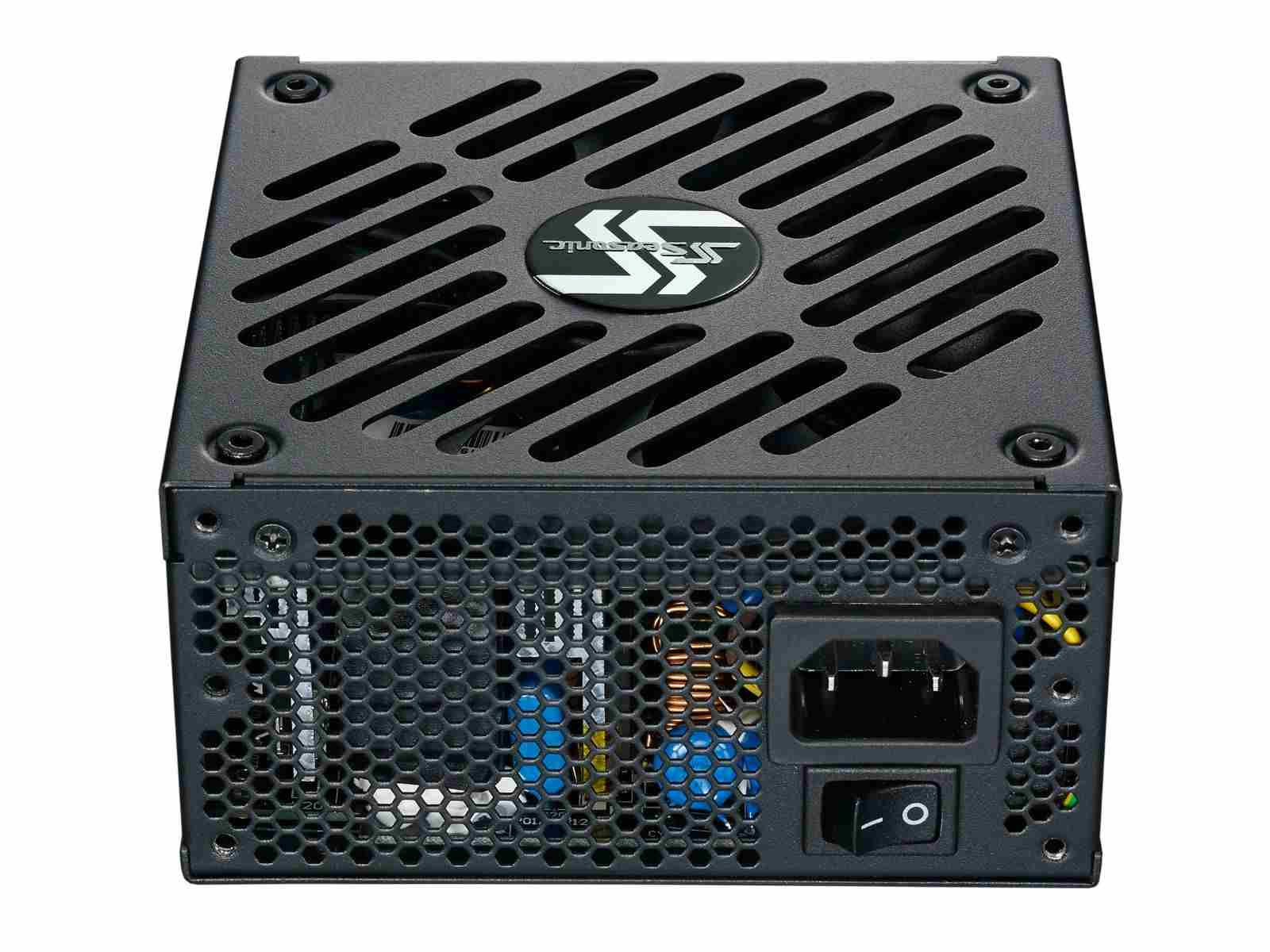

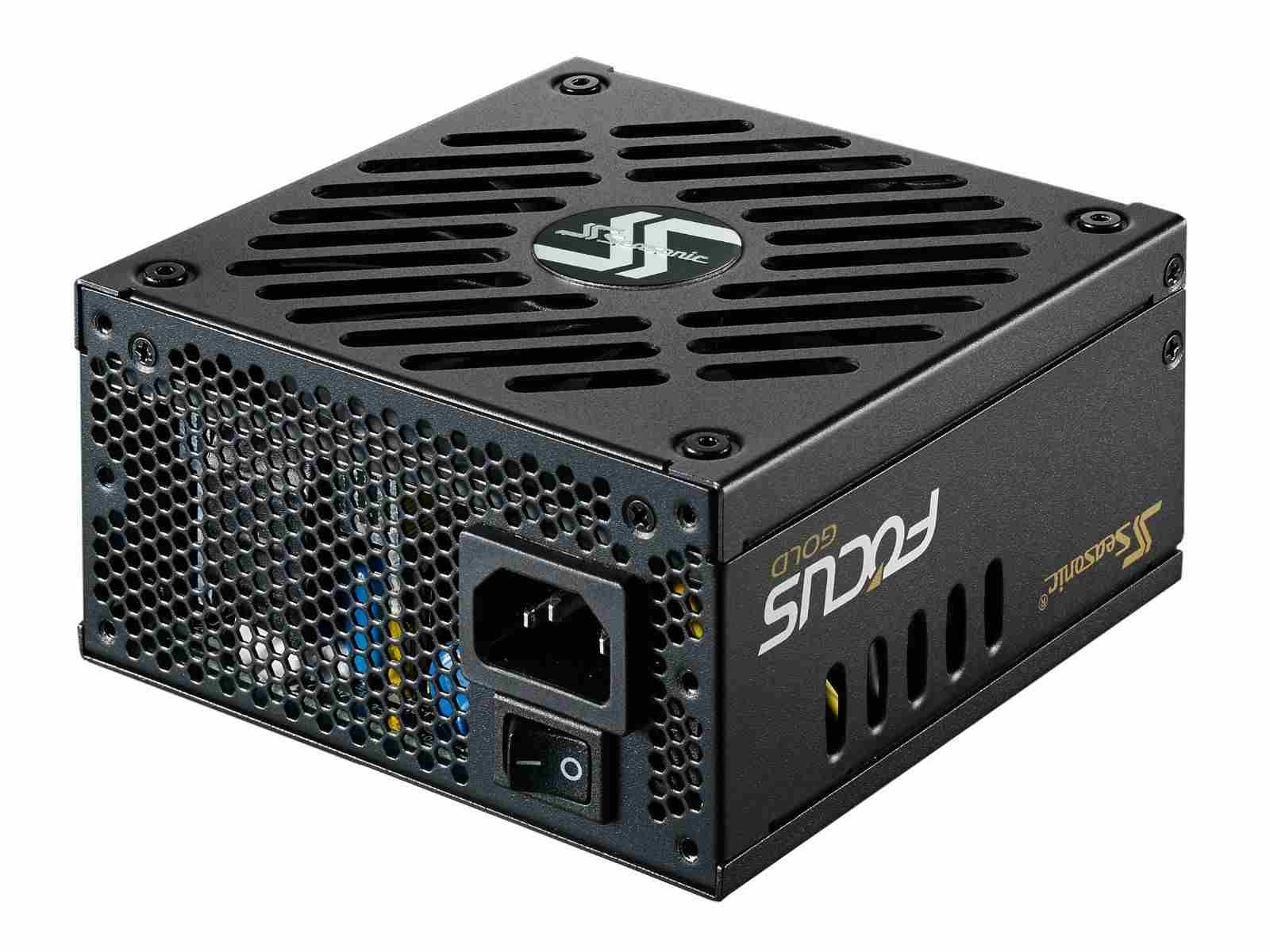

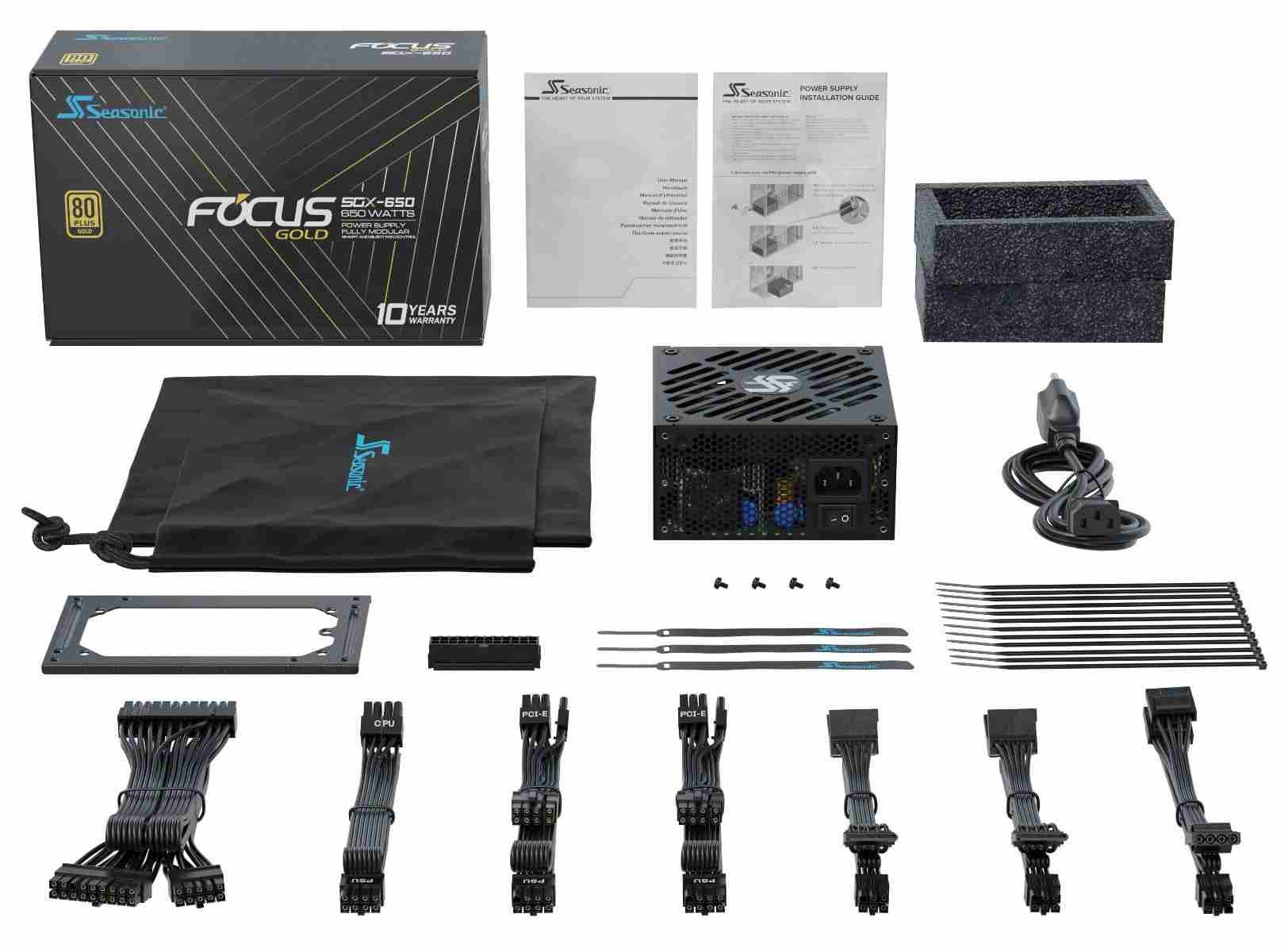

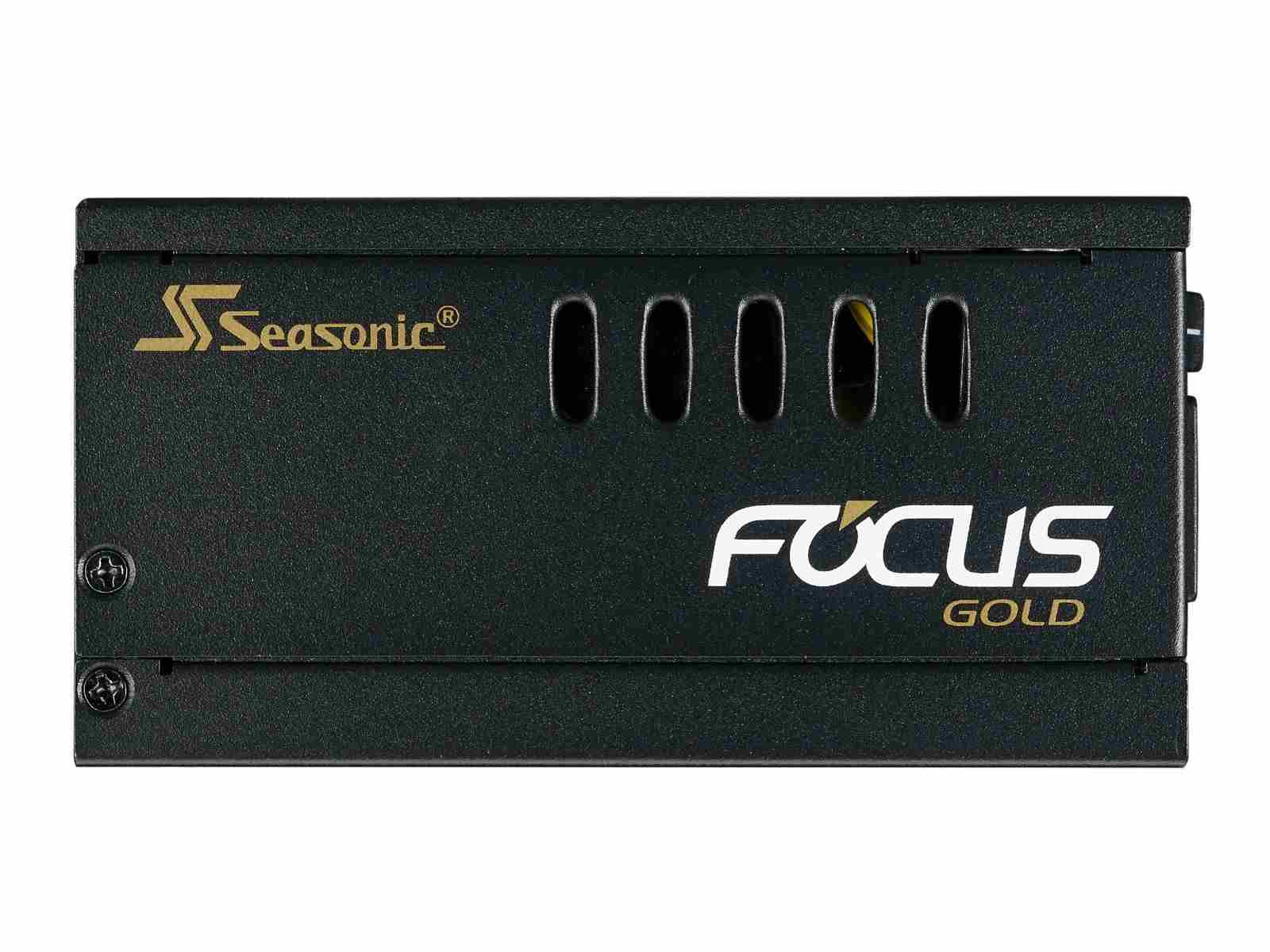

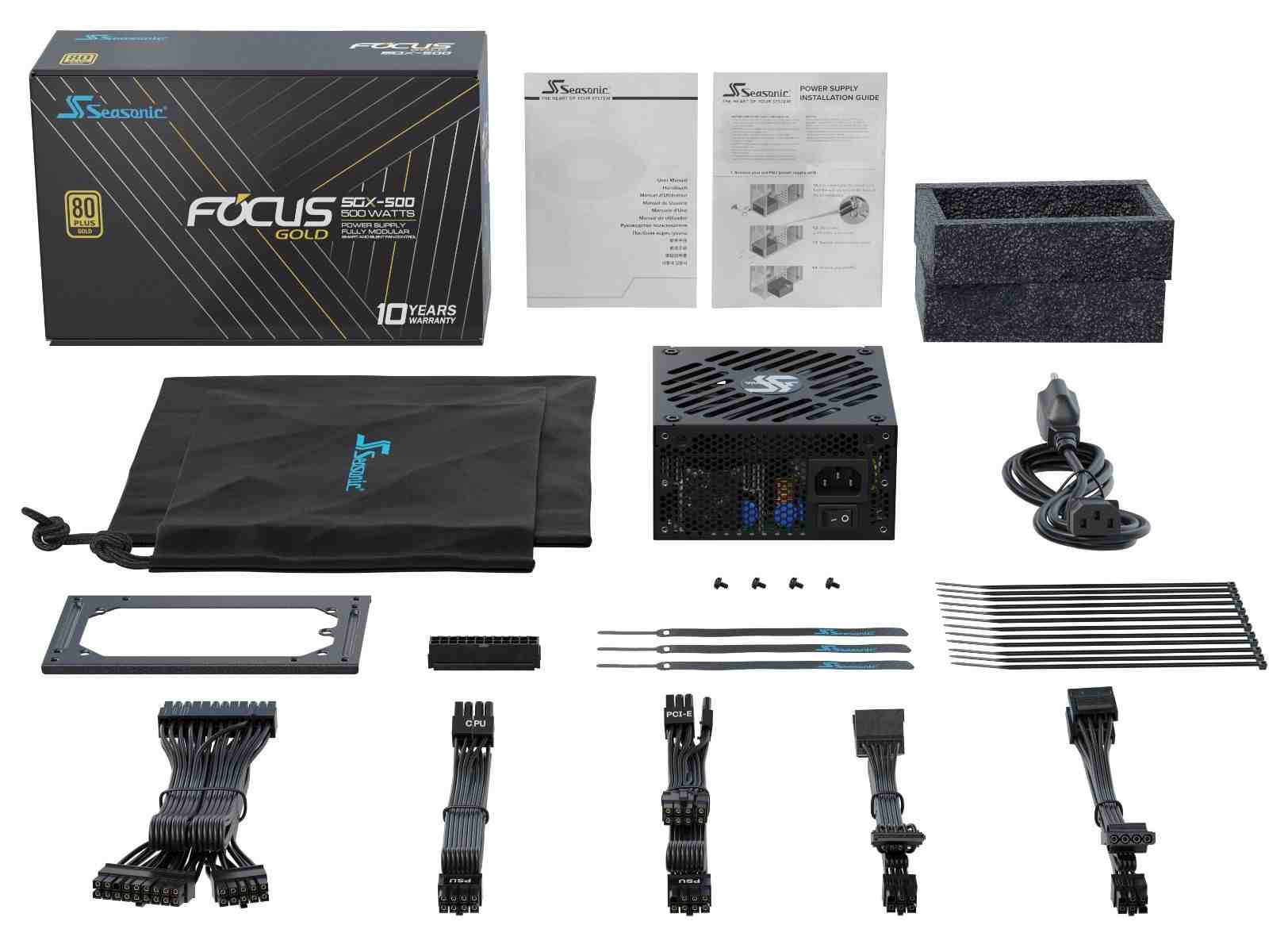

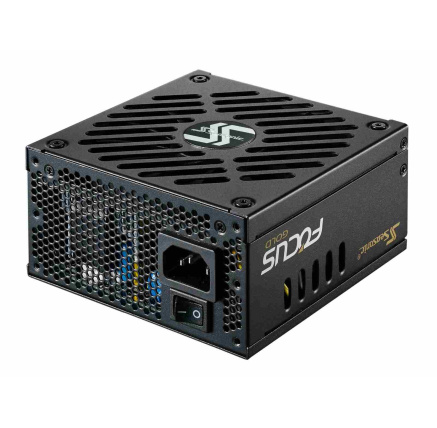

The long-awaited new line of Seasonic's FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.

80 PLUS^® Gold

The FOCUS PLUS Gold Series achieves 80 PLUS^® Gold certification with its 90 % efficiency at 50 % system load.

Compact SFX-L Size

The versatile FOCUS SGX measures at only 125 mm in both length and width. This super-compact size allows it to fit into various sized computer cases.

Smart and Silent Fan Control [S3FC]

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Benefits

• Reduced noise without increase in temperature;
• Extended fan life due to the reduced number of fan rotations;
• Optimized heat dissipation at all times;
• Unsurpassed silent performance in Fanless Mode.

Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

How it works

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

feature summary

• 80 PLUS^® Gold certified
• Compact SFX-L Size - 125 (L) x 125 (W) x 63.5 (H) mm
• Tight Voltage Regulation

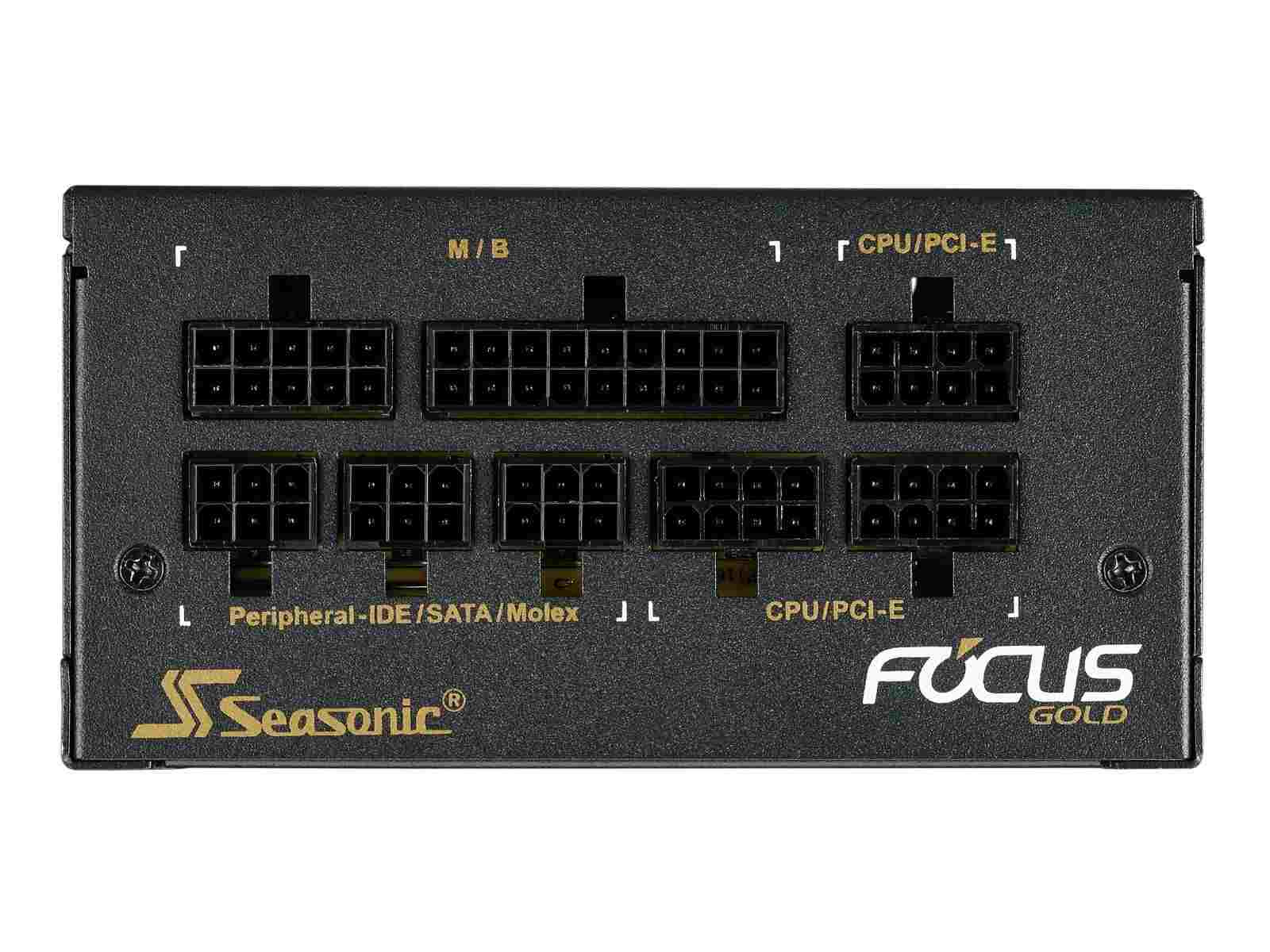

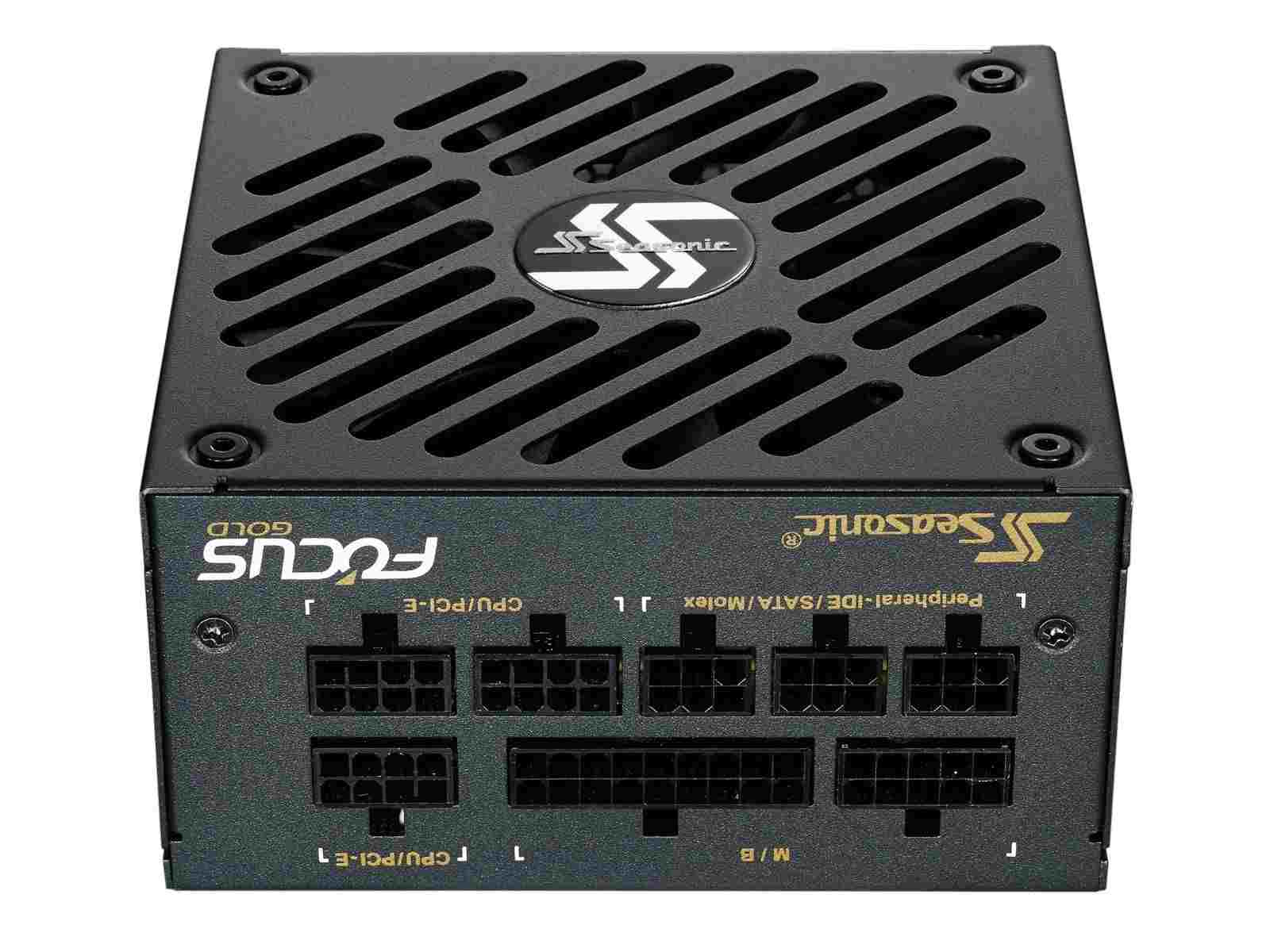

• Cable-free Connection Design

• S3FC - Fanless until 30 % load
• SFX to ATX Expandability
• Gold plated connectors
• 10 years warranty

Specifications

Cables

SSR-500SGX

	Cable type	Connector(s) per cable	Total length (mm)	Number(s) of cable(s) included
	MB (24/20 pins)	1	350	1
	CPU (8/4 pins)	1	400	1
	PCIe (8/6 pins)	2	500	1
	PCIe (8/6 pins)	1	750	0
	SATA	4	810	0
	SATA	4	800	0
	SATA	4	760	0
	SATA	2	700	0
	SATA	3	600	1
	SATA	2	570	0
	SATA	2	470	0
	SATA	2	450	0
	Molex	3	700	1
	Molex	2	470	0
	Molex to SATA 3.3 Adapter	2	300	0
	Molex to FDD Adapter	1	101	0

Technical Specifications
80PLUS®		Gold
Cybenetics Efficiency Level		ETA-A
Cybenetics Noise Level		LAMBDA-S++
Form Factor		Intel SFX 12 V / ATX 12 V
Dimensions		125 mm (L) x 125 mm (W) x 63.5 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 6 - 3 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	41 A	0.3 A	3 A
		100 W		492 W	3.6 W	15 W
	Total continuous power	500 W
