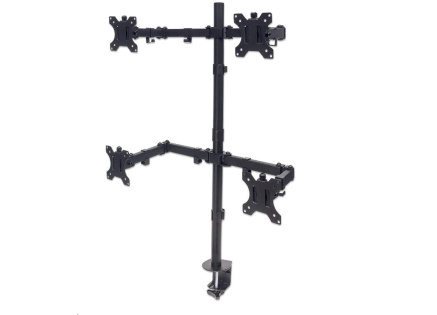

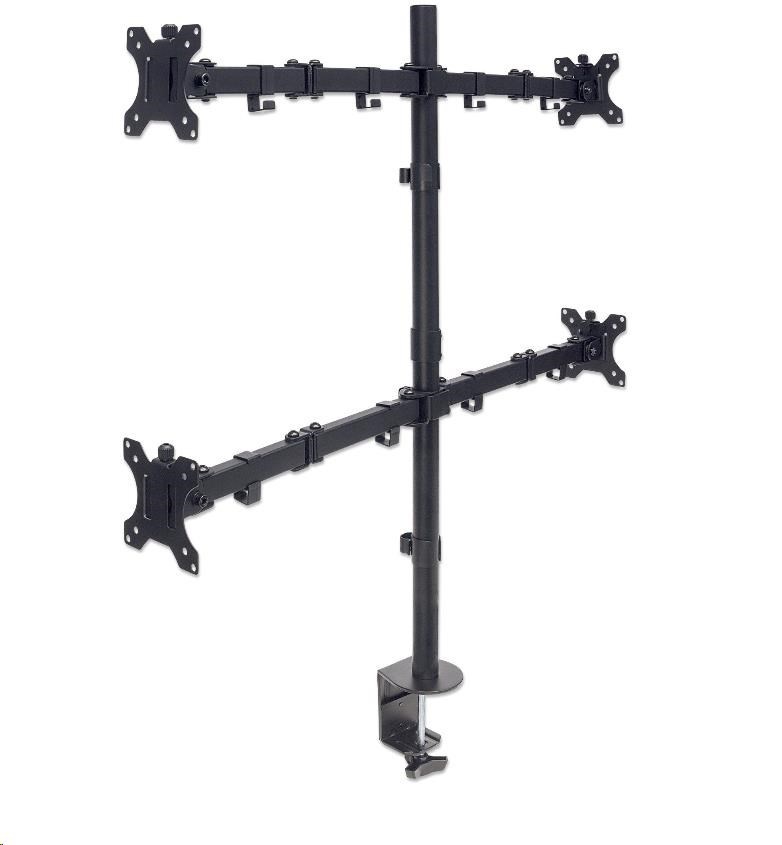

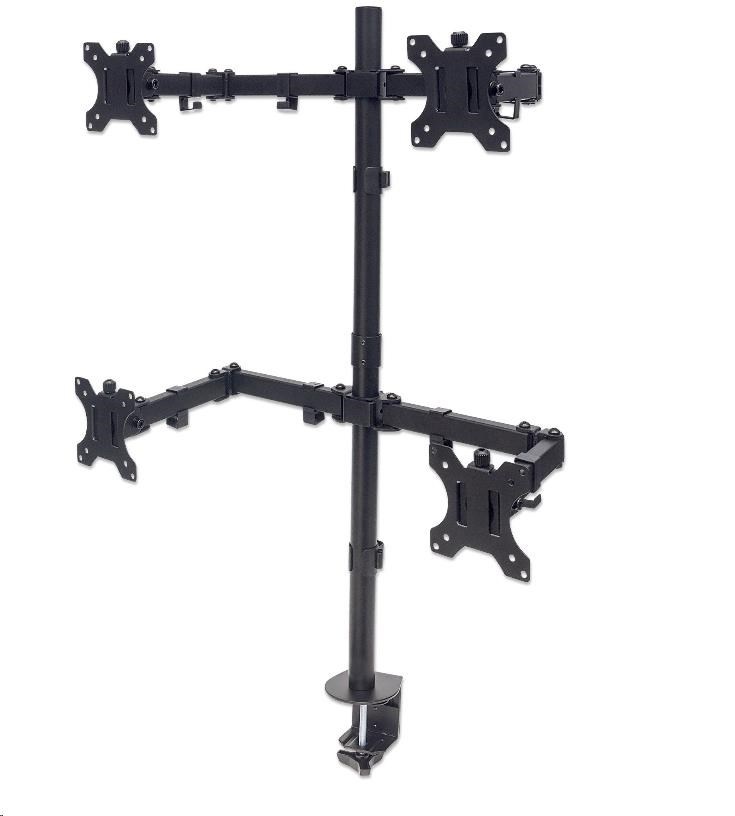

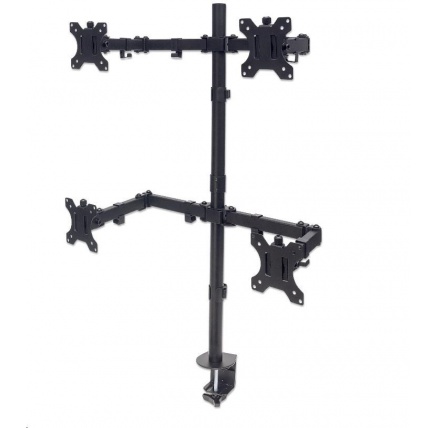

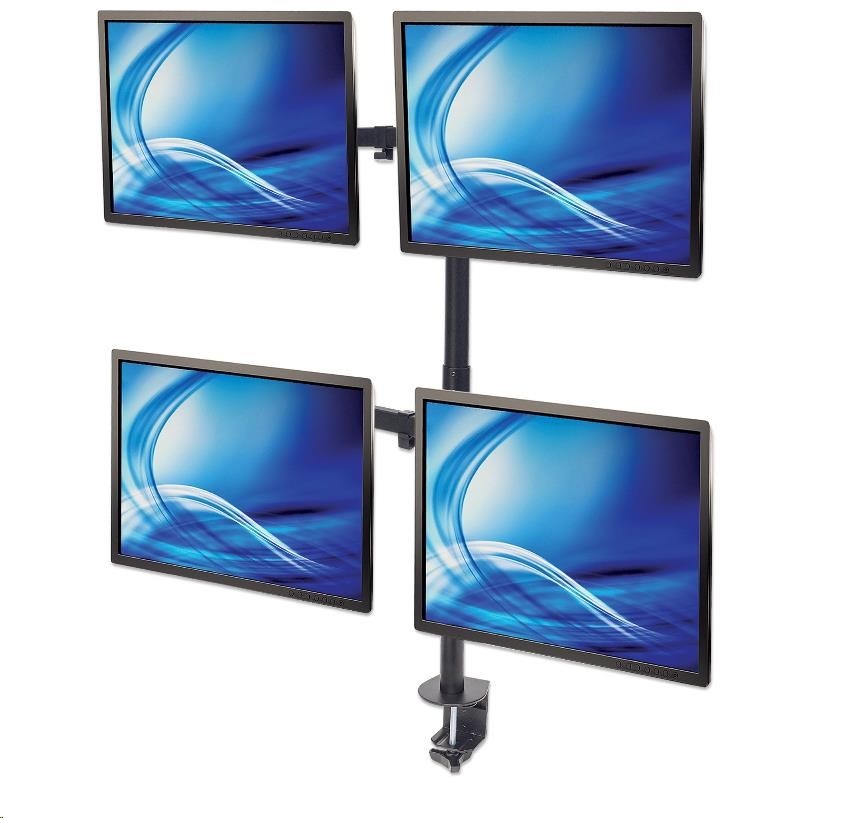

Universal Four Monitor Mount with Double-Link Swing Arms
Holds Four 13" to 32" LCD Monitors up to 8 kg (17 lbs.), Black

• Meets VESA standards — securely holds four LCD monitors from 13” to 32"
• Positions monitors above the desktop to increase work space, improve visibility and minimize clutter
• Double-link swing arms with separate ±45° tilt, ±180° rotation and height adjustments

Manage the desktop. Maximize productivity.
LCD-monitor installation above the desk helps maximize the effectiveness of a potential workspace. The Manhattan Universal Four Monitor Mount with Double-Link Swing Arms improves organization on the desktop, making it easier to get work done on the computer.

Constructed from durable die-cast metal, this four monitor mount features a sturdy clamp that allows for quick, easy and secure mounting without the need to drill holes into desks or countertops. Its fully adjustable tilt, rotate, side-to-side, height and tension settings create the perfect position to comfortably increase productivity. Such adjustment capabilities can even help reduce eye fatigue or neck and back strain. In addition, the mount pole offers easy monitor rotation to allow others to view presentations and multimedia productions from almost any direction.

FEATURES

• Meets VESA standards — securely holds four LCD monitors from 13” to 32"
• Positions monitors above the desktop to increase work space, improve visibility and minimize clutter
• Double-link swing arms with separate ±45° tilt, ±180° rotation and height adjustments
• Steel pole with heavy-duty clamp mount
• Removeable VESA plates, making monitor attachment faster and easier
• Easy adjustment of monitor position
• Ideal for office, studio, IT network and security applications
• Installs easily to any desktop or other surface — no drilling required
• Lifetime Warranty

SPECIFICATIONS

• General
  Fits 75 x 75 mm / 100 x 100 mm VESA-compliant monitors
  Monitor weight capacity: up to 8 kg (17 lbs.) each
  Installs on horizontal surfaces up to 10 – 85 mm (3.3 in.) thick
• Dimensions
  Height (pole): 883 mm (34.8 in.)
  Arm length (radius): 399 mm (15.7 in.)
  Arm width (extended): 798 mm (31.4 in.)
• Package Contents
  Universal Four Monitor Mount with Double-Link Swing Arms
  Cable management clips and trim caps
  C-clamp with thumb screws
  Monitor mounting and assembly screws
  Installation hardware with instructions and hex tool
