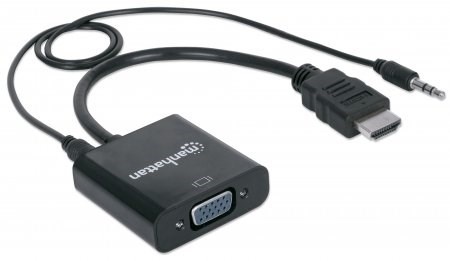

Easily connect an HDMI source with a VGA display.

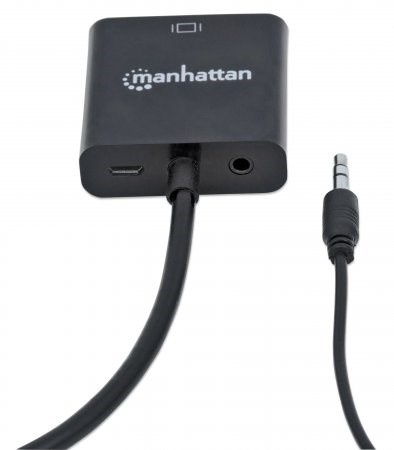

The Manhattan HDMI to VGA Converter helps establish a fast, simple and convenient link between newer HDMI-equipped desktop and notebook computers and other media sources with existing VGA monitors, projectors and other display devices. The Manhattan HDMI to VGA Converter is easy and quick to install and requires no complicated configuration or setup to help extend the service life and fully realize the investment and value of legacy VGA displays, projectors and other equipment. This low-power, cost-effective and reliable solution allows users to transition to HDMI bandwidths, resolutions, Deep Color and more without the expense of upgrading to newer and costly monitors and projectors. Its integrated, all-in-one design helps achieve a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly. Its 3.5mm stereo port allows the converter to transmit audio to an external audio device with convenient, included 3.5mm audio cable, and its Micro-USB port allows for additional power if required.

Features:

Converts an HDMI digital signal to a VGA analog video, with audio output port
Enjoy high-definition images on a VGA monitor, projector or other display device; supports 1080p analog video output
Fully shielded to reduce EMI and other interference sources
Gold-plated contacts for best performance
Molded PVC boot and strain relief
Micro-USB port if additional power is required
Three-Year Warranty

Specifications:

Standards and Certifications
UL20276
HDMI 1.3

Contacts
HDMI 19-pin male, gold plated
VGA 15-pin female, nickel plated
3.5mm male, gold plated
3.5mm female, nickel plated
Micro-USB female, nickel plated
Molded PVC boot
Shielded

Converter
30 AWG connectors
Mylar and aluminum shielding
Withstanding voltage: 300 VDC
Insulation resistance: 10 MΩ
Conductive resistance: 5 Ω
Thermal plastic casing
Length: 30 cm (12 in.)
Weight: 34 g (1.2 oz.)

Audio Cable
3.5mm male (2)
32 AWG cable
Withstanding voltage: 300 VDC
PVC jacket
Length: 0.5 m (1.5 ft.)

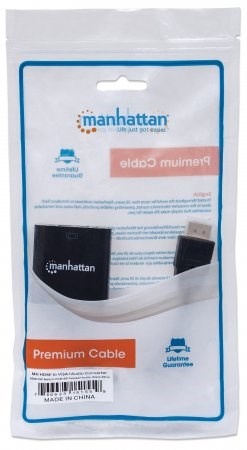

Package Contents
HDMI to VGA Converter
Stereo audio cable
