High-definition performance for personal computing.

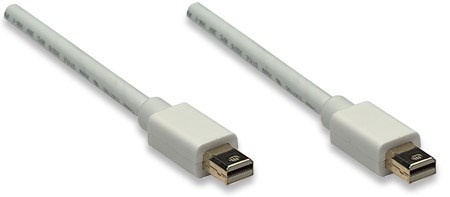

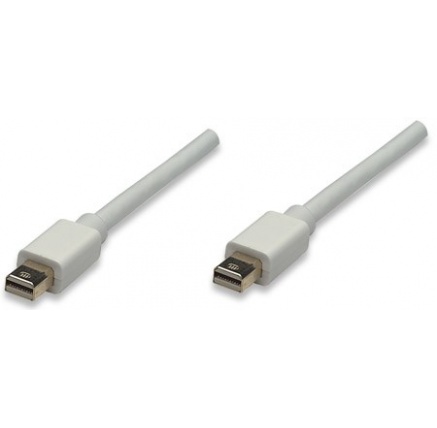

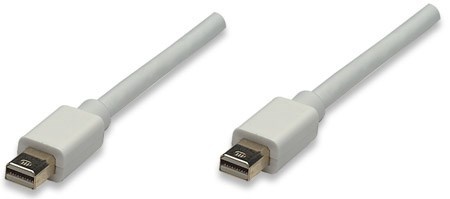

Manhattan Mini DisplayPort cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 14.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

Features:

• Mini DisplayPort 20-pin male to Mini DisplayPort 20-pin male with strain relief boots
• Delivers high-bandwidth, bi-directional, 14.8 Gbps, digital audio/visual signals from source to display — up to 4Kx2K@60Hz
• 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color
• Dolby and DTS-HD 2/5.1/7.1/8 uncompressed surround sound audio pass-through
• Fully shielded to reduce EMI and other interference sources
• Supports the HDCP and DPCP content protection standards
• Lifetime Warranty

Specifications:

Standards and Certifications

• UL 20276
• DisplayPort 1.2
• ISO 9002
  General
• Bandwidth: 14.8 Gbps at 600 MHz
• Meets or exceeds existing DisplayPort standards
• Length: 1 m
  Connectors
• Mini DisplayPort 20-pin male (2)
• Gold plated
• Gold-plated contacts
• ABS boots, built-in ABS strain relief
  Cable
• 32 AWG
• Shielding: aluminum and Mylar braid
• Withstanding voltage: 300 VDC
• Insulation resistance: 5 M?
• Contact resistance: 10 Ohms
• Current rating: 0.5 A DC
• Conductive resistance: 5 Ohms
• Thermal plastic casing
  Operating Environment
• Operation Temperature: 0 - 50°C (32 - 122°F)
• Storage Temperature: -25 - 85°C (-13 - 185°F)
• Humidity (noncondensing): 0 - 96%
  Package Contents
• Mini DisplayPort Cable
