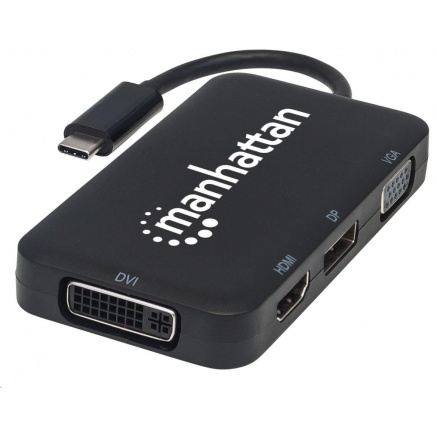

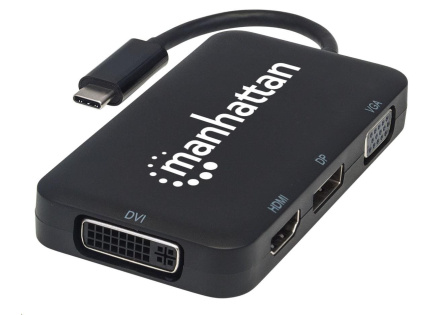

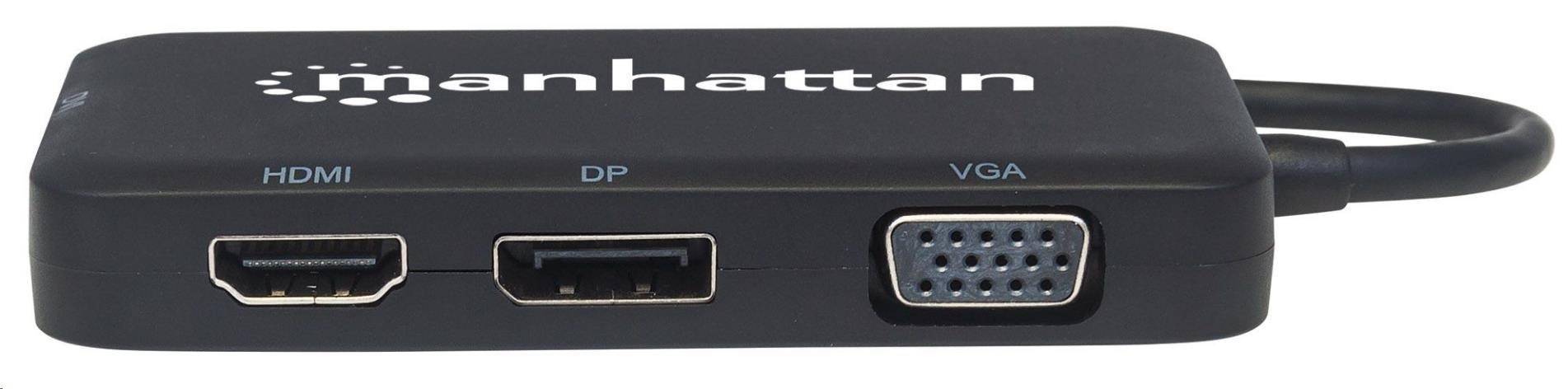

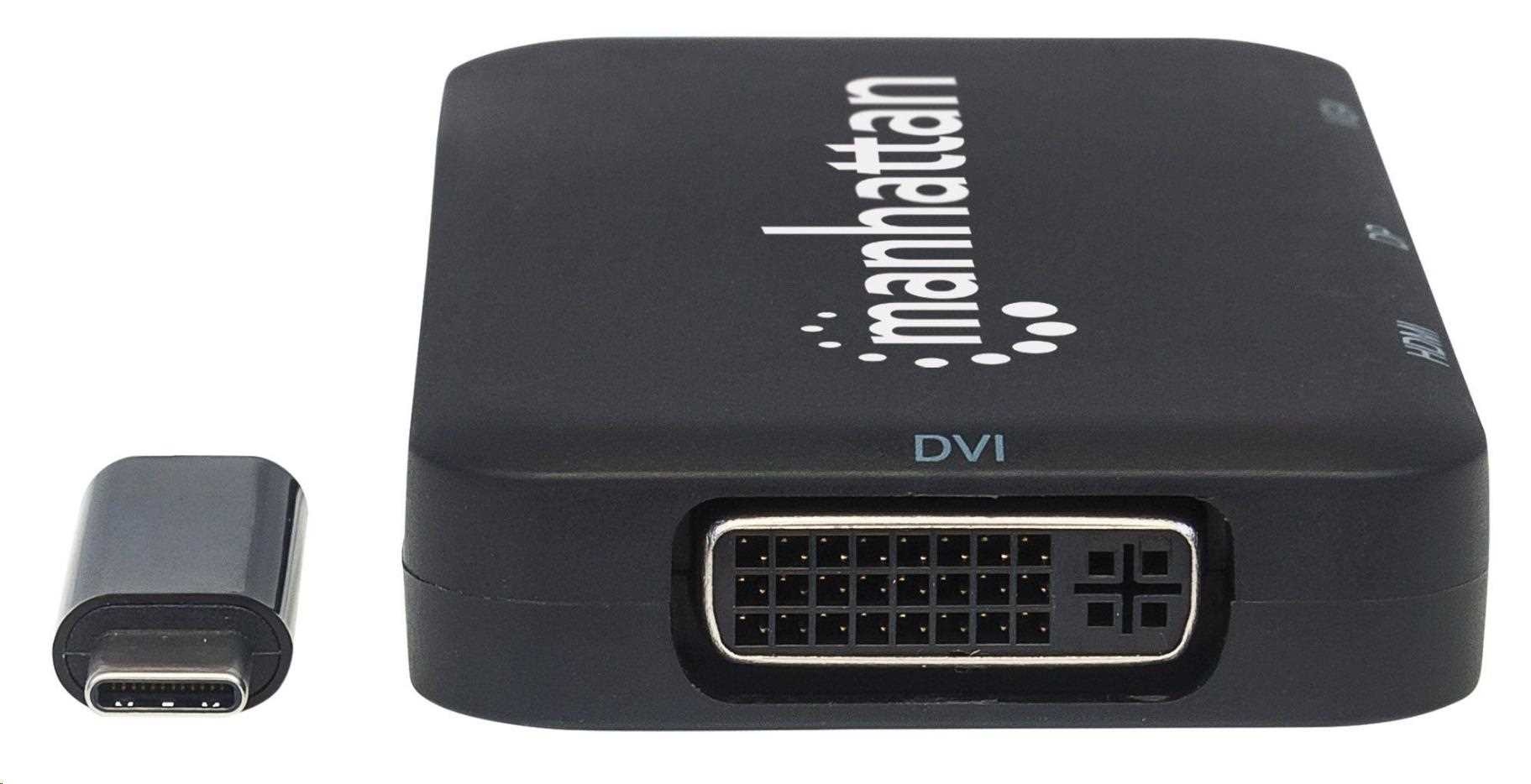

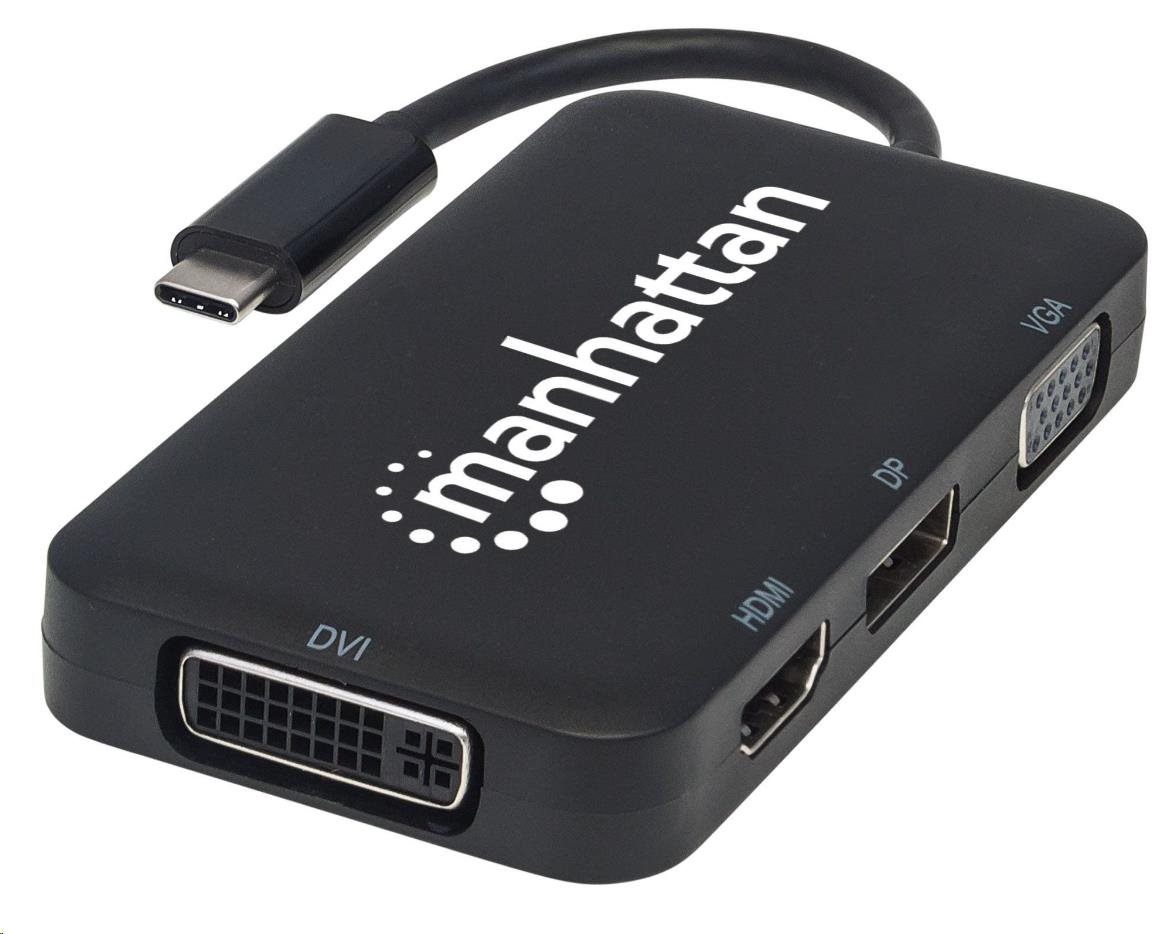

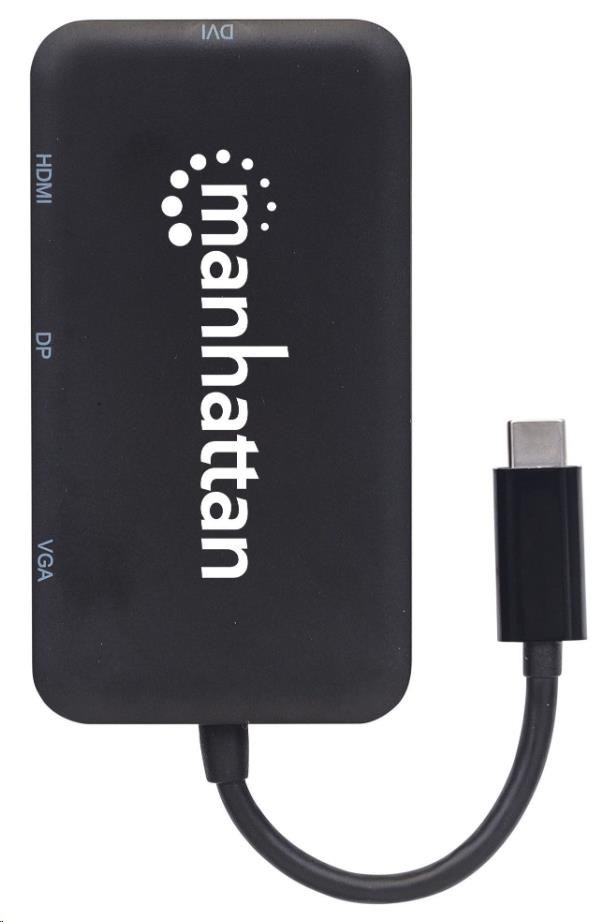

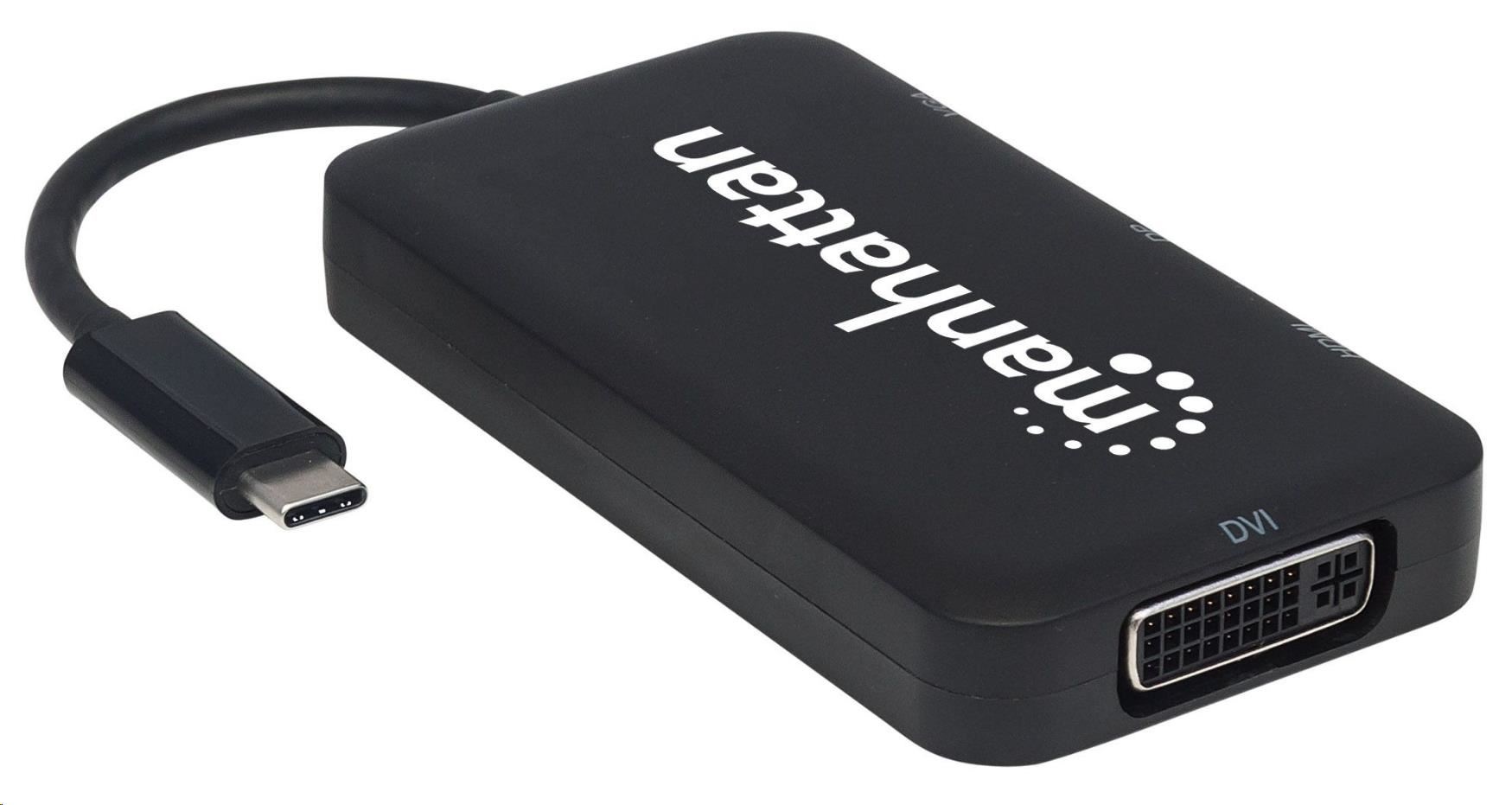

USB-C 4-in-1 Audio/Video Converter
USB 3.1 Type-C Male to HDMI/DP/VGA/DVI Female, Black

• 4-in-1 adapter converts USB to an HDMI, DP, VGA or DVI video and audio signal
• Offers Ultra-High-Definition (UHD) images on an HDMI monitor, projector or other display device
• Supports video resolutions up to: 3840x2160 at 30 Hz (4K) in HDMI, 4K@60Hz UHD in DP or 1920x1080 at 60 Hz in VGA or DVI
• Compliant with DisplayPort 1.2 Alternate Mode (DP Altmode)
• Plug and Play; requires no external power supply
• Compatible with all USB Type-C, DP Alt mode and Power Deliver 2.0 supported desktops, notebooks and tablets including Apple MacBook,
• Chromebook Pixel and more
• Compact, portable design; perfect for traveling and connecting to any display
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Three-Year Warranty

OVERVIEW

Easily connect a USB Type-C source with an HDMI, DP, VGA or DVI display.

The Manhattan USB-C 4-in-1 Audio/Video Converter establishes a fast, simple and convenient link between newer USB Type-C equipped media sources (computers, tablets, Smartphones, etc.) and existing HDMI, DisplayPort, VGA or DVI displays (monitors, projectors, etc.). The Manhattan USB-C 4-in-1 Audio/Video Converter is easy and quick to install — no complicated configuration or setup required. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly. Extend the service life of your equipment, and fully realize the investment and value of your HDMI, DP, VGA or DVI displays, projectors and peripherals with a Manhattan USB-C 4-in-1 Audio/Video Converter.

SPECIFICATIONS

• Standards and Certifications
  USB 3.1
  HDMI
  HDCP 1.4
  CE
  FCC
  RoHS2
  WEEE
• General
  Video Resolutions: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1080, 1920 x 1200, 3840 x 2160 at 30 Hz, 4K@60Hz
  32 AWG connectors
  Shielding: Mylar and aluminum
  Withstanding voltage: 300 V DC
  Insulation resistance: 5 M?
  Conductive resistance: 10 ?
  Supports one output at a time
  If multiple connections are made, port priority will be DP>HDMI>DVI>VGA
  Note: DVI and VGA do not support Audio
• Connections
  USB Type-C 24-pin, male
  HDMI 19-pin, female
  DP 20-pin, female
  DVI Single Link, 29-pin, female
  VGA 15-pin, female
  Shielded
• Physical
  32 AWG cable gauge
  Mylar and aluminum shielding
  Thermal plastic casing
  Length: 8 cm (3 in.)
  Weight: 31 g (1.1 oz.)
  Shielded
  Housing: ABS plastic
• Operating Environment
  Operation Temperature: 32 – 122°F (0 – 50°C)
  Storage Temperature: -22 – 176°F (-30 – 80°C)
  Humidity (noncondensing): 5 – 90%
• System Requirements
  Windows 8.1/10 or Linux or Mac 10.10.5 or above
• Package Contents
  USB-C 4-in-1 Audio/Video Converter
  Quick Instruction Guide
• Weight: 0.05 kg
• Dimensions: 250 (L) x 96 (W) x 51 (H) [mm]
