Improve speed, accuracy and productivity with wireless freedom.

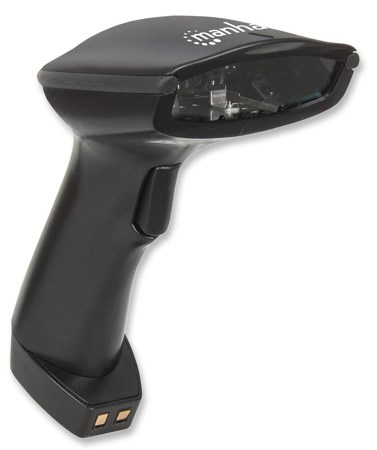

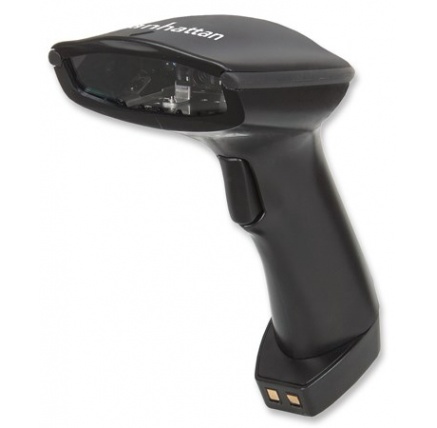

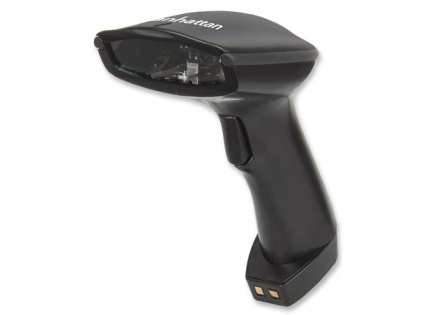

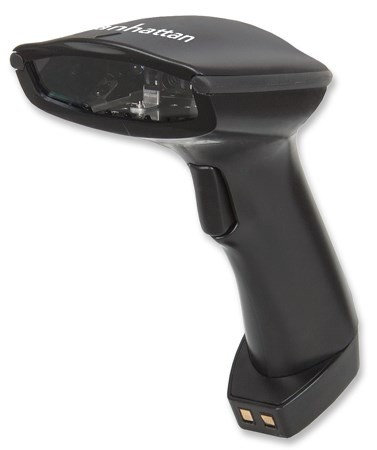

Manhattan Wireless Bluetooth CCD Long-Range Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. When out of range of the paired Bluetooth device, the handset is able to store up to 3,000 scans. The CCD (charge-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. Its Bluetooth technology provides a convenient operation range of up to 80 m (264 ft.) from the recharging base. With a scan rate of 500 scans per second and an accurate read range of up to 500 mm (20 in.), this model offers a high-performance, all-purpose daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.

Features:

Helps speed data entry, reduce errors and improve efficiency; ideal for retail transactions and automated processes
Wireless Bluetooth technology offers effective range up to 80 m (264 ft.) in line of sight
Keyboard Wedge Decoder displays data as if directly entered from keyboard
Wide scan field provides quick, accurate reads with up to 500 scans per second up to 500 mm (20 in.) away
Detects many popular symbologies including UPC, EAN, 1D barcodes, ASCII, GS1 DataBar Family and more
Switchable interface integrates with most PCs
Easy to install and use without software or special training
Three-Year Warranty

Specifications:

Standards and Certifications
FCC
CE
RoHS

General
Light source: 632 nm visible red LED
Scanner range: 500 mm
Resolution: 0.1 mm (4 mil) @ PCS 0.9
Reading indicator: tone and LED
Ambient light: 100,000 lux maximum (sunlight)
Scan rate: Smart Detection, up to 500 scans/second
Interface: wireless to base; base to PC, KBW / RS232 / USB (HID or Virtual Comport)
Switch: trigger

Wireless
Bluetooth: V2.1, Class I
HID and SPP profiles
Range: 80 m (264 ft.) in line of sight

Code Support
UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code 32/ Italian Pharmacy, Code 128, Codabar/MW7, Interleave 25, Industrial 25, Matrix25, MSI/PLESSEY, Telepan, Code 93, Code 11, China Postage, Code26, LCD25, GS1 DataBar (RSS code)

Physical
Dimensions, scanner: 18.3 x 9 x 7 cm (7 x 3.5 x 2.76 in.); base, 19 x 9.5 x 4 cm (7.5 x 3.7 x 1.6 in.)
Weight: scanner 0.20 kg (0.44 lbs.); cradle 0.10 kg (0.22 lbs.)
Operating temperature: 0 - 50°C
Storage temperature: -20 - 60°C
Relative humidity: 20 - 95% (non-condensing)
Housing: ABS and rubber

Electrical (Scanner)
Supply voltage: battery Li-ion 3.7 V
Battery type: Li-ion battery 1100 mAh
Reads per charge: 8,000 continuous reads
Recharge time: 3.5 hours
Current draw: 150 mA

Electrical (Receiver)
Supply voltage: DC +5 V +/- 5%
Current draw: 70 mA

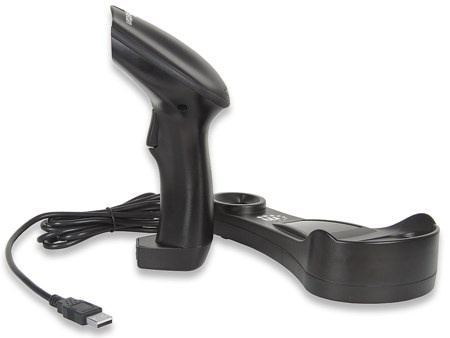

Package Contents
Linear CCD Wireless Bluetooth Barcode Scanner

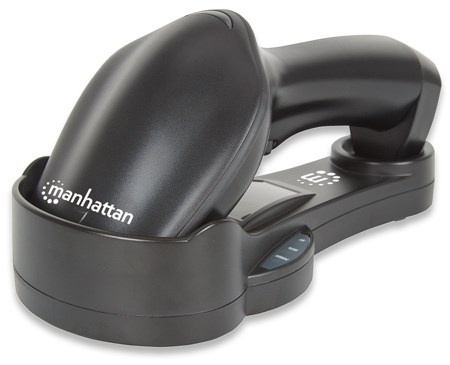

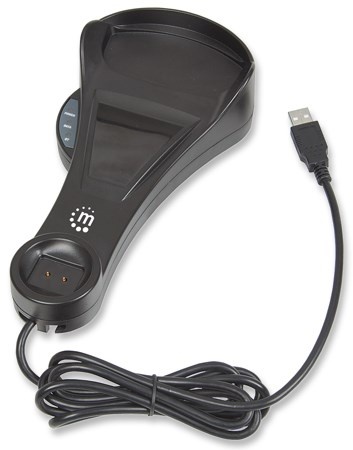

Receiver/recharge base
Power and RJ50 to USB cables
User manual
