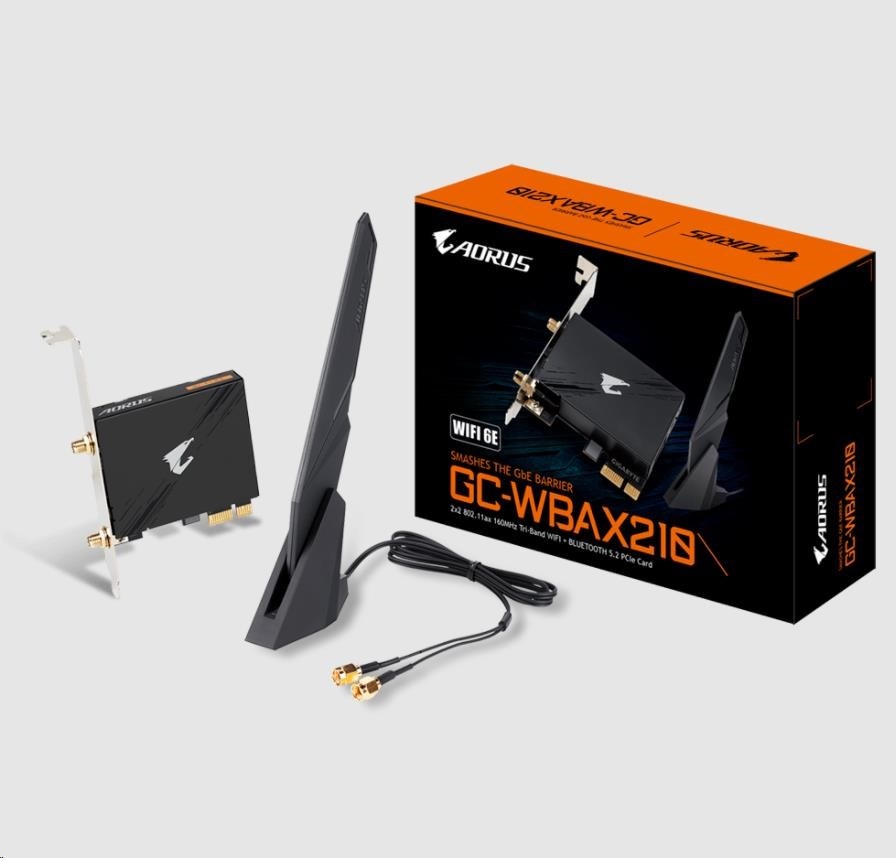

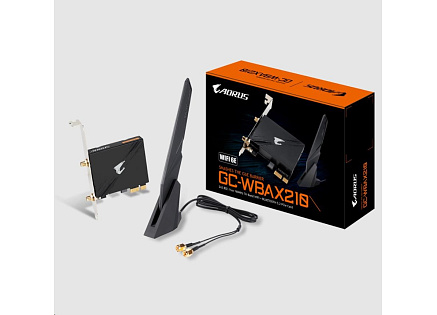

GC-WBAX210

• Intel® WI-FI 6E AX210 module built-in
• Dedicated spectrum in 6GHz band for maximum speed and ultra-low latencies
• Support dual-stream Wireless in the 2.4GHz, 5GHz and 6GHz bands
• IEEE 802.11.acR2+ax compliant
• High speed wireless connection up to 2400Mbps
• Fully qualified BLUETOOTH 5.2
• MU-MIMO TX/RX
• Paired with AORUS high performance 2Tx2R antenna

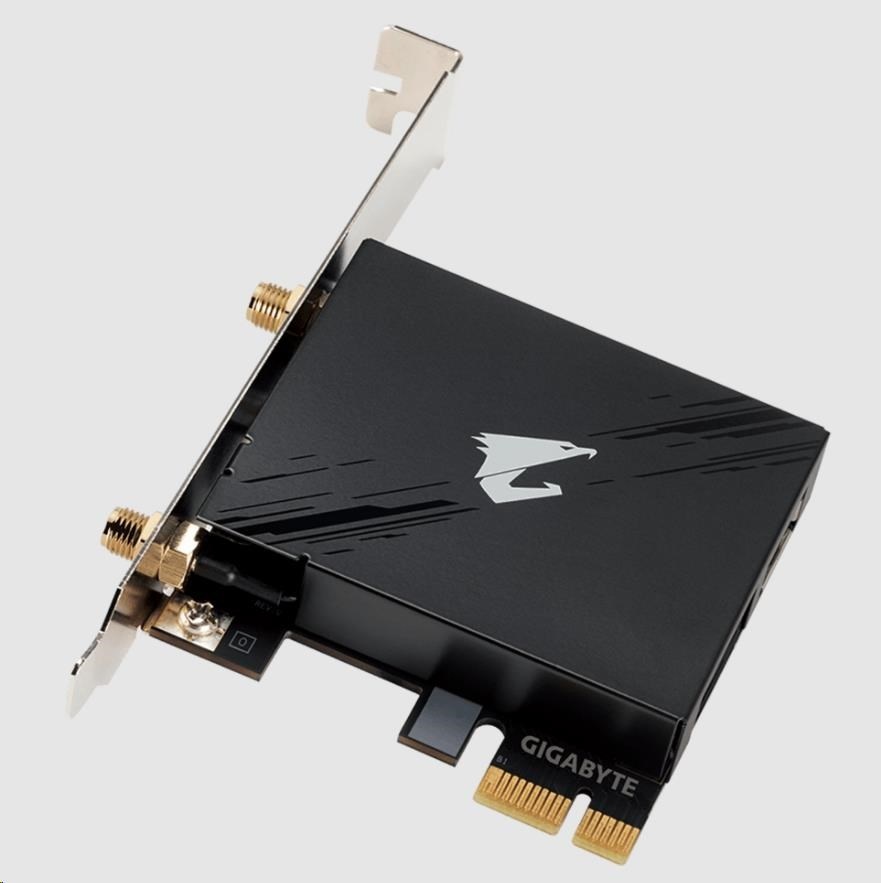

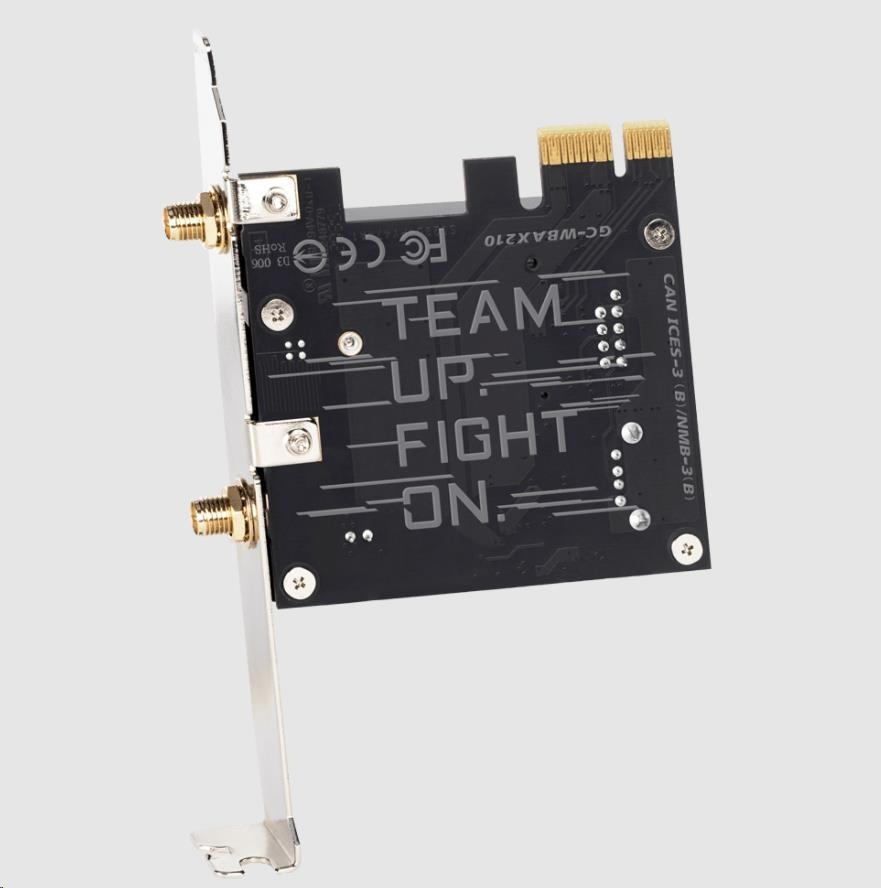

• PCIe x1 interface card

BLUETOOTH Function

Standard : BLUETOOTH 5.2

WIFI Function

Wireless Alliance*:
Wi-Fi CERTIFIED 6*, CERTIFIED* a/b/g/n/ac WMM*, WMM*-Power Save, WPA3, PMF*, Wi-Fi Direct*, WIFI Agile Multiband.
* Support of Wi-Fi Alliance certifications is OS-dependent.

IEEE WLAN Standard:
IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, d ,e ,g ,h ,I ,k , n ,r ,u ,v ,w ,ac ,ax ; Fine Timing Measurement based on 802.11-2016, Wi-Fi Location R2 (802.11az) HW readiness*
* IEEE 802.11az hardware readiness per expected Wi-Fi Location R2 feature support and based on draft 2.1 of the IEEE 802.11az amendment and is subject to change.
* Wi-Fi 6E and its 6GHz carrier frequency support may vary by country.
Security Features*:
Security Methods - WPA2* ; WPA3 *
Authentication Protocols - 802.1X EAP-TLS,EAP-TTLS/MSCHAPv2, PEAPv0 –MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
* Some security solutions may not be supported by your device operating system and/or by your device manufacturer or may require additional hardware (e.g UICC_SIM card).Check with your device manufacturer for details on availability.
