CPU

1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
2. L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.

Chipset

1. Intel® B760 Express Chipset

Memory

1. Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)

Audio

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

LAN

1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

PCB Rev. 1.2, 1.0
Intel® Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
PCB Rev. 1.3, 1.1
Realtek® Wi-Fi 6E RTL8852CE
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Support for AMD CrossFireX™ technology

Storage Interface

CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:
1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 1 x USB 3.2 Gen 1 port on the back panel
5. 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports on the back panel

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 3 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 2 x M.2 Socket 3 connectors
9. 4 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
13. 1 x USB 3.2 Gen 1 header
14. 2 x USB 2.0/1.1 headers
15. 2 x Thunderbolt™ add-in card connectors
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17. 1 x Q-Flash Plus button
18. 1 x reset button
19. 1 x reset jumper
20. 1 x Clear CMOS jumper

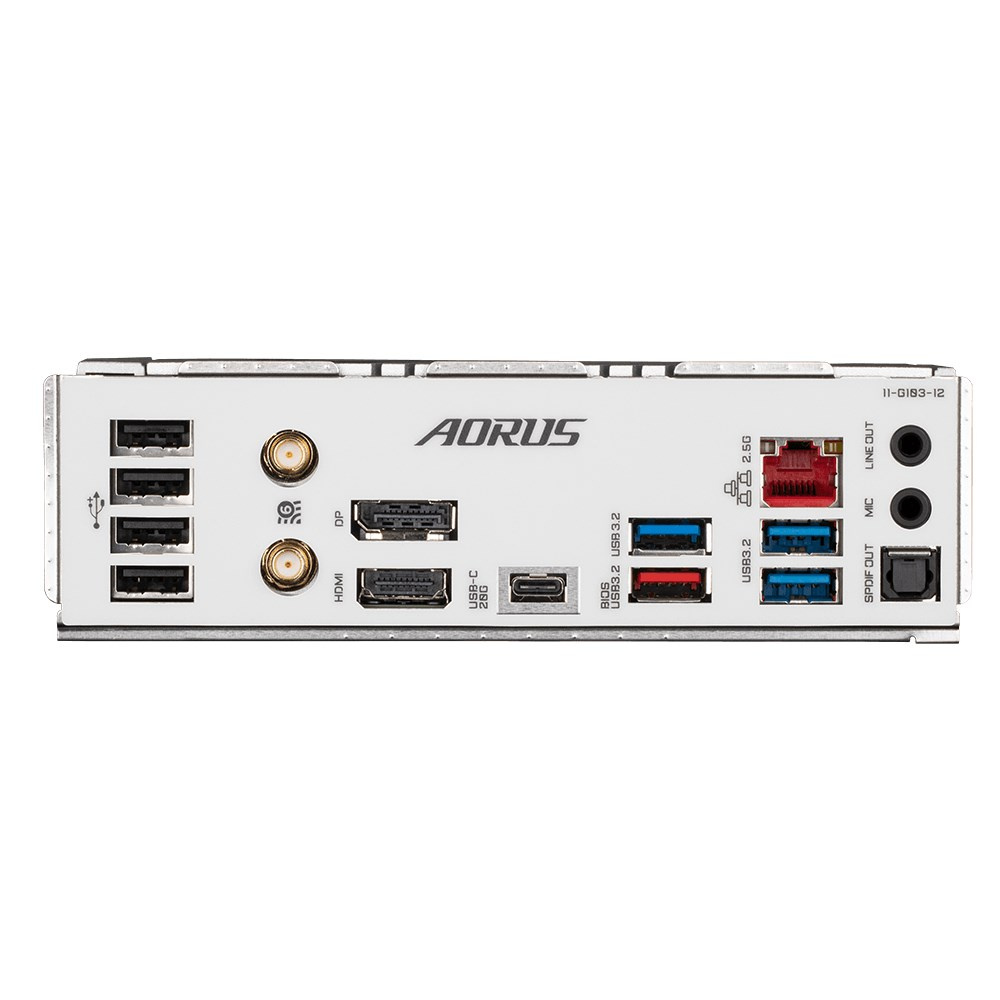

Back Panel Connectors

1. 2 x SMA antenna connectors (2T2R)
2. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
3. 1 x USB 3.2 Gen 2 Type-A port (red)
4. 3 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x HDMI port
7. 1 x DisplayPort
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 2 x audio jacks

I/O Controller

1. iTE® I/O Controller Chip

H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus

Bundled Software

1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software

Operating System

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Form Factor

1. Micro ATX Form Factor; 24.4cm x 24.4cm
