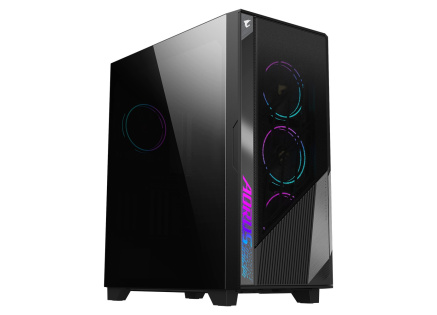

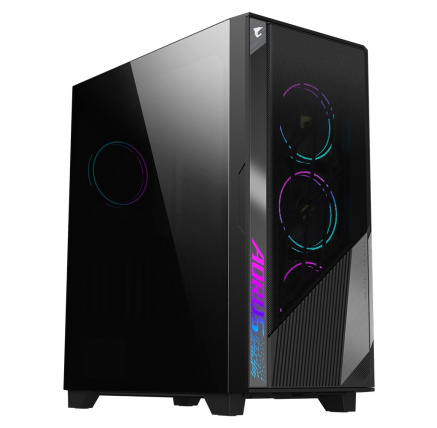

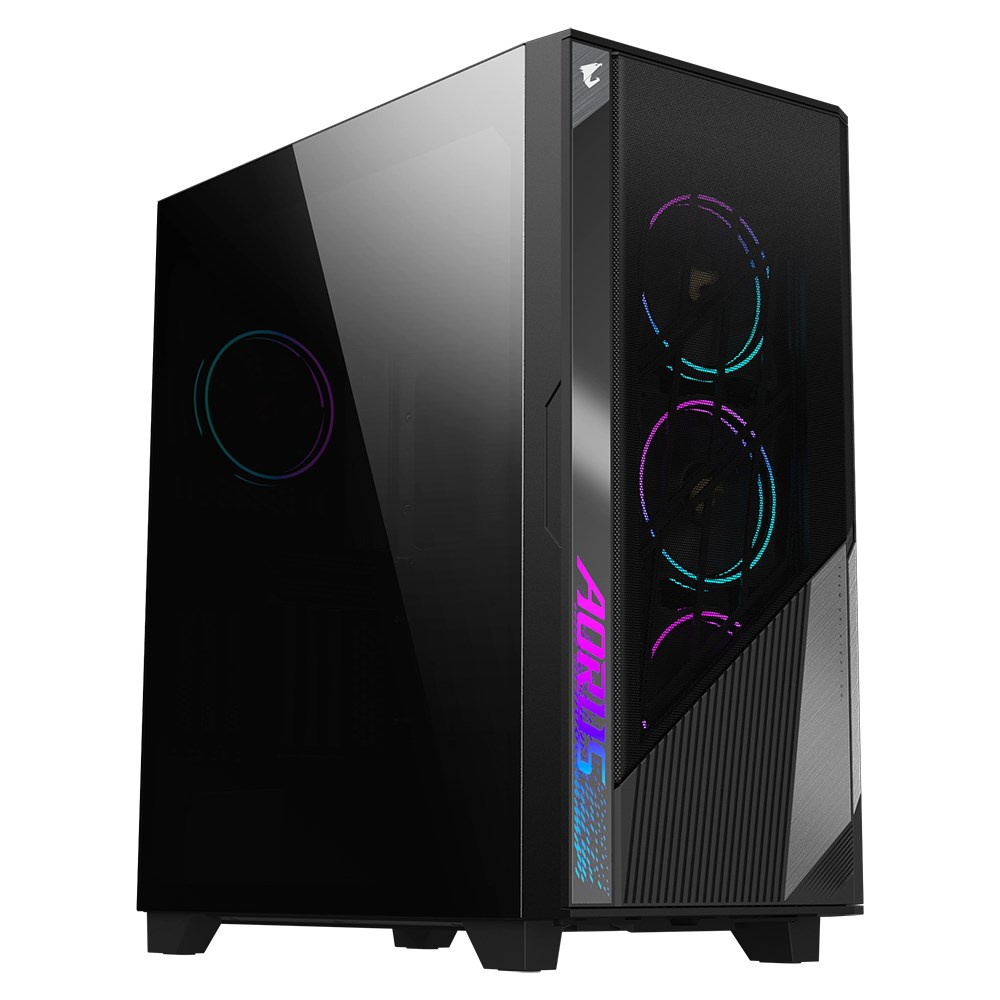

AORUS C500 GLASS

• Optimized Airflow design
• Support Motherboards up to E-ATX
• Up to 420mm Liquid Cooling Compatible
• Support Vertical GPU Installation
• Modular Easy Installation

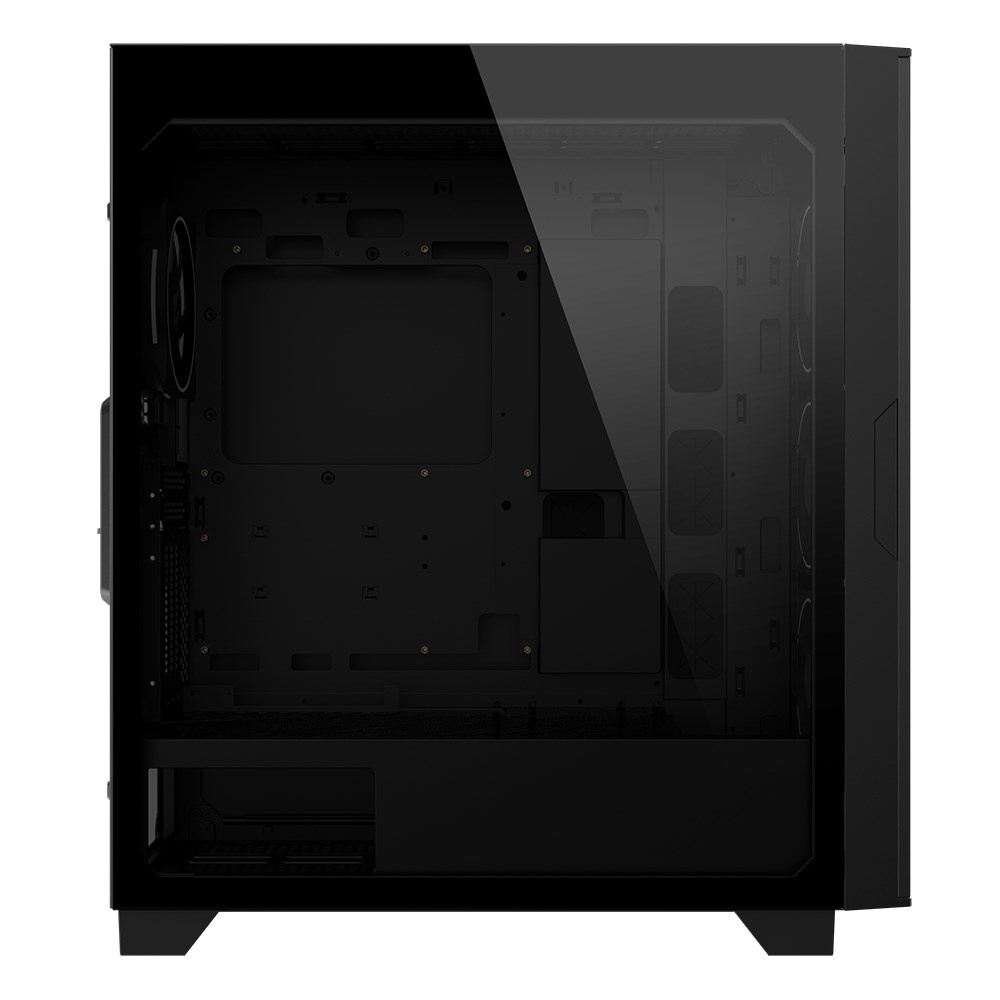

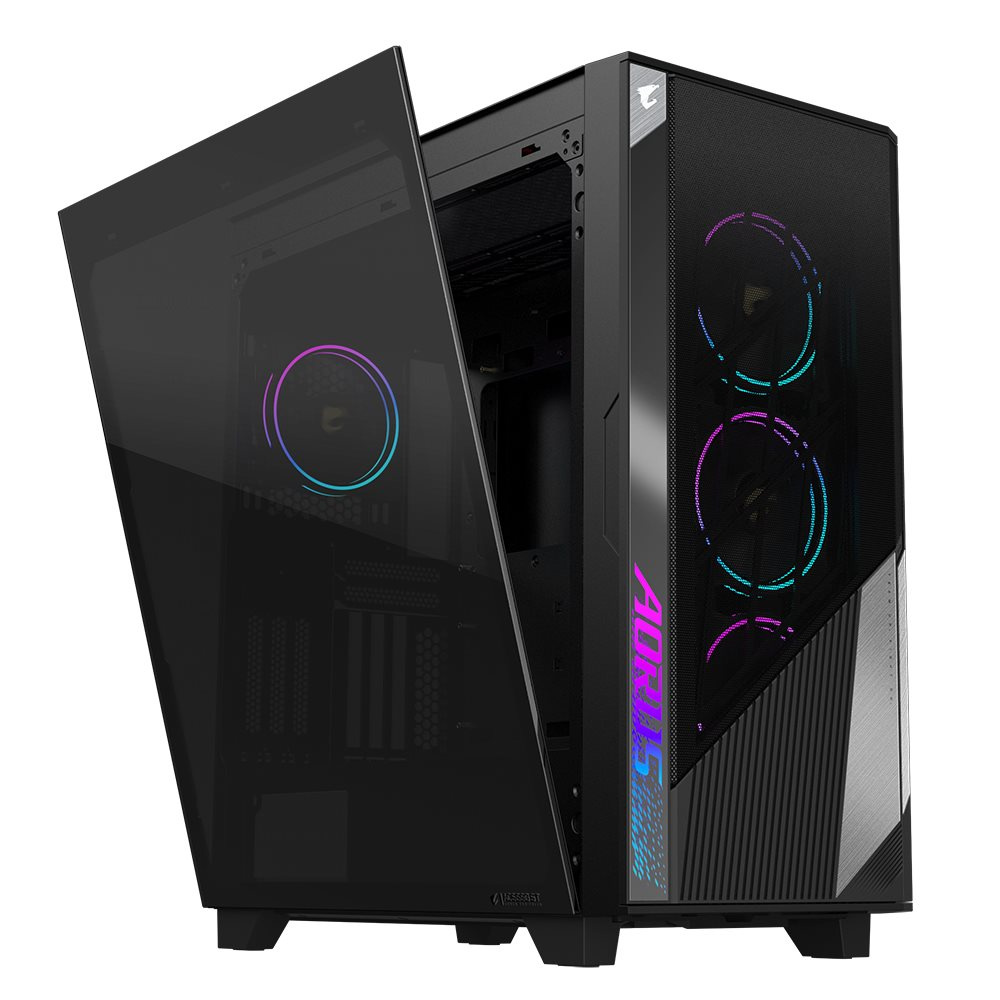

• Full-Size Tempered Glass Side Panel
• With USB 3.0 x2 and USB 3.1 Gen2 Type-C x1 on I/O panel
• RGB Fusion 2.0
• Pre-installed 4 fans with ARGB & PWM Connector Hub

Case Form Factor

Mid Tower

M/B Type

Mini ITX / Micro ATX / ATX / E-ATX

Color

Black

Materials

Steel, Plastic, Glass

Dimensions

H=548 W=250 D=482 mm (Within ± 1% error)

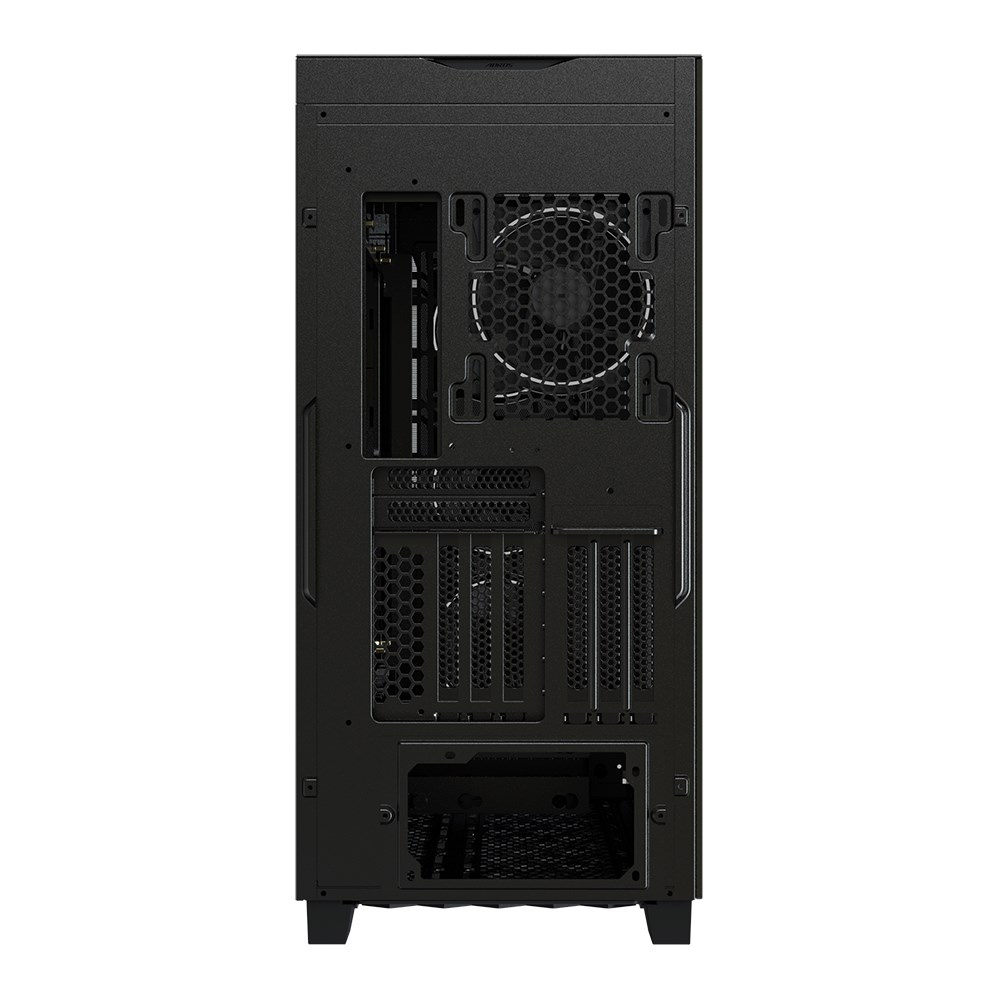

Expansion slots

8 + 3 (Requires PCIE Riser Cable)

5.25" Drive Bays

None

3.5“/2.5” Drive Bays

2

2.5" Drive Bays

2

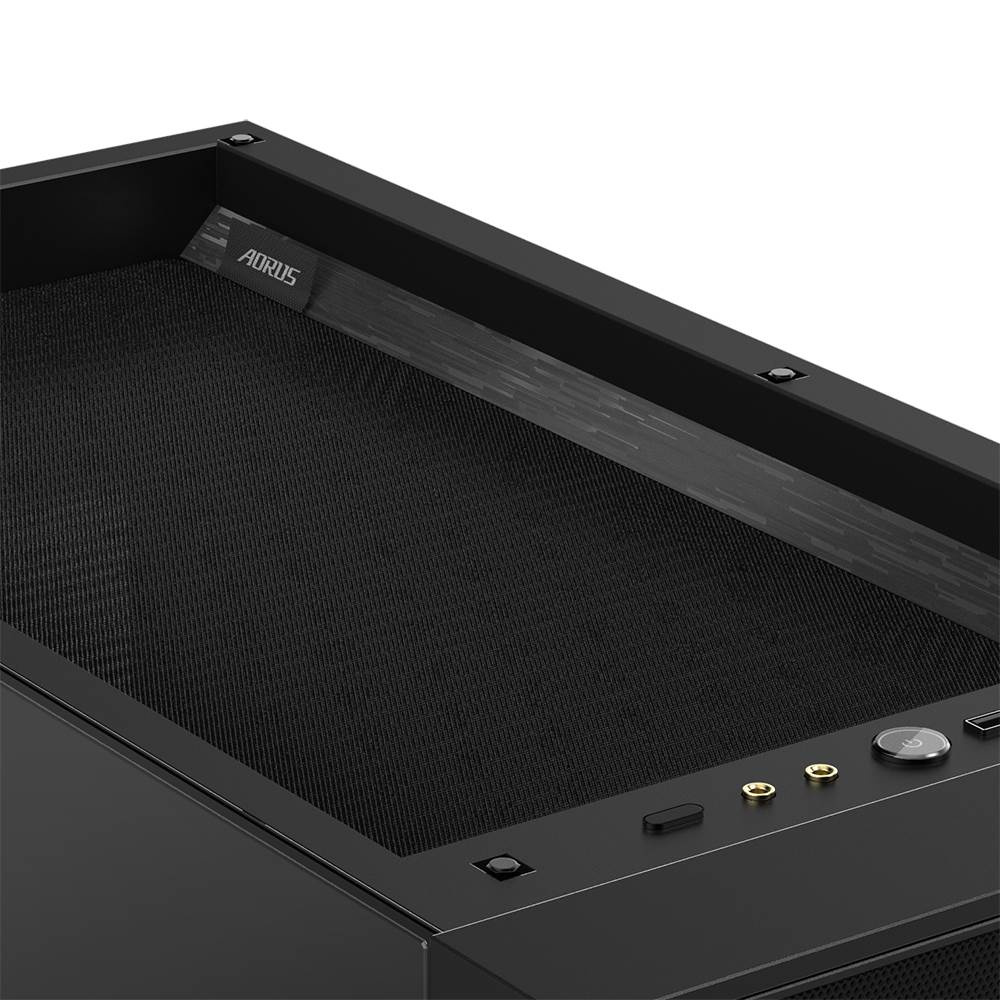

I/O Panel

USB 3.1 Gen2 Type-C x1 / USB 3.0 x2 / Audio In & Out
(supports AC97 /HD Audio)

Pre-installed Fan

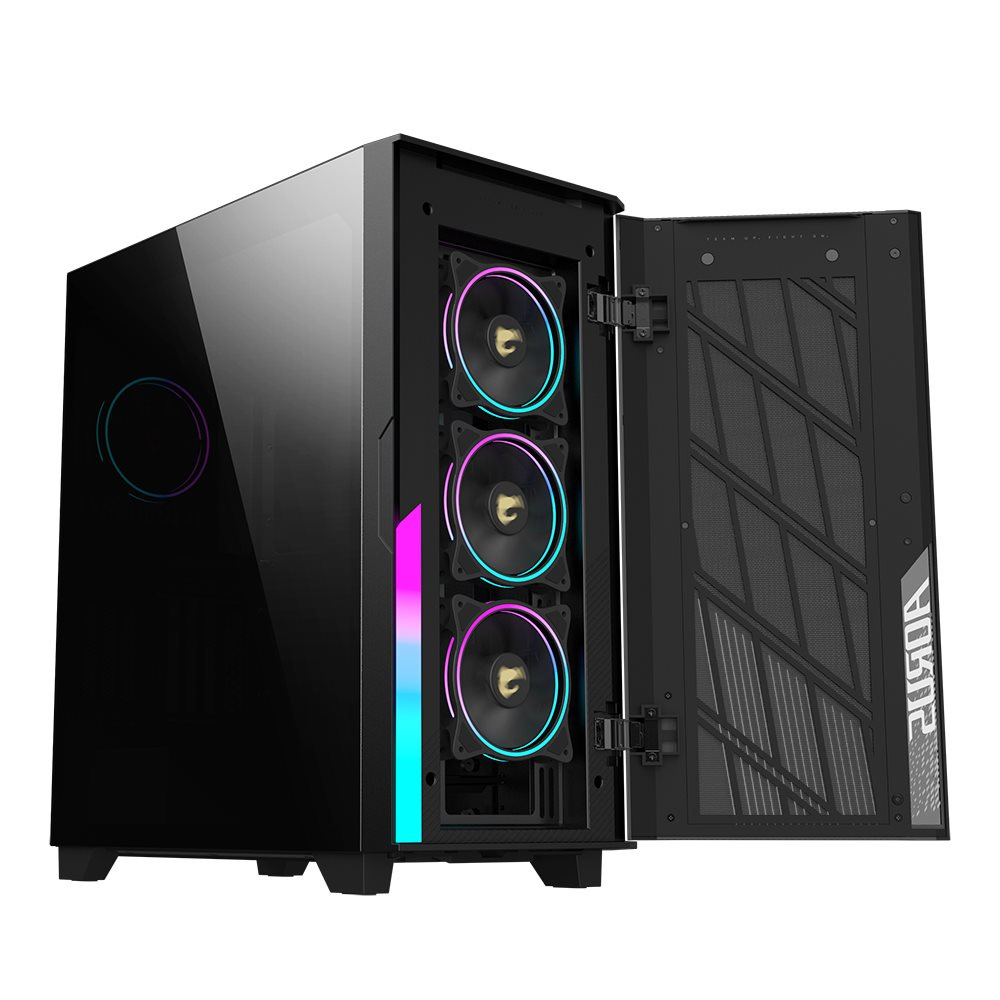

Front : 120mm x3 (ARGB & PWM)
Rear : 120mm x1 (ARGB & PWM)

Fan Support

Front : 120mm x3 / 140mm x3
Top : 120mm x3 / 140mm x2
Rear : 120mm x1 / 140mm x1

Radiator Support

Front : Max 420mm
Top : Max 360mm
Rear : 140mm

Power Supply Type

Standard ATX (Not included)

Maximum Compatibility

CPU Height : 190mm
GPU Length : 420mm
PSU Length : 220mm

Vertical GPU Mount

Yes (Default: 73mm total clearance / VGA holder bracket: 160mm total clearance)

Dust Filters

Top, Front, Bottom

RGB Lighting

Yes (Support RGB Fusion 2.0)

Weight

N.W. 13.4 Kg

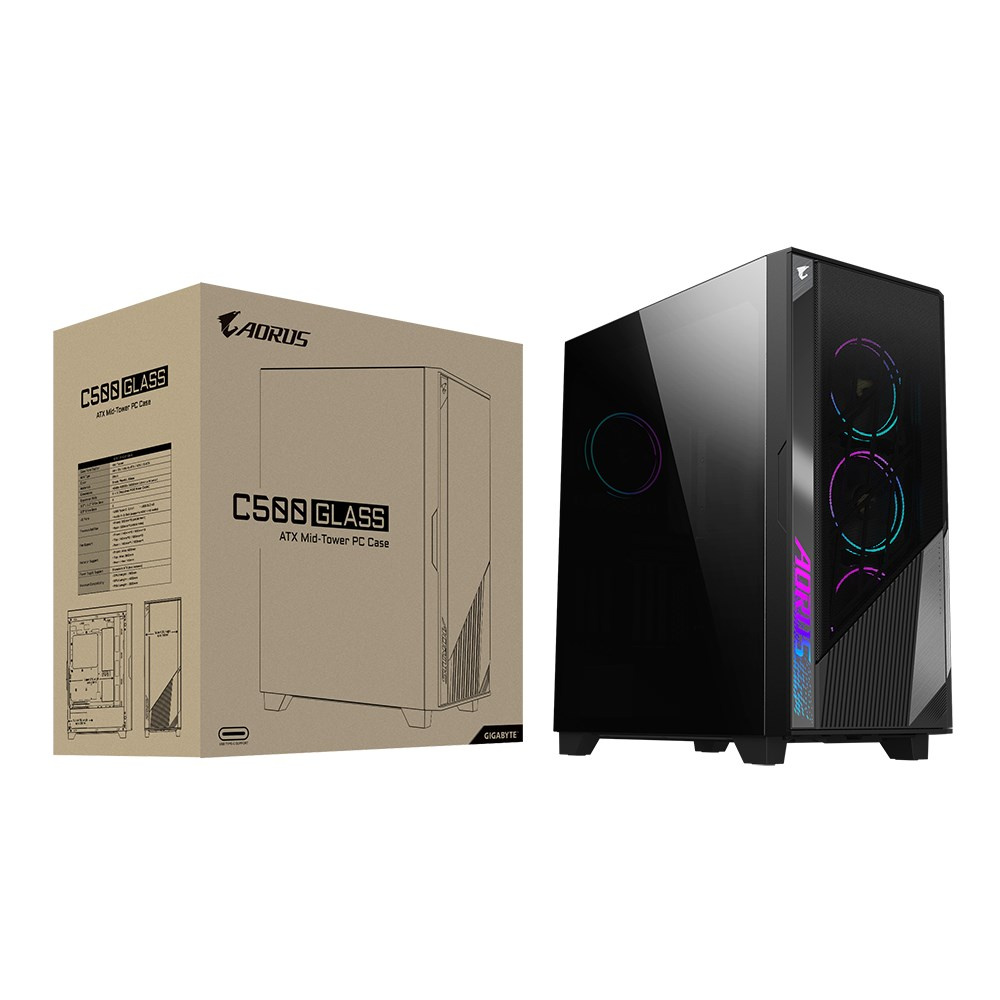

Package Dimensions

H=594 W=336 D=584 mm

Accessories

1. Manual
2. Accessories kit
