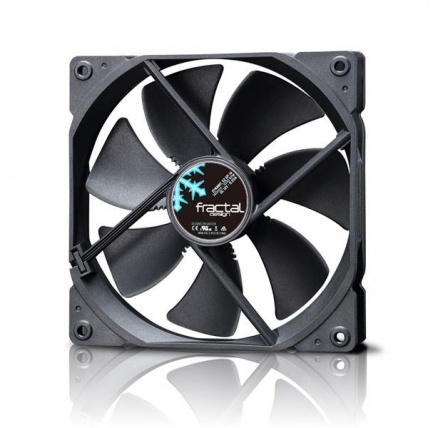

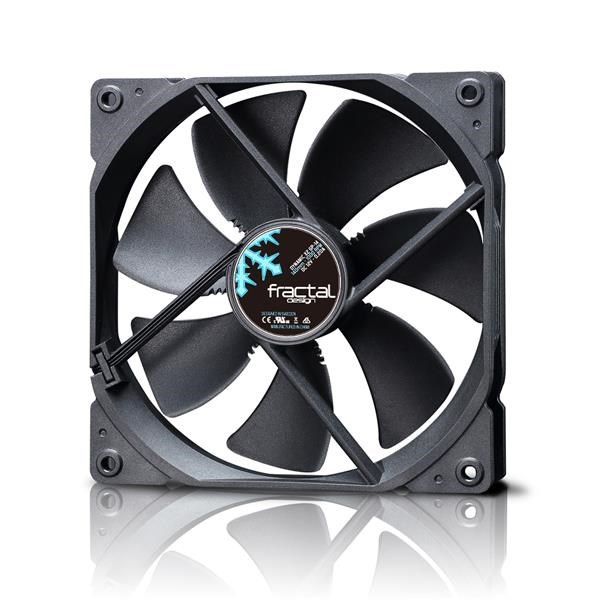

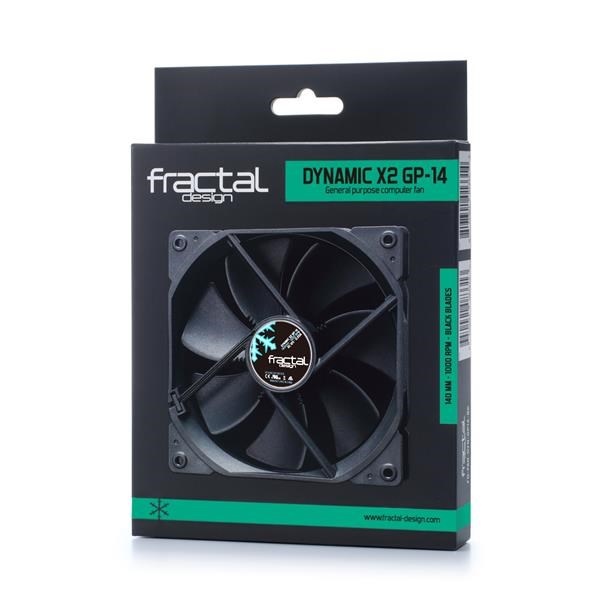

FRACTAL DESIGN ventilátor 140mm Dynamic X2 GP-14, černý

Specifications

Fan

X2 GP-12

X2 GP-14

Size [mm]

120*120*25mm

140*140*25mm

Colors available

White blades, black frame

White blades, black frame

Black blades, black frame

Black blades, black frame

Screw hole pattern

105*105mm

125*125mm

Connector

3-pin fan header

3-pin fan header

Bearing

LLS

LLS

Number of blades

7

7

Rotational speed [RPM]

1200

1000

Acoustical noise [dB (A)]

19.IV

18.IX

Maximum air flow [CFM]

52.3

68.4

Maximum pressure [mm H_2O]

0.88

0.71

Actual input power [W]

I.32

I.32

Maximum rated input current [A]

0.18

0.20

Nominal input voltage [V]

12

12

Minimum startup voltage [V]

4

4

MTBF [hours]

100

100

Unit weight [g]

119

142

Package weight [g]

160

190

Cable length [mm]

500

500

Cable type

Black ribbon cable

Black ribbon cable

Packaging dimensions [mm]

180*122*26

200*142*26

( Including hanging tab)

Packaging dimensions [mm]

147*122*26

167*142*26

(Excluding hanging tab )
