- 80PLUS® Bronze certified efficiency
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included

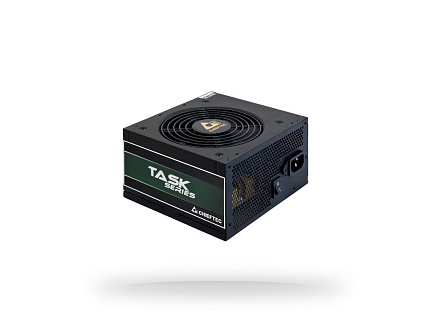

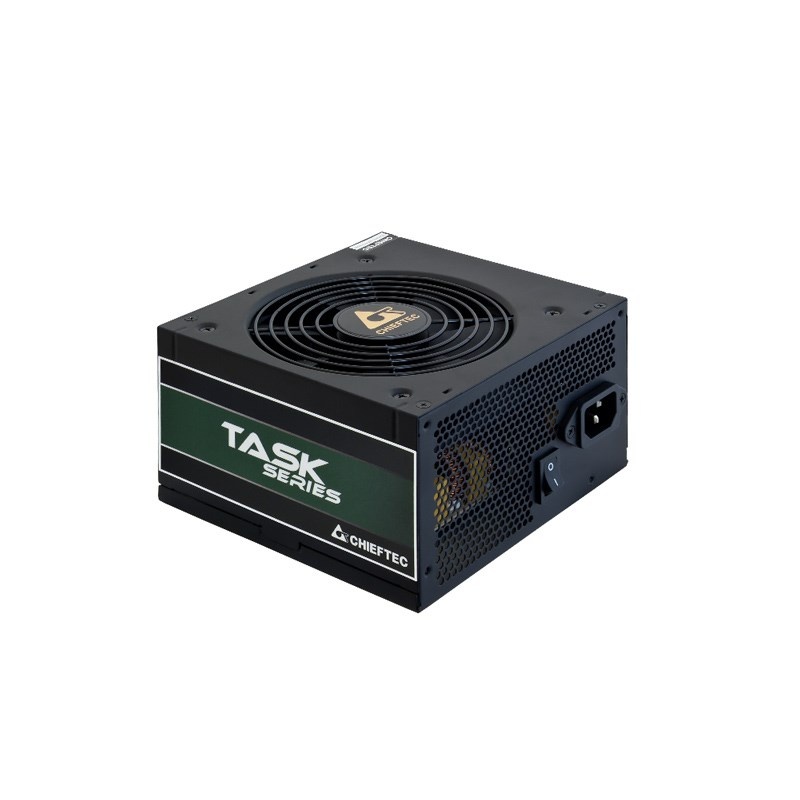

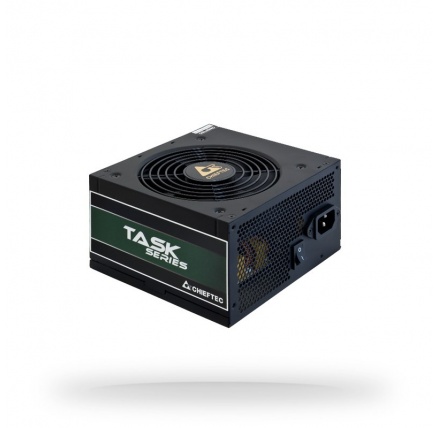

The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.
With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.

Performance

Model	Task 600W
Article no.	TPS-600S
EAN code	0753263076496
Weight (without/with package)	1.67 kg / 2.08 kg
AC Input	100-240V / 9.0A
Frequency	47-63Hz
+5V	17A
+3,3V	19A
+5V & +3,3V combined	110W
+12V 1	552W / 46A
+12V 2	-
+12V 1 & +12V 2 combined	-
P.F.	>0,9
-12V	0,3A / 3,6W
+5VsB	2,5A / 12,5W
Maximum Power	600W

Connectors

24PIN ATX	1
8 PIN EPS (4+4)	1
8 PIN PCIe (6+2)	2
SATA	5
MOLEX	3

Cable length

24PIN ATX	650
8 PIN EPS (4+4)	650
8 PIN PCIe (6+2)	500/150
MOLEX	500/150/150
SATA	500/150
SATA	500/150/150

Features

Specification	ATX 12V 2.3
Form factor	PS II
Efficiency	80 PLUS® Bronze
Dimension (DxWxH)	140 mm x 150 mm x 87 mm
PFC	Active PFC (0.9)

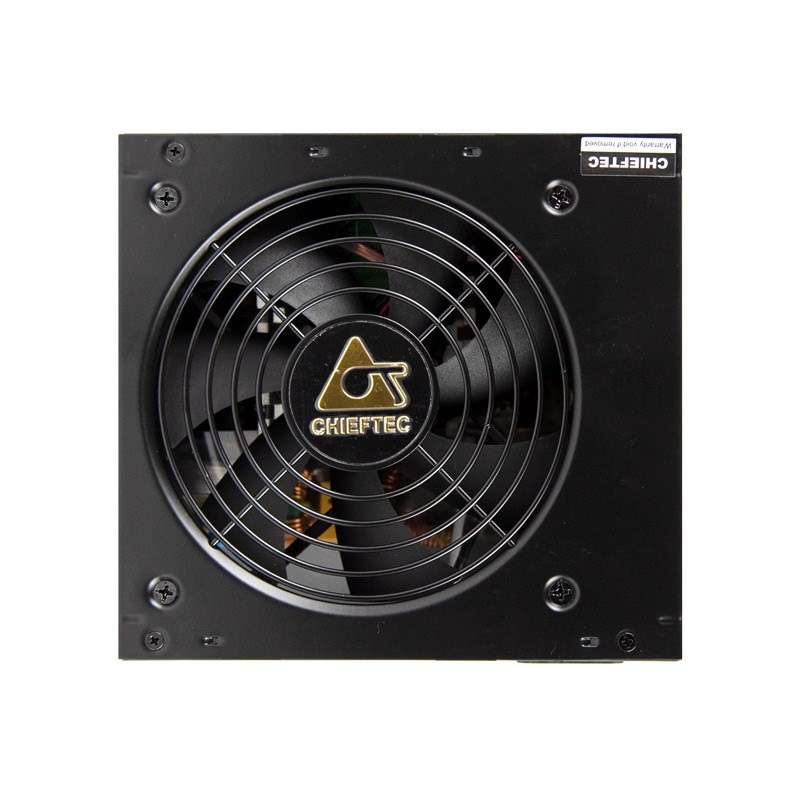

Fan	120mm silent fan
Security	AFC (Automatic Fanspeed Control) OPP (Overload Protection) OTP (Over Temperature Protection) OVP (Overvoltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Undervoltage Protection)
Warranty	24 Months
