- 80 PLUS® Gold certified efficiency

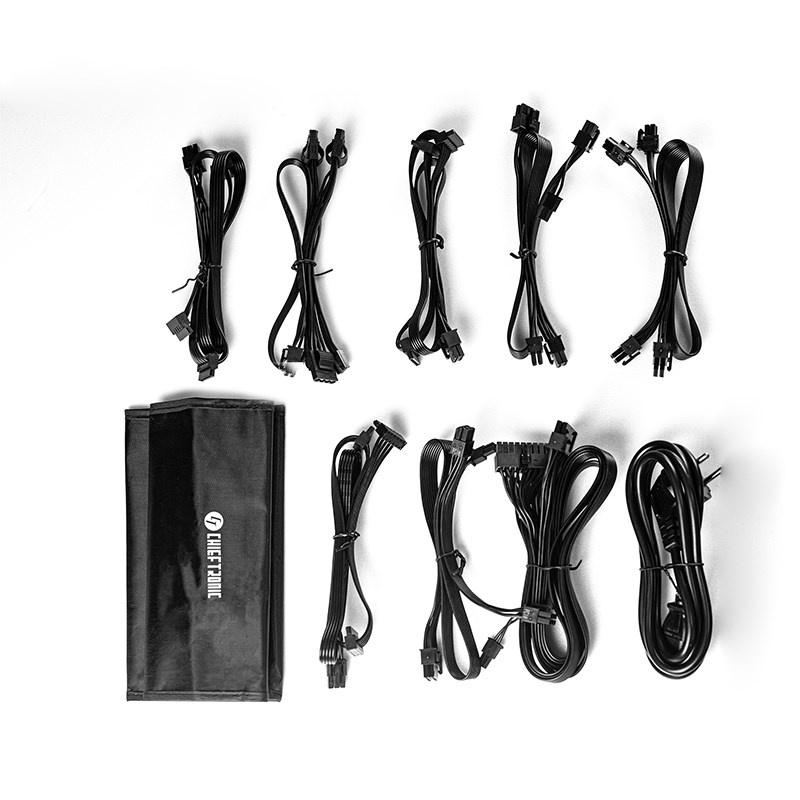

- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.

Performance

Model	PowerUp 850W
Article no.	GPX-850FC
EAN code	0753263077202
Weight (without/with package)	2.4 kg / 2.95 kg

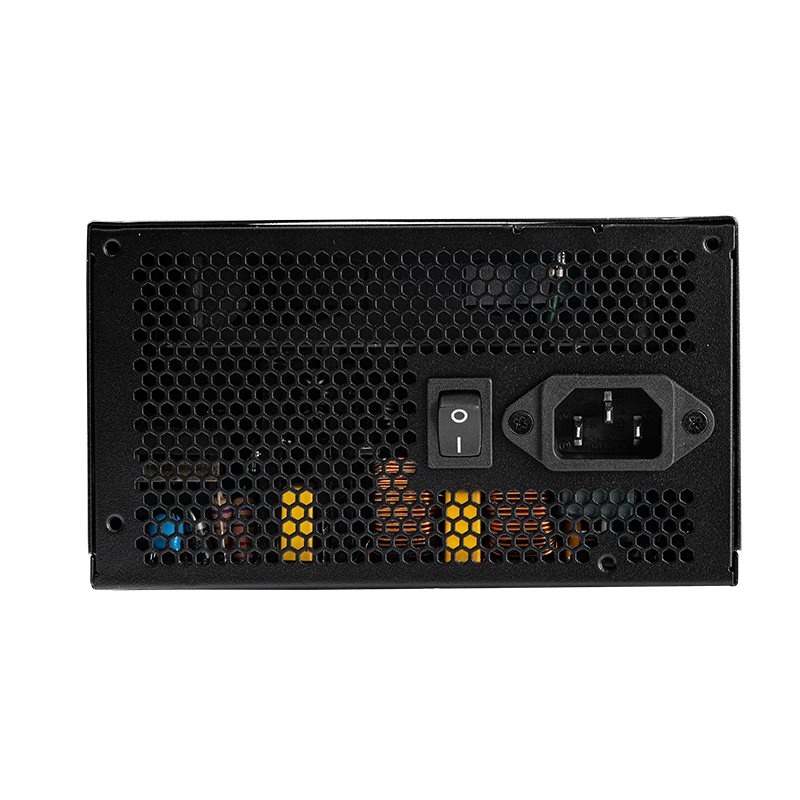

AC Input	100 - 240V / 12.0A
Frequency	47 - 63Hz
+5V	20A
+3,3V	20A
+5V & +3,3V combined	110W
+12V	70.5A/846W
-12V	0.3A / 3.6W
+5VsB	2.5A / 12.5W
Maximum Power	850W

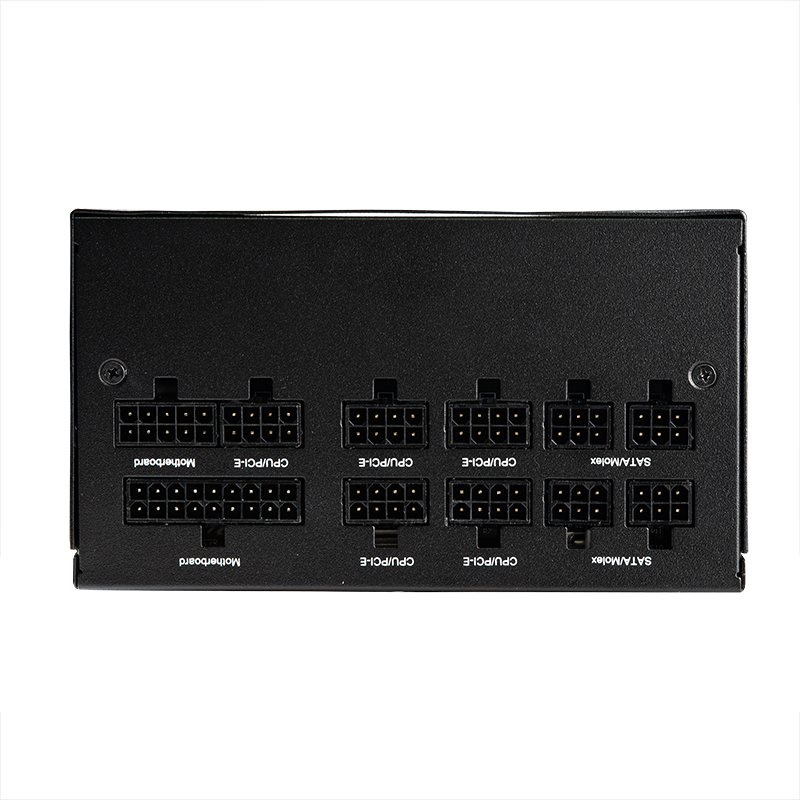

Connectors

20+4PIN ATX	1
8 PIN CPU (4+4)	2
8 PIN PCIe (6+2)	6
SATA	9
MOLEX	3
FLOPPY	1

Cable length

20+4PIN ATX	650
8 PIN CPU (4+4)	650/150
8 PIN PCIe (6+2)	3x 500/150
SATA	3x 500/150/150
MOLEX	500/150/150/150
FLOPPY	Molex

Features

ATX 12V Version	v2.53
Efficiency	80 PLUS Gold
Dimension (DxWxH)	140 mm x 150 mm x 86 mm
PFC	Active PFC

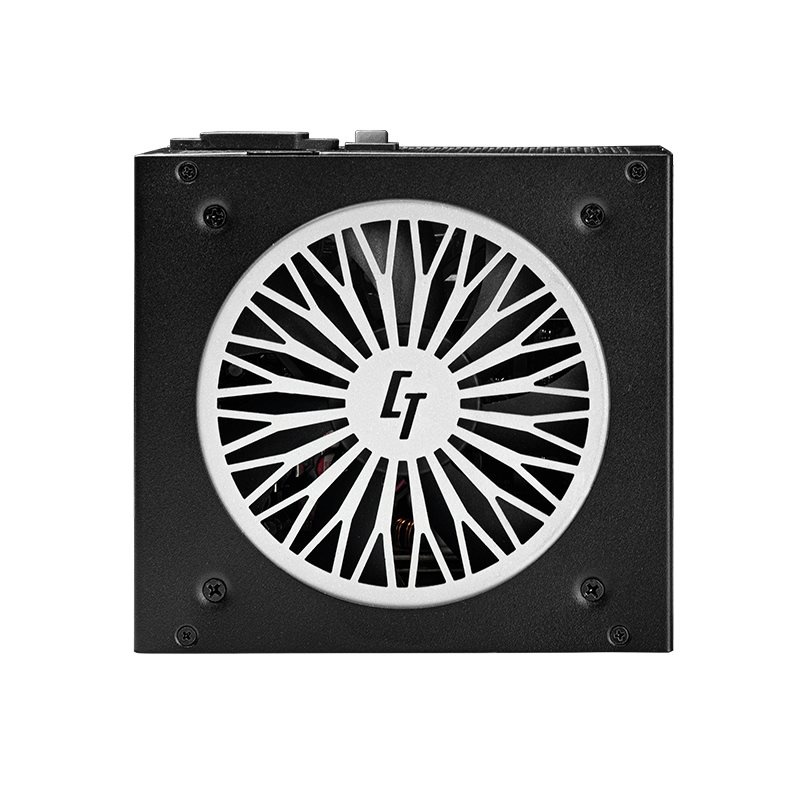

Fan	120mm silent fan
Security	OVP (Over voltage protection) OPP (Over power protection) OCP (Over current protection) SCP (Short-circuit protection) OTP (Over temperature protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) UVP (Undervoltage Protection) No-load operation
Warranty	60 Months
