CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Supports up to AMD 120W CPU
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD X870E
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
Graphics
1 x HDMI™ port
2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 4K@60Hz as specified in DisplayPort 1.4a
VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Specifications vary by CPU types. To ensure compatibility of the device installed, refer to https://www.asus.com/support/download-center/ for supported peripherals.
Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supported)
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied, PCIEX16(G5) runs x8 only.
M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
RAID Support
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Specifications vary by CPU types.
Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7 (Realtek® RTL8922AE)
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4
Wi-Fi features may vary depending on the operating system.
USB
Rear USB (Total 14 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
Audio Features
SupremeFX Shielding Technology
Savitech SV3H712 AMP
Rear optical S/PDIF out port
Premium audio capacitors
Audio cover
The LINE OUT port on the rear panel does not support spatial audio. Use front panel audio jack or USB interface for spatial audio.

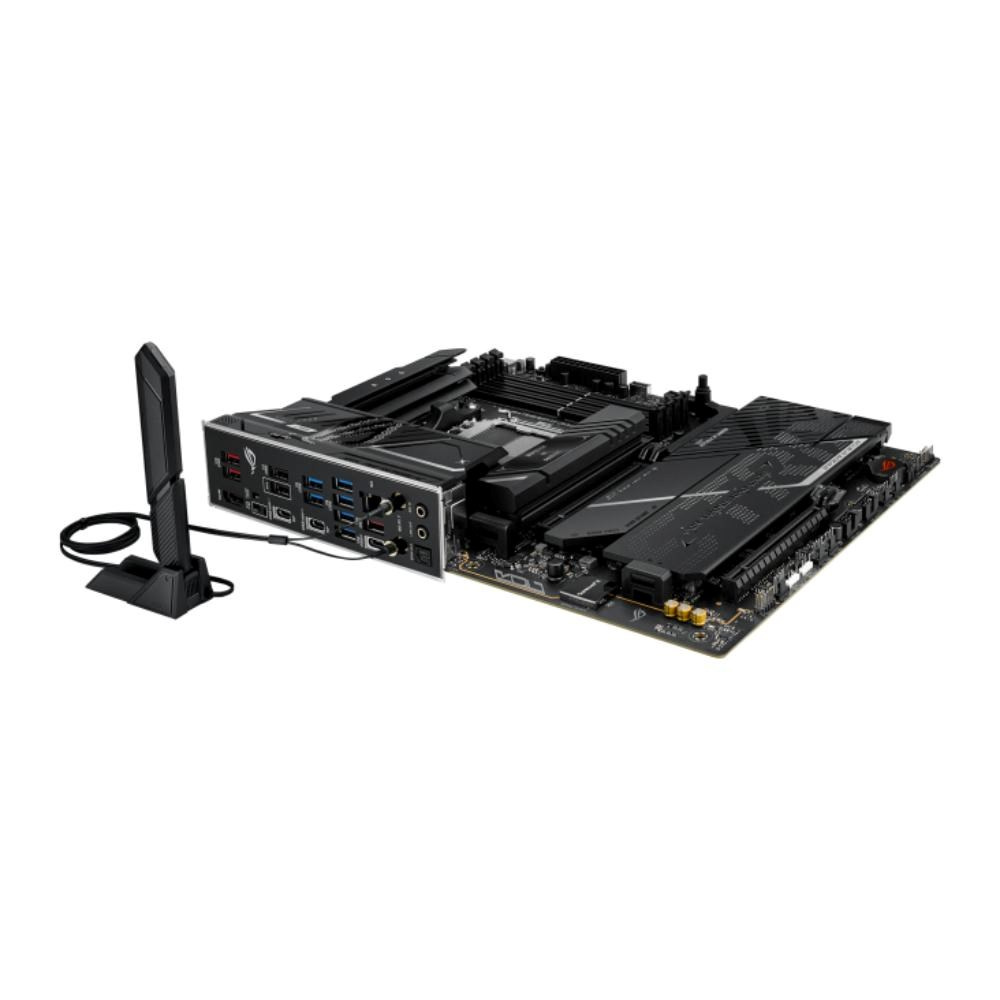

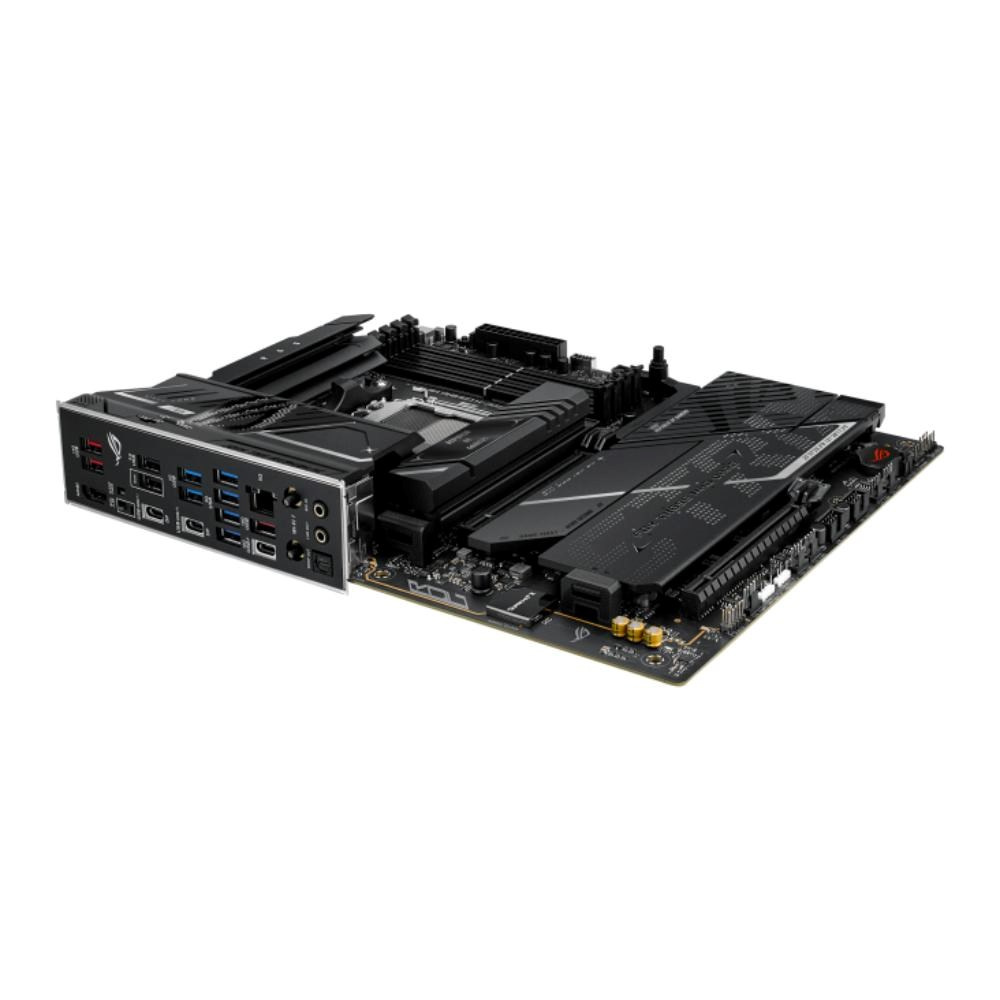

Back Panel I/O Ports
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related:
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related:
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Special Features
Extreme Engine Digi+
5K Black metallic capacitors
ASUS Q-Design
M.2 Q-Latch
M.2 Q-Release
PCIe Slot Q-Release
Q-Antenna
Q-Dashboard
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
ProCool II
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync
Addressable RGB Gen 2 headers
Software Features
ROG Exclusive Software
ROG CPU-Z
Dolby Atmos
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
GameFirst
ASUS AI Advisor
ASUS DriverHub
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables:
2 x SATA 6Gb/s cables
Miscellaneous:
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation:
1 x Quick start guide
Operating System
Windows 11
Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
