Unique Feature

Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker

CPU

- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

Chipset

- AMD A620

Memory

- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 5600+(OC) - Max. capacity of system memory: 64GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio

LAN

- Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H

Slots

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module  - 15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors

RAID

- Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

USB

- 1 x USB 3.2 Gen1 Type-C (Rear) - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front)

Connector

- 1 x Power LED and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)  *CPU_FAN1 supports the fan power up to 1A (12W).  **CHA_FAN1~3/WP support the fan power up to 2A (24W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

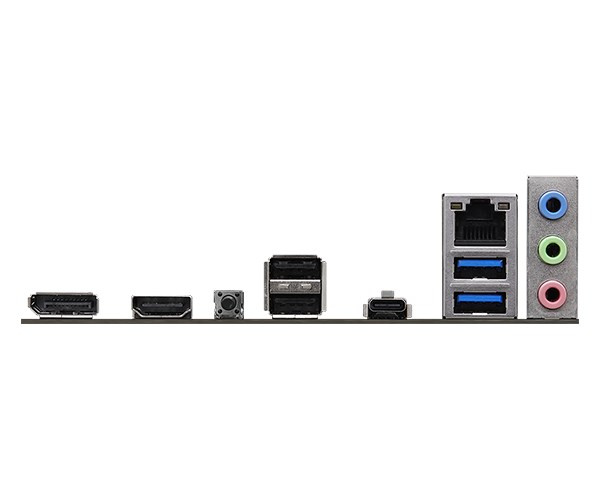

Rear Panel I/O

- 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 2 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash

Accessories

- 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets

Form Factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS

- Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications

- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
