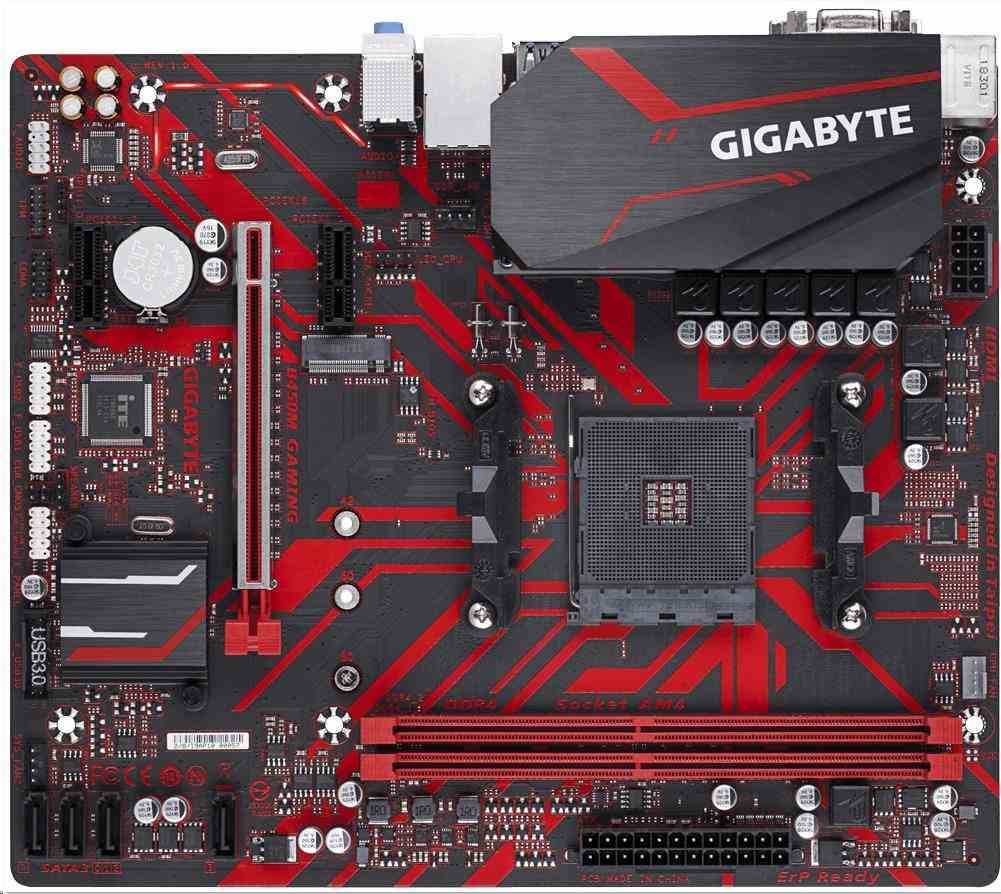

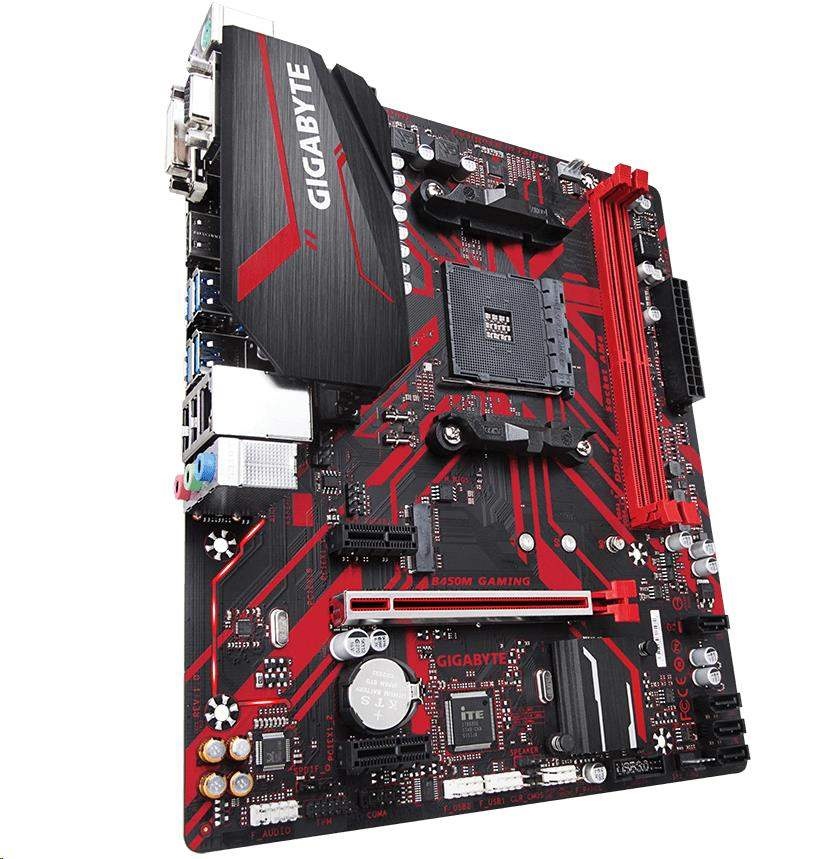

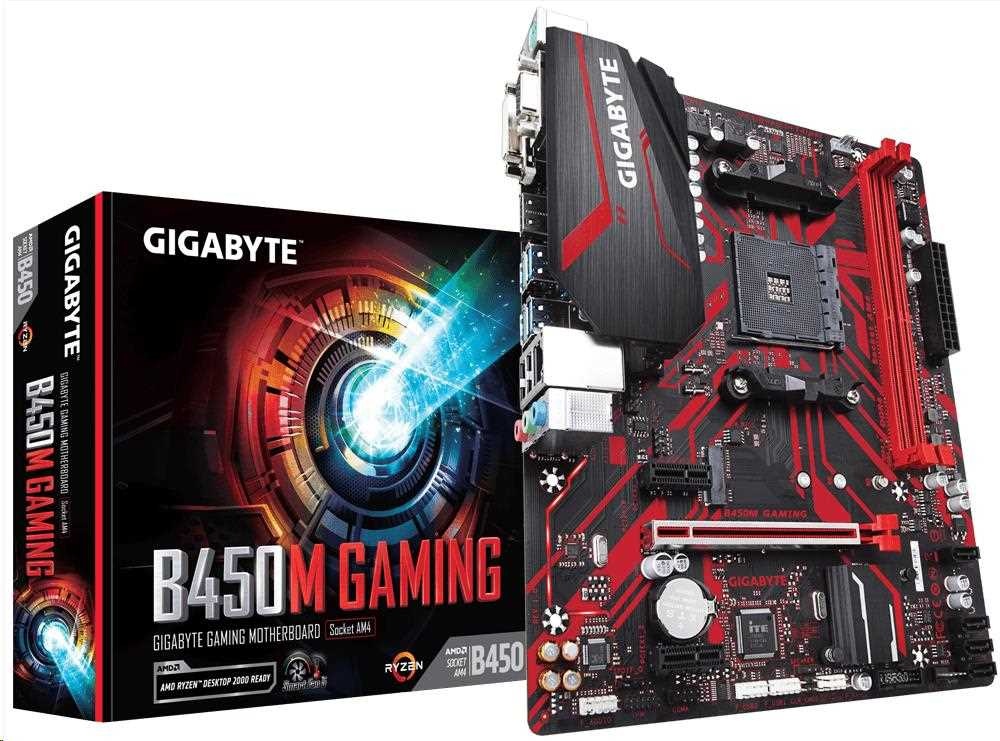

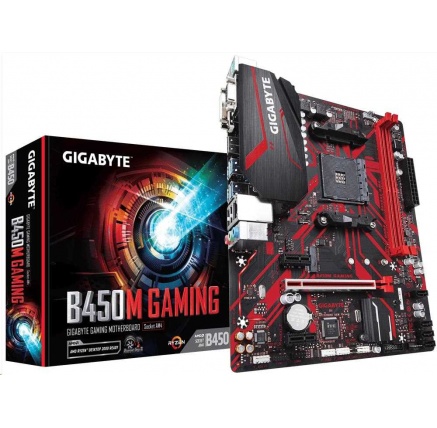

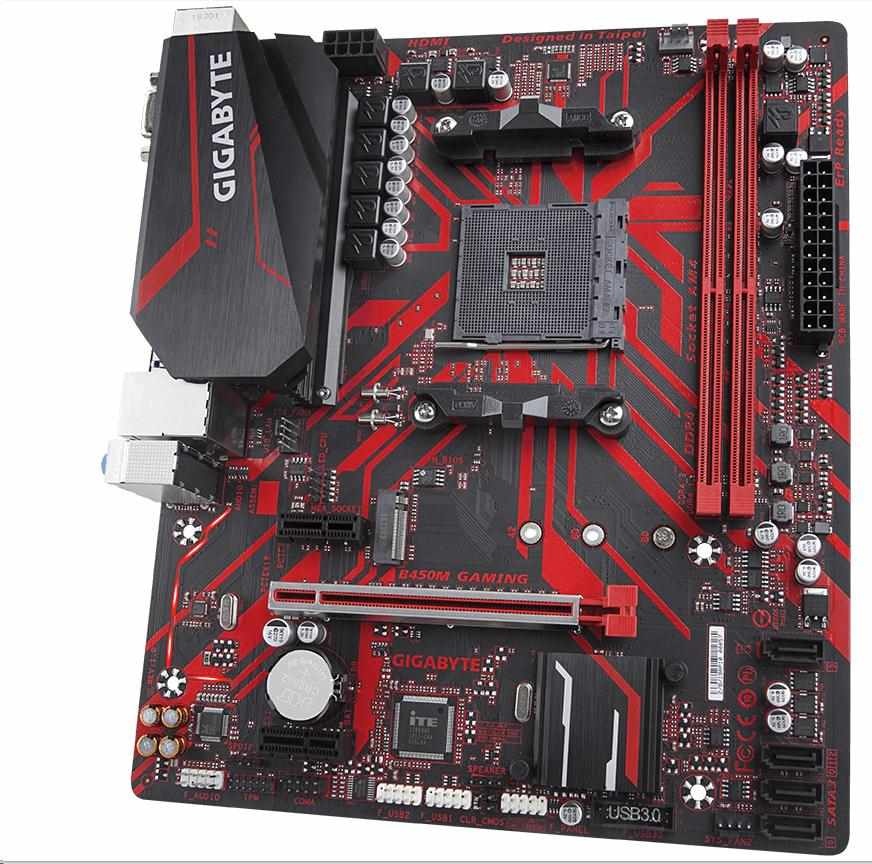

GIGABYTE MB Sc AM4 B450M GAMING, AMD B450, 2xDDR4, VGA, mATX

Kód: 689823Prodejní číslo: B450M GAMING
|
Výrobce: Gigabyte
GIGABYTE MB Sc AM4 B450M GAMING, AMD B450, 2xDDR4, VGA, mATX
+ 1
dalších
2 119 Kč
1 751 Kč bez DPH
Záruka: 36 měsíců (IČ 36 měsíců)
Zboží není v této chvíli skladem. Na aktuální stav dostupnosti se informujte.Není skladem
Pro procesory:AMD; Socket (patice):Socket AM4; Chipset:AMD B450, AMD; Počet paměťových slotů:2; Technologie paměti RAM:DDR4; Formát základní desky:micro ATX; Podpora RAID:1, 10; PCI Express x16:1; PCI Express x1:2; USB 2:6; USB 3:6; USB C:0; SATA 3:4; PCI:0; M.2 slot:1; 3.5mm Jack; LAN:1Gbit/s; VGA:1; DVI:1; HDMI:1; DisplayPort:0; Bezdrátové připojení:bez.
Zeptat seSledovat cenuPorovnat
Popis
Diskuze
Hodnocení
Detailní popis produktu

GIGABYTE MB Sc AM4 B450M GAMING, AMD B450, 2xDDR4, VGA, mATX

B450M GAMING (rev. 1.0)

AMD B450 Gaming Motherboard with Hybrid Digital PWM, GIGABYTE Gaming LAN with Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistors Design

  • Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • HDMI, DVI-D, D-sub Ports for Multiple Display
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB Fusion supports RGB LED Strips in 7-Colors
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers
  • APP Center Including EasyTune™ and Cloud Station™ Utilities


TECHNICAL SPECIFICATIONS

CPU
  1. AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
(Please refer "CPU Support List" for more information.)
Chipset
  1. AMD B450
Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2933/2667/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.2.
    * Actual support may vary by CPU.
Maximum shared memory of 2 GB
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slot
    (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
    * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor.
  2. 4 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
USB Chipset:
  1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
  1. 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x M.2 Socket 3 connector
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x CPU cooler LED strip/RGB LED strip header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
  14. 1 x speaker header
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x chassis intrusion header

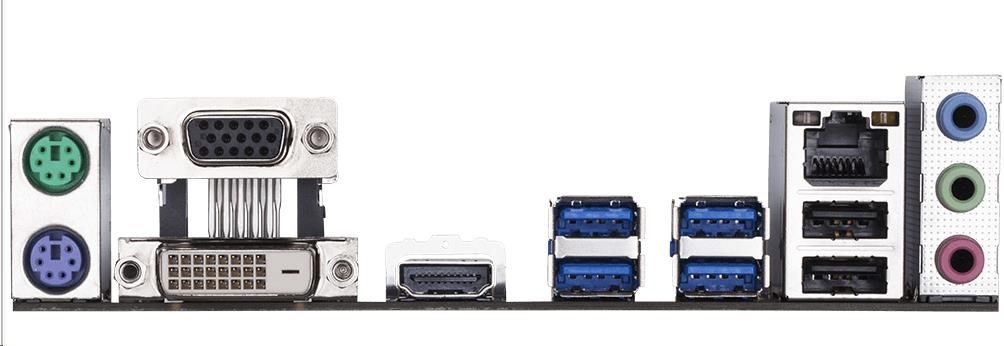

Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 1 x HDMI port
  6. 4 x USB 3.1 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    Smart Survey
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 20.5cm
Note
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

.
Parametry produktu
COM portAno
LPT portNe
Socket (patice)Socket AM4
Formát základní deskymicro ATX
Integrovaná grafická kartaAno (CPU)
ChipsetAMD
ChipsetAMD B450
Technologie paměti RAMDDR4
PCI Express x161
Integrovaná LAN karta1
Podpora RAID
Podpora RAID1
Podpora RAID10
3.5mm JackAno
Bezdrátové připojeníbez
Pro procesoryAMD
Počet paměťových slotů2
DisplayPort0
TPMAno
USB 26
USB 36
PCI0
M.2 slot1
SATA 34
VGA1
DVI1
HDMI1
Led HeaderAno
PCI Express x12
USB C0
LAN1Gbit/s
